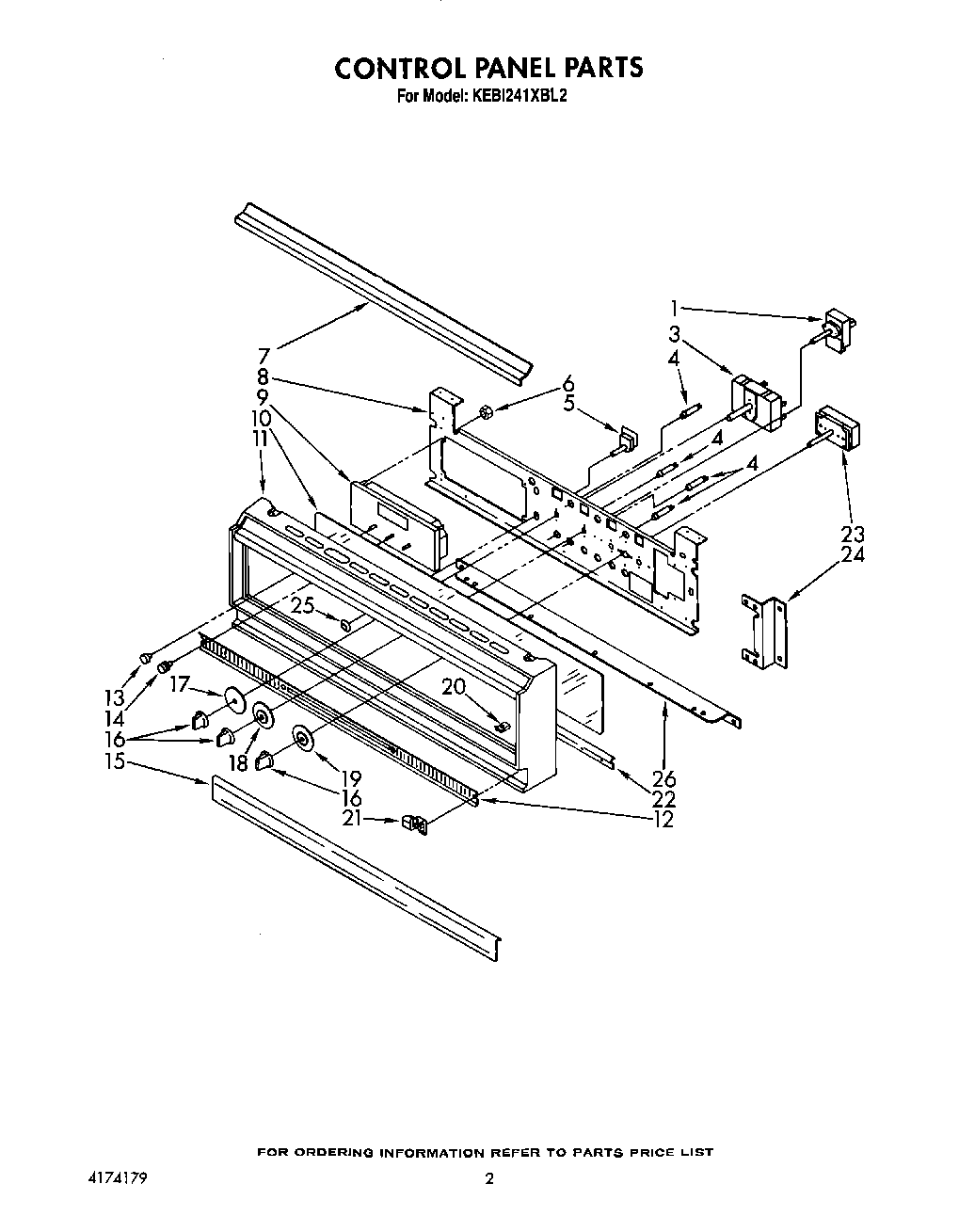

KEBI241XBL2 02 – CONTROL PANEL, LIT/OPTIONAL

KEBI241XBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBI241XBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
WPL LIT3185203
WPL LIT3181350
WPL LIT3178195
1Thermostat, upper
3WP486579 Whirlpool Air Conditioner Screw
3Switch, Selector
4Indicator Light, Oven (Lower Oven)
5Switch, Oven Light
6Nut, Timer (4)
7Insert, Top
8Bracket, Control
9Timer, Electronic
10Glass, Control Panel
11Frame, Control Panel
12Insert, Vent
13Knob, Timer
14Knob, Timer (2)
15Door, Latch Handle
16Knob, Control
17Disc, Selector
18Disc, Thermostat (Self Clean)
19Disc, Thermostat (Standard Clean)
20nut (3)
21Door, Latch Handle (Screw (2))
21Hinge, Door (2)
22Screw (6)
22Retainer
23Screw (2)
23Thermostat, Lower
24Bracket, Control Panel
25Bezel, Oven Light Switch
26Support, Frame
26WP3177991 Whirlpool Screw
