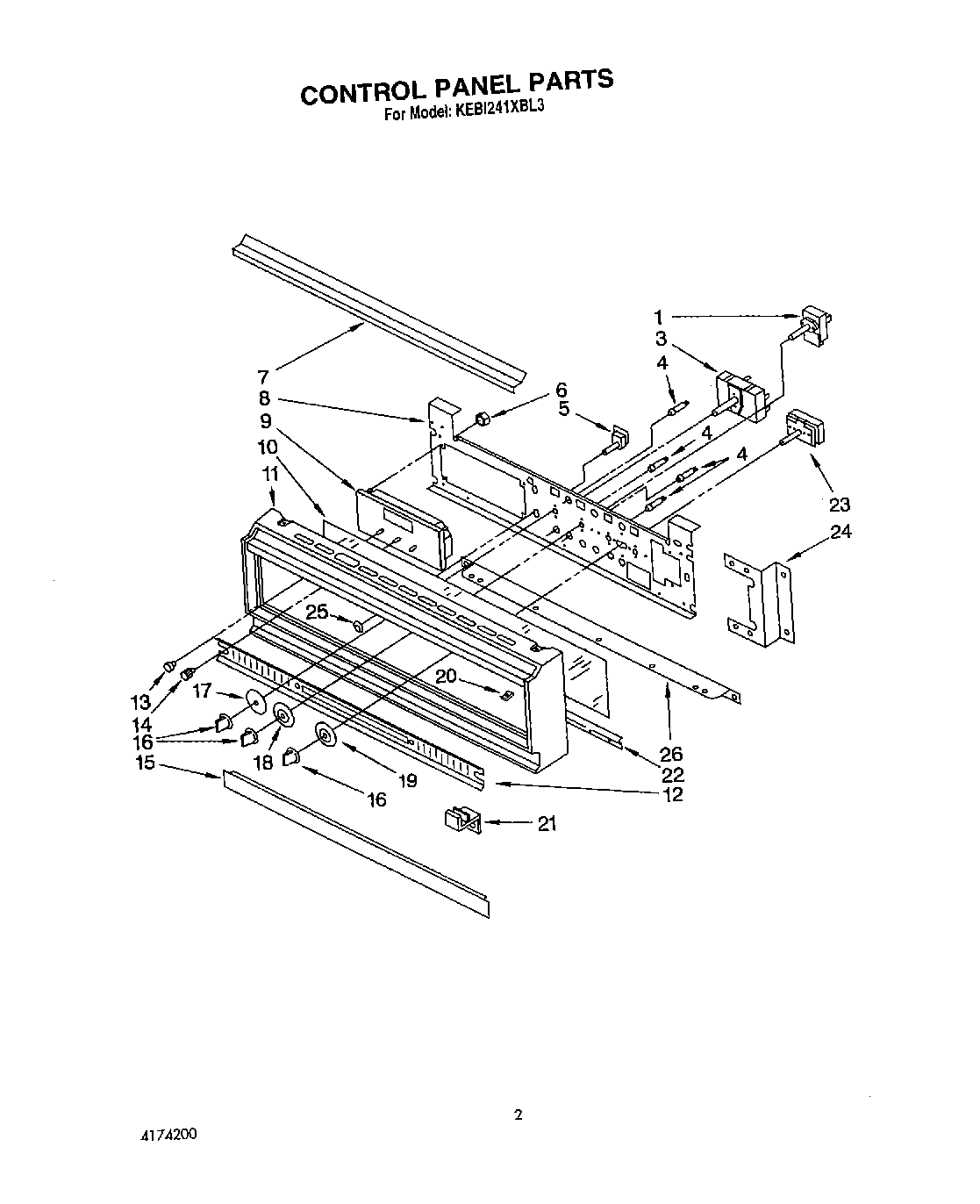

KEBI241XBL3 02 – CONTROL PANEL, LIT/OPTIONAL

KEBI241XBL3 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBI241XBL3 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL 3171507
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPL LIT3178195
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	WPL LIT4174200
	WPL LIT3185203
	WPL LIT3181350
	Rotisserie Kit
	WPL 832985
	WPL 591014
	WPL 350806
	1
	Wire (14 Ga. 200 c Brown)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72017 Whirlpool Appliance Touch-Up Paint White
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	Paint, Spray (13 Oz.) (Platinum)
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Black 14 Ga.)
	Enamal, Toast (1 Qt. Uncut)
	Wire, 25` Roll (Red 14 Ga.)
	WPL 799832
	350942 Whirlpool Spray Paint
	WPL 72112
	Platinum (Uncut)
1	Thermostat, upper
3	Switch, Selector
3	WP486579 Whirlpool Air Conditioner Screw
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel
11	Frame, Control Panel
12	Insert, Vent
13	Knob, Timer
14	Knob, Timer (2)
15	Door, Latch Handle
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
19	Disc, Thermostat (Standard Clean)
20	nut (3)
21	Door, Latch Handle (Screw (2))
21	Hinge, Door (2)
22	Retainer
22	Screw (6)
23	Screw (2)
23	Thermostat, Lower
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	WP3177991 Whirlpool Screw
26	Support, Frame
