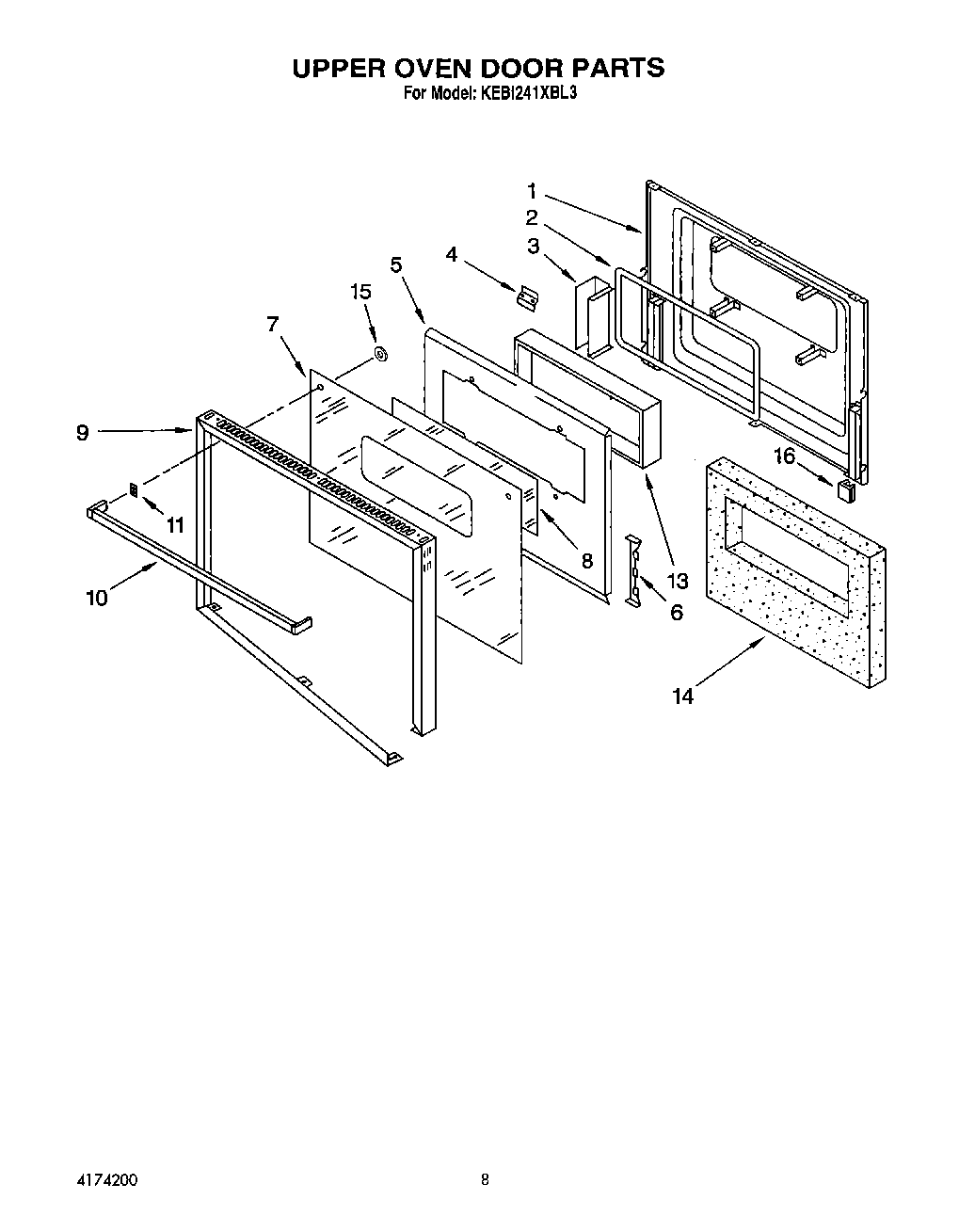

KEBI241XBL3 06 – UPPER OVEN DOOR

KEBI241XBL3 06 – UPPER OVEN DOOR

Written by

in

KEBI241XBL3 06 – UPPER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Retainer, Insulation
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door
10Screw
11Spacer (2)
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
