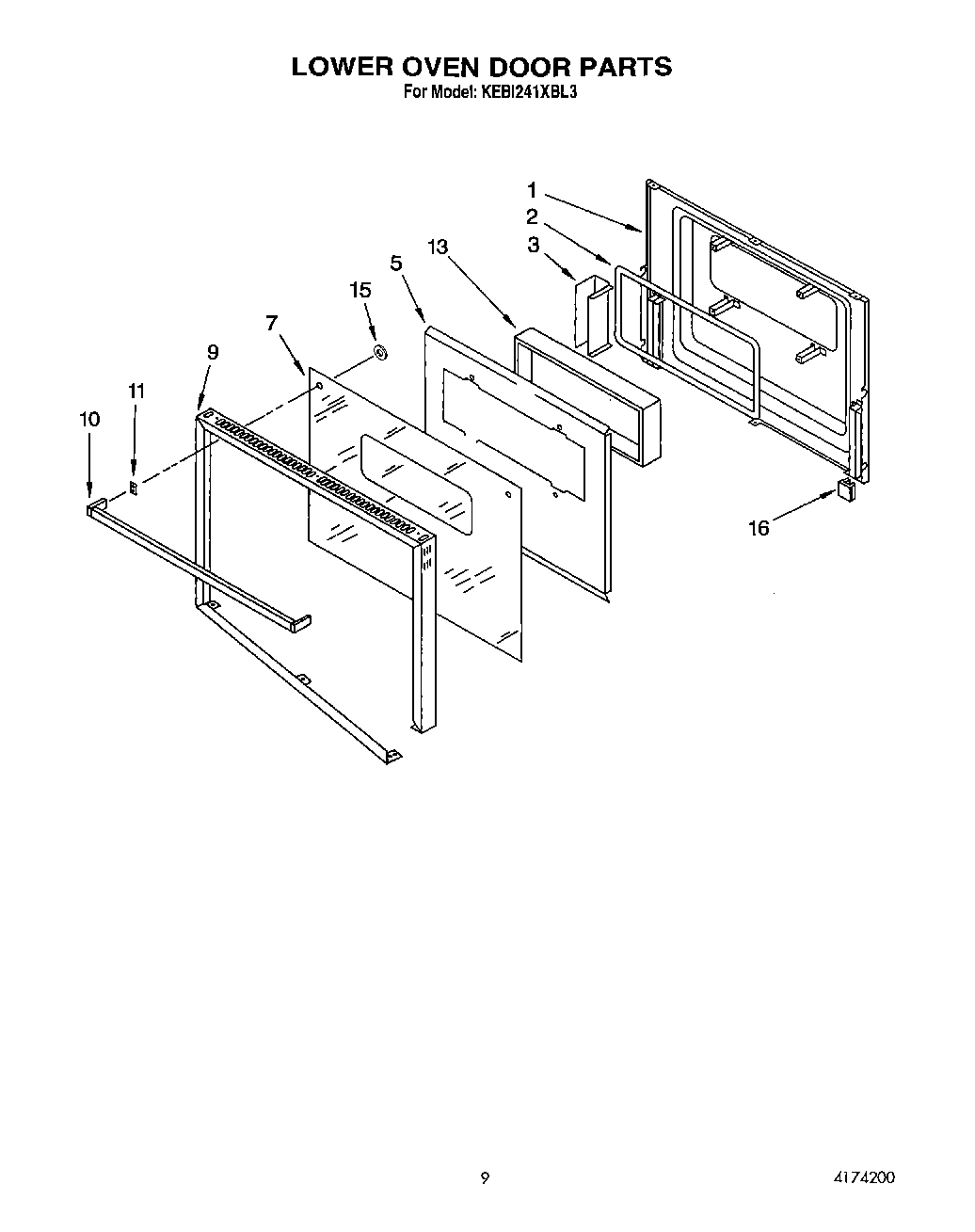

KEBI241XBL3 07 – LOWER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
5WP90767 Whirlpool Screw
5Retainer, Insulation
7Glass, Door
9Frame, Door
10Handle, Door
10Screw
11Spacer (2)
13Window Pack
15Bushing, Door Handle
16Bumper, Door Glass
