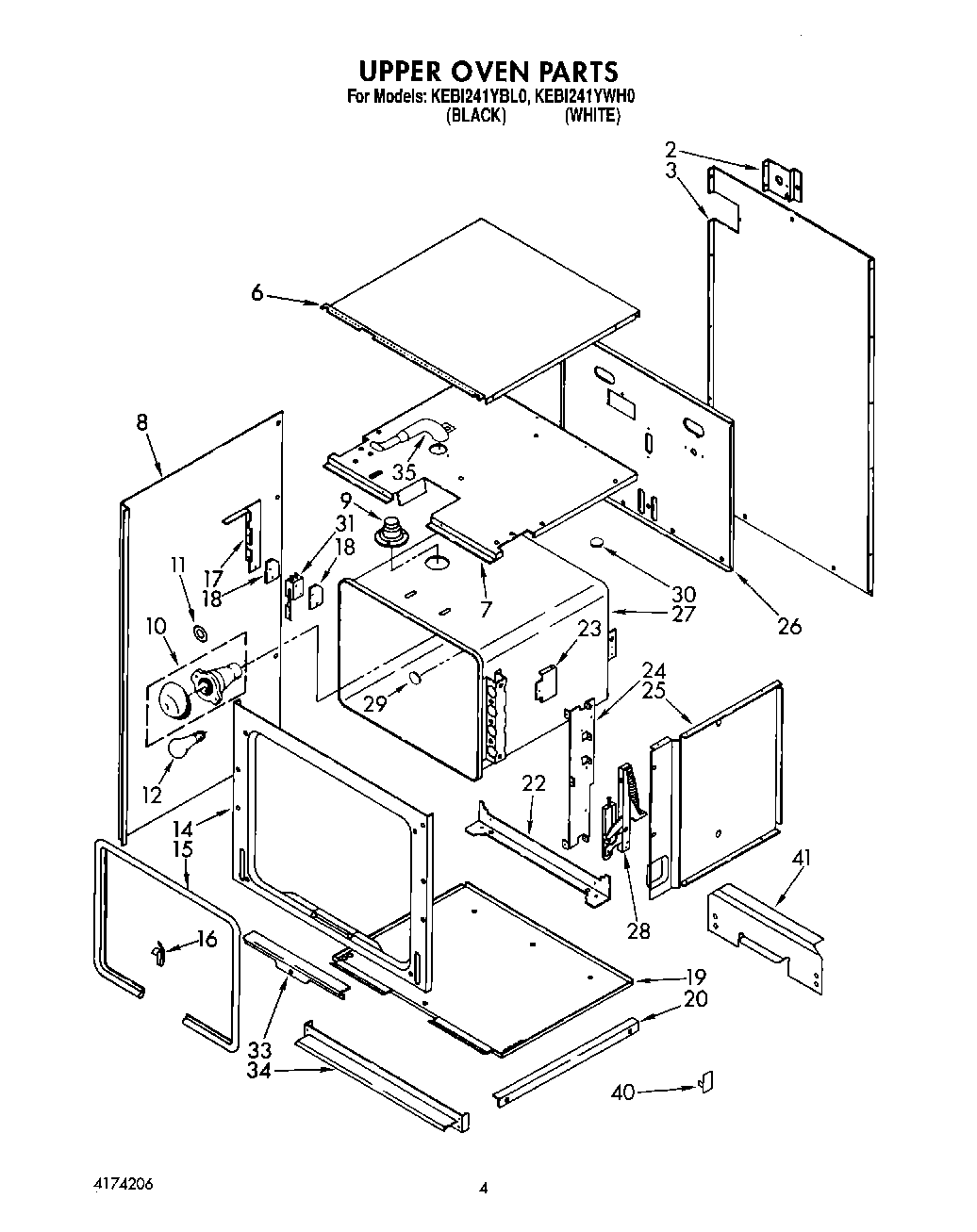

KEBI241YBL0 03 – UPPER OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	Screw
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
26	Screw
27	Liner, Oven (Black)
28	Hinge, Door
28	Screw (4)
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Switch, Door
31	Nut (2)
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim
34	Vent, Middle Trim (White)
35	Tube, Vent
40	Insert, Middle Vent Trim
40	Screw
41	Wire (14 Ga. 150 c Orange)
41	WPL 832985
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Blue)
41	WPL 3171507
41	WPL 591014
41	WPL 350806
41	WPL 3182584
41	Wire (14 Ga. 150 c Yellow)
41	Wire (12 Ga. 150 c Black)
41	18 Ga. 80~c Rating (Red)
41	WP261869 Whirlpool Microwave Paint
41	Wire (14 Ga. 200 c Brown)
41	1
41	Wire (14 Ga. 150 c Green)
41	WPL 3177870
41	Insulation, Wrap
41	242831 Whirlpool Oven Wire
41	Toast
41	Golden Harvest
41	72113 Whirlpool Touch-Up Paint
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	Almond (Uncut)
41	Leveler (Thinner)
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	72017 Whirlpool Appliance Touch-Up Paint White
41	350956 Whirlpool Spray Assembly
41	Paint, Spray (13 Oz.) (Platinum)
41	Enamal, Toast (1 Qt. Uncut)
41	Platinum (Uncut)
41	Golden Harvest (Uncut)
41	WP482338 Whirlpool Refrigerator Adhesive
41	72032 Whirlpool Touch Up Paint Black
41	285006 Whirlpool Spray
41	Wire, 25“ Roll (White 14 GA.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25` Roll (Black 14 Ga.)
41	WPL 799832
41	350942 Whirlpool Spray Paint
41	WPL 72112
41	350930 Whirlpool White Spray Paint
