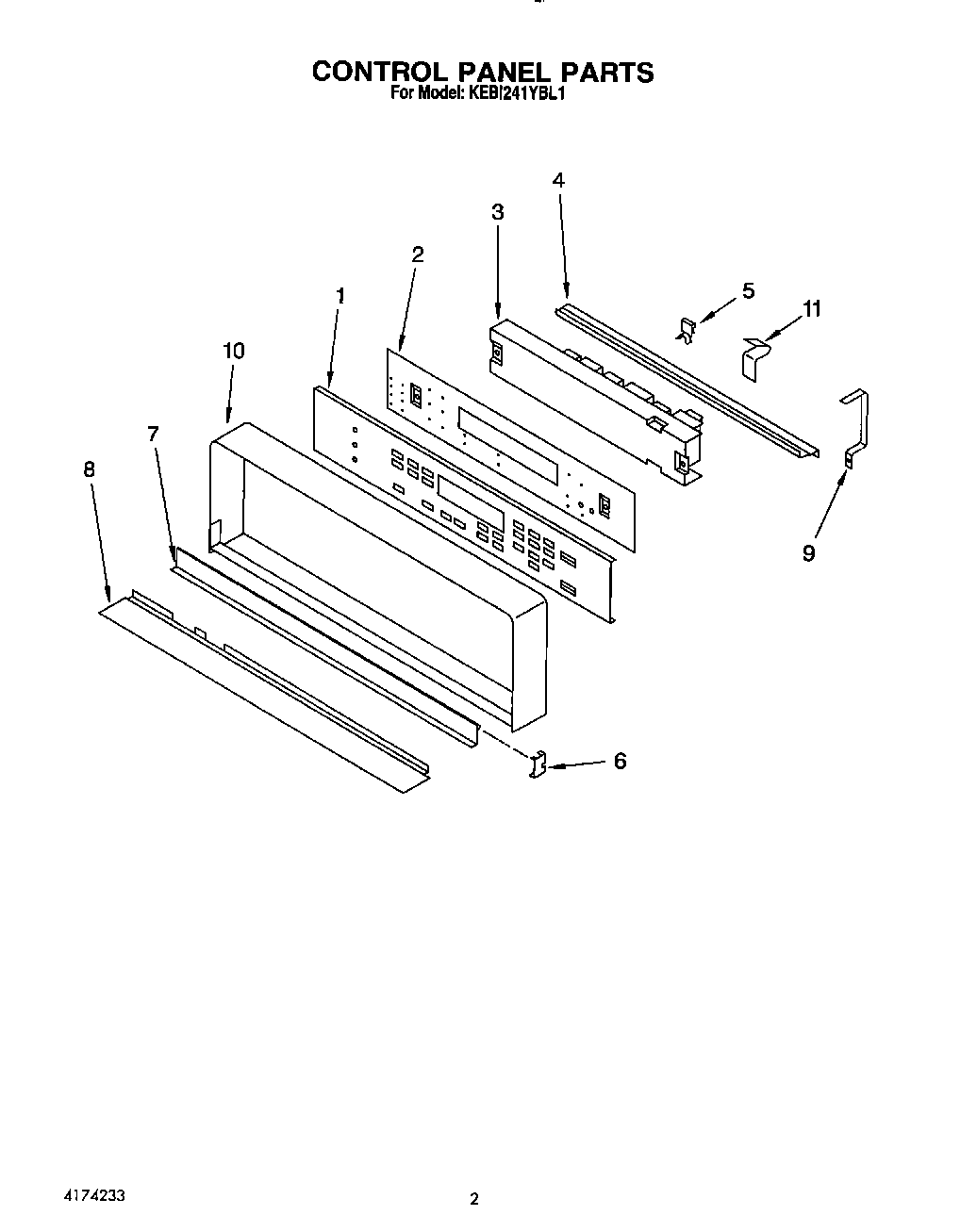

KEBI241YBL1 02 – CONTROL PANEL, LIT/OPTIONAL

KEBI241YBL1 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBI241YBL1 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Tech Sheet
Installation Instructions
WPL LIT3182134
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Screw (3)
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (Screw (2))
8WP90767 Whirlpool Screw
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
