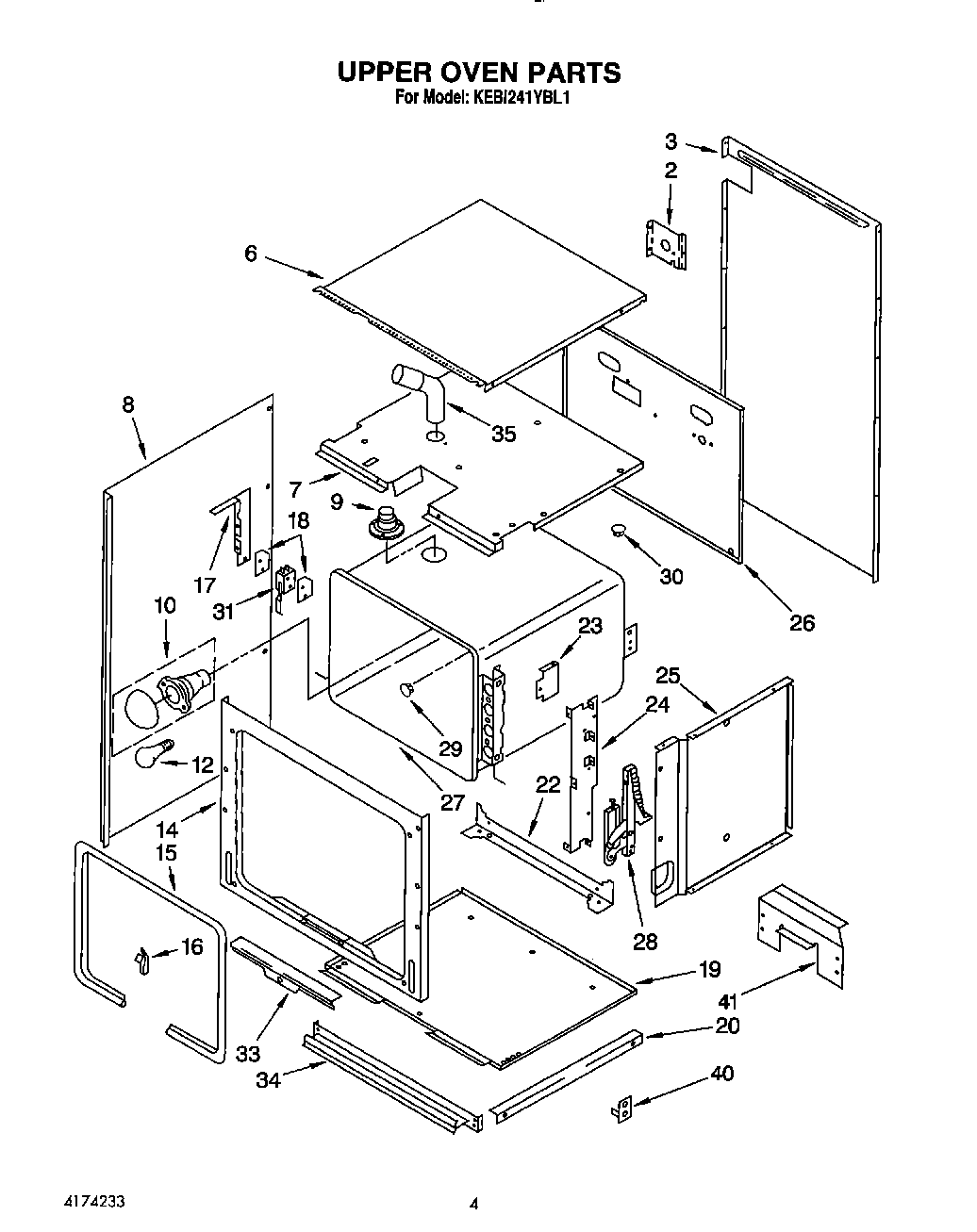

KEBI241YBL1 04 – UPPER OVEN, OPTIONAL

KEBI241YBL1 04 – UPPER OVEN, OPTIONAL

Written by

in

KEBI241YBL1 04 – UPPER OVEN, OPTIONAL

Products

PositionProduct
2Bracket, Conduit
3Cabinet, Back
6Cabinet, Top
7Module, Top
8Side, Cabinet (R.H. & L.H.)
9Tube, Vent
9Screw (3)
10W11594027 Whirlpool Range Oven Light Socket
10Screw
12RANGE ONLY 40W 120V APPL BULB
14Frame, Front
15Seal, Door
16Clip, Oven Seal
17Bracket, Switch
18Insulator, Switch
19Bottom, Modual
20Rail, Support (2)
22Support, Oven
23Shield, Radiation
24Screw (6)
24Bracket, Hinge
25Side, Module (R.H. & L.H.)
26WP90767 Whirlpool Screw
26Back, Module
27Liner, Oven
28Screw (4)
28Hinge, Door
29Button, Plug
30Button, Plug
31Screw (2)
31Switch, Door
31Nut (2)
33Retainer, Seal
33Screw (4)
34Vent, Lower Trim (Screw (4))
34Vent, Lower Trim (Screw (2))
34Vent, Middle Trim
35Tube, Vent
40Screw
40Insert, Middle Vent Trim
41WPL 3171507
41Wire (14 Ga. 150 c Green)
41Wire (14 Ga. 150 c Yellow)
41Wire (12 Ga. 150 c Black)
41WP261869 Whirlpool Microwave Paint
4118 Ga. 80~c Rating (Red)
41Wire (14 Ga. 150 c Blue)
41Wire (14 Ga. 200 c Brown)
411
41WPL 3177870
41WPL 3182584
41WPL 350806
41Wire (14 Ga. 150 c Brown)
41WPL 591014
41Insulation, Wrap
41WPL 832985
41Wire (14 Ga. 150 c Orange)
41242831 Whirlpool Oven Wire
41Golden Harvest
41Toast
41Golden Harvest (Uncut)
4172113 Whirlpool Touch-Up Paint
4172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41Almond (Uncut)
41Leveler (Thinner)
41WP72107 Whirlpool Touchup
41799344 Whirlpool Refrigerator Paint
4172017 Whirlpool Appliance Touch-Up Paint White
41350956 Whirlpool Spray Assembly
41Paint, Spray (13 Oz.) (Platinum)
41Enamal, Toast (1 Qt. Uncut)
41WP482338 Whirlpool Refrigerator Adhesive
4172032 Whirlpool Touch Up Paint Black
41285006 Whirlpool Spray
41Wire, 25“ Roll (White 14 GA.)
41Wire, 25` Roll (Red 14 Ga.)
41Wire, 25` Roll (Black 14 Ga.)
41WPL 799832
41350942 Whirlpool Spray Paint
41WPL 72112
41Platinum (Uncut)
41350930 Whirlpool White Spray Paint
