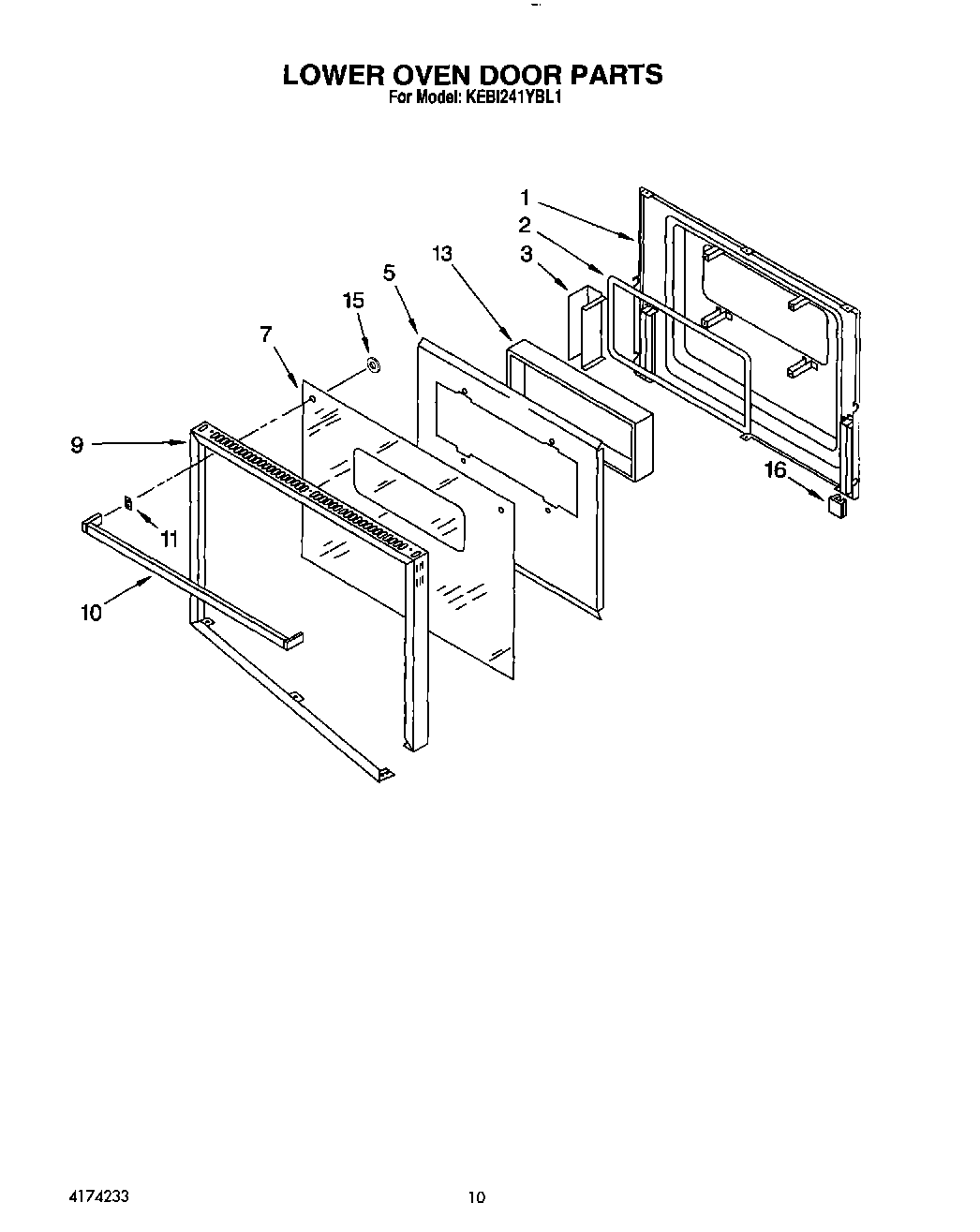

KEBI241YBL1 07 – LOWER OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
5	WP90767 Whirlpool Screw
5	Retainer, Insulation
7	Glass, Door
9	Frame, Door
10	Screw
10	Handle, Door (Black Model)
11	Spacer, Door Handle
13	Window Pack
15	Bushing, Door Handle
16	Bumper, Door Glass
