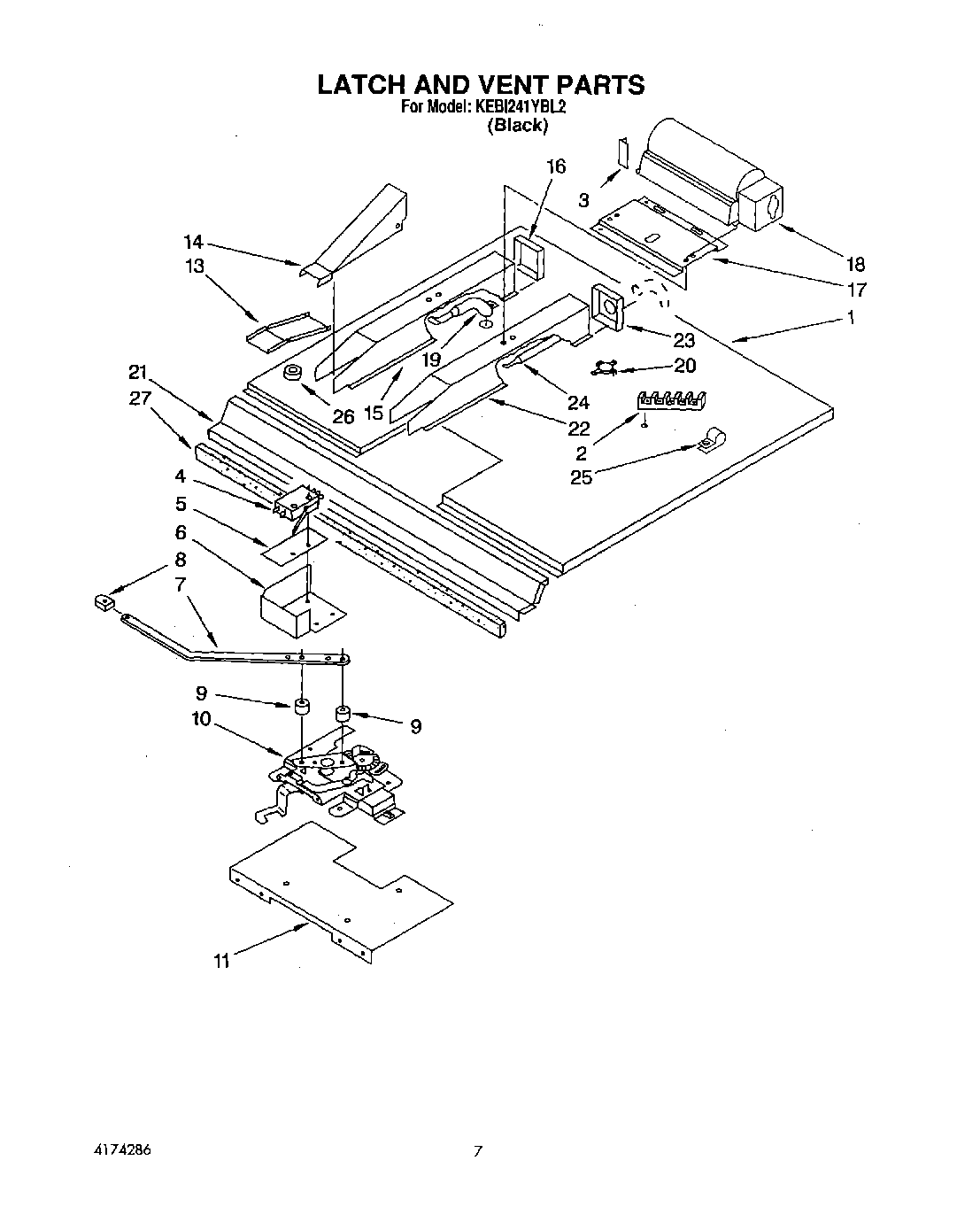

KEBI241YBL2 05 – LATCH AND VENT

Products

Position	Product
1	Module, Top
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
3	Baffle-Blower
3	Screw
4	Switch, latch
4	Screw
4	Screw,
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
8	Knob, Latch Handle
8	Screw
9	Screw (2)
9	Spacer, Latch Handle
10	Latch, Mechanism
11	Plate, Mounting
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Box, Vent
16	End, Vent Box
17	Bracket, Mounting
18	Blower, fan
19	Tube, Vent
20	SPST Thermostat
21	Shield, Heat
21	WP3177991 Whirlpool Screw
22	Screw
22	Box, Vent
22	Screw, 8-18 X 3/4 (4)
23	End, Box Vent
24	Tube, Vent Lower Oven
25	Screw
25	Clamp, Tube
26	Bushing
27	Seal, foam
