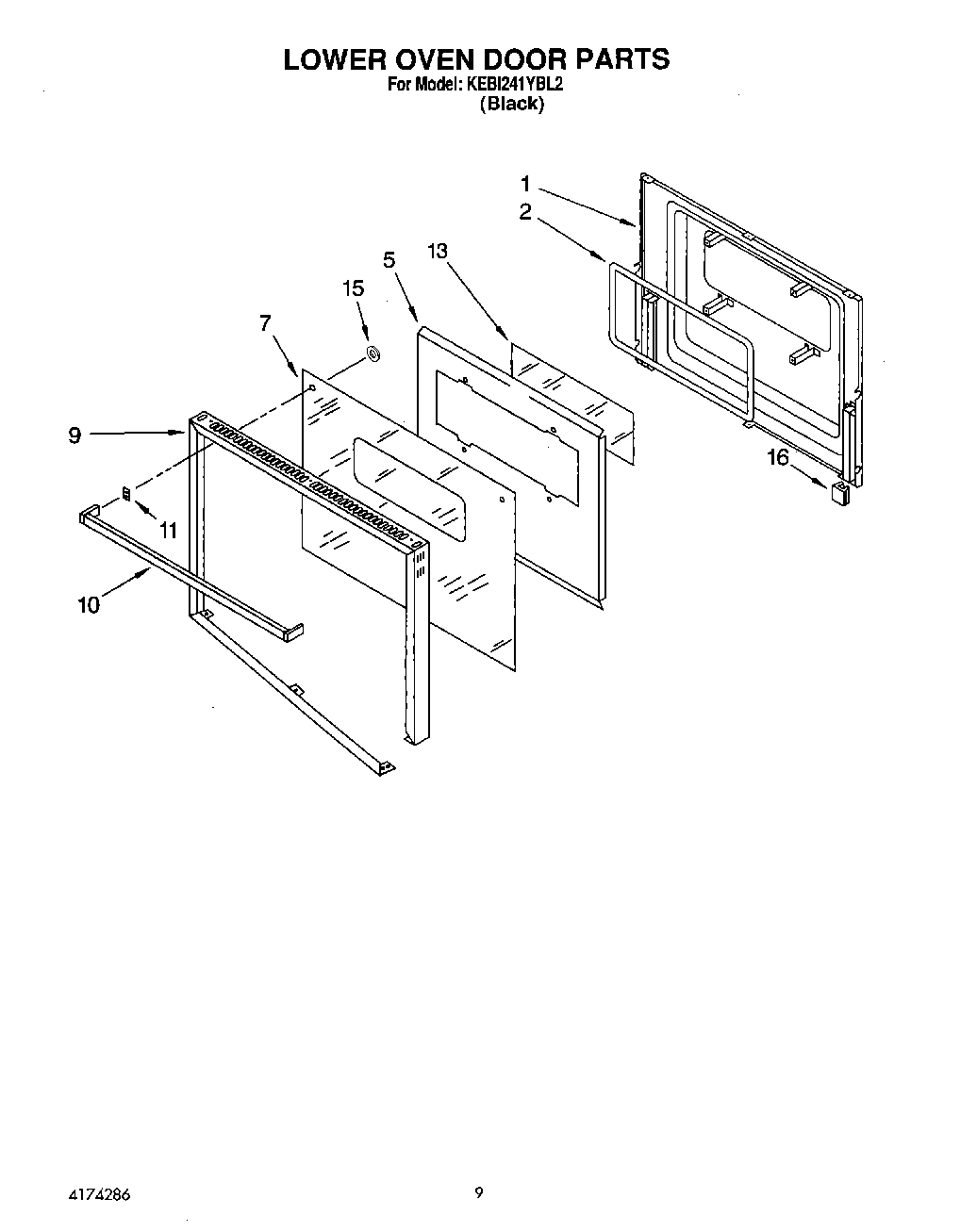

KEBI241YBL2 06 – LOWER OVEN DOOR

KEBI241YBL2 06 – LOWER OVEN DOOR

Written by

in

KEBI241YBL2 06 – LOWER OVEN DOOR

Products

PositionProduct
1Vent, Lower Trim (Screw (2))
1Liner, Door
1Screw, Black (2)
2Seal, Window
5Retainer, Insulation
5Screw
7Glass, Door (Black Model)
9Frame, Door
10Screw
10Handle, Door (Black Model)
11Spacer, Door Handle
13Glass, Clear
15Bushing, Door Handle
16Bumper, Door Glass
