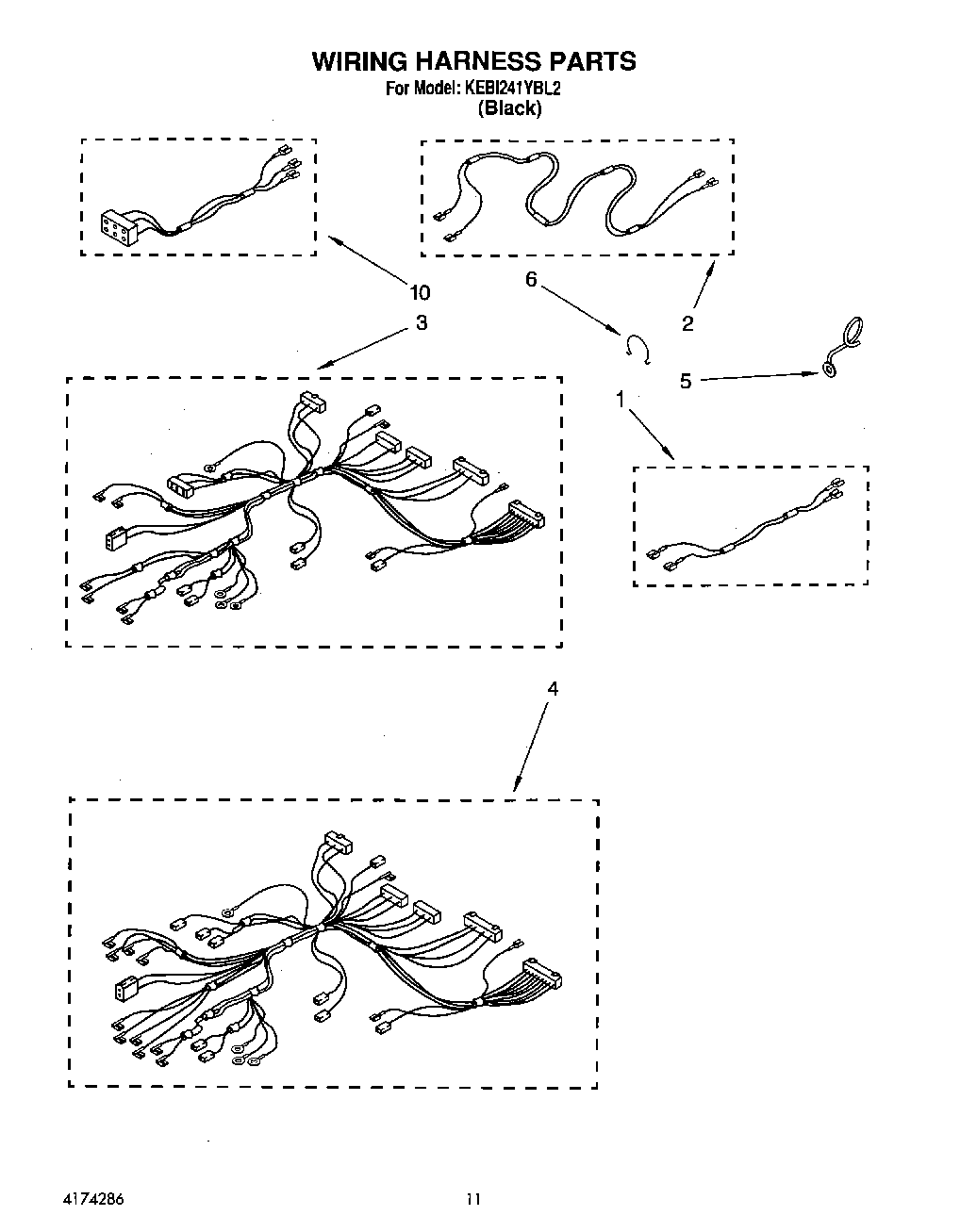

KEBI241YBL2 08 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness Wire (Door Switch)
2	Wiring Harness (Door Switch) Lower)
3	Wiring Harness (Lower Oven)
4	Harness Wire (Oven)
5	Screw
5	Standoff, Wire
6	16515 Whirlpool Clip
10	WP112432 Whirlpool Nut Assembly
10	Harness, Wire (Latch Assy.)
