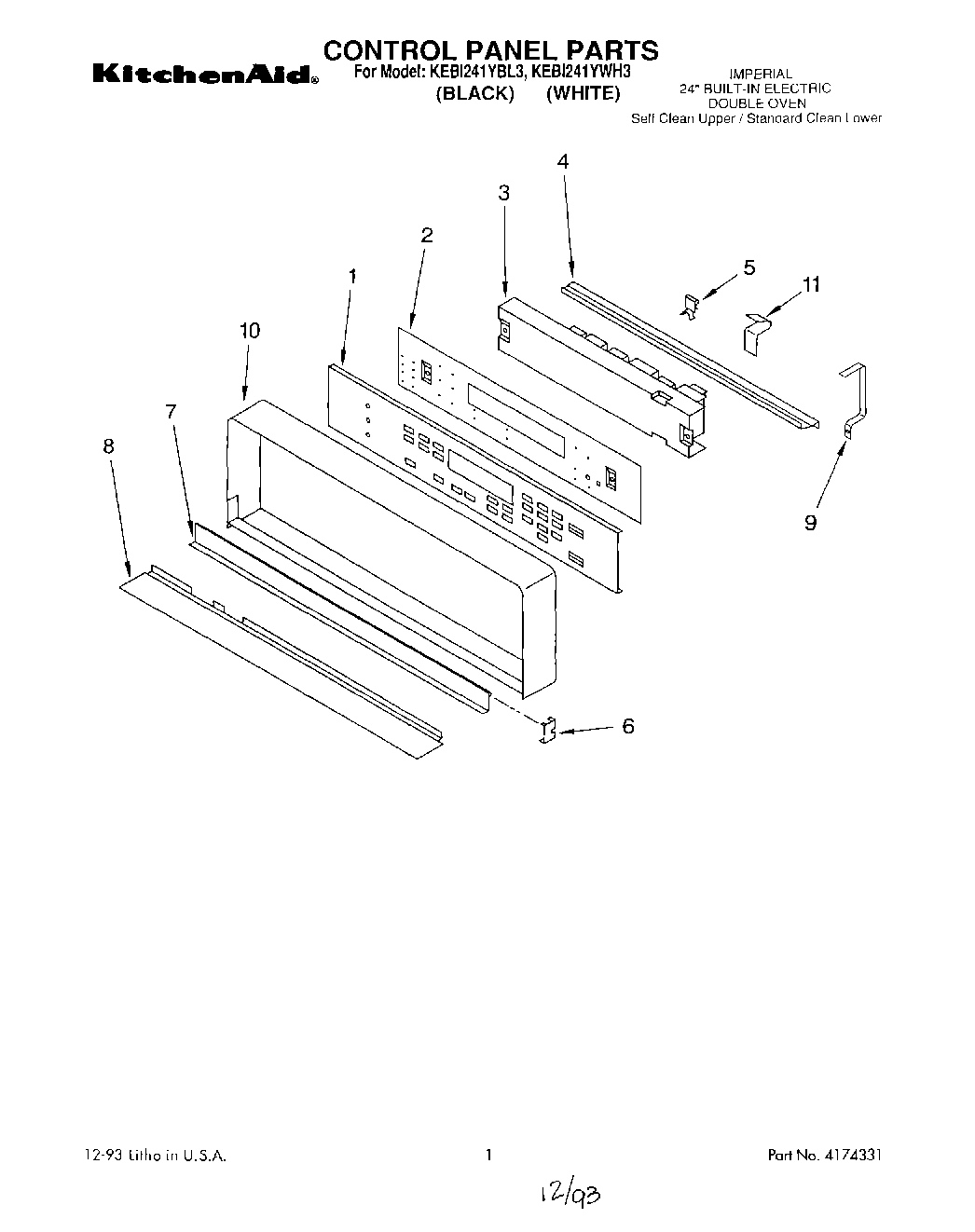

KEBI241YBL3 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Tech Sheet
Installation Instructions
Use & Care Guide
1Membrane, Switch (White Model)
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (2)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Screw (2))
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
8Trim, Panel
8Screw
9Screw (2)
9Bracket (2)
10Frame, Control Panel
11Clip, Control Frame
