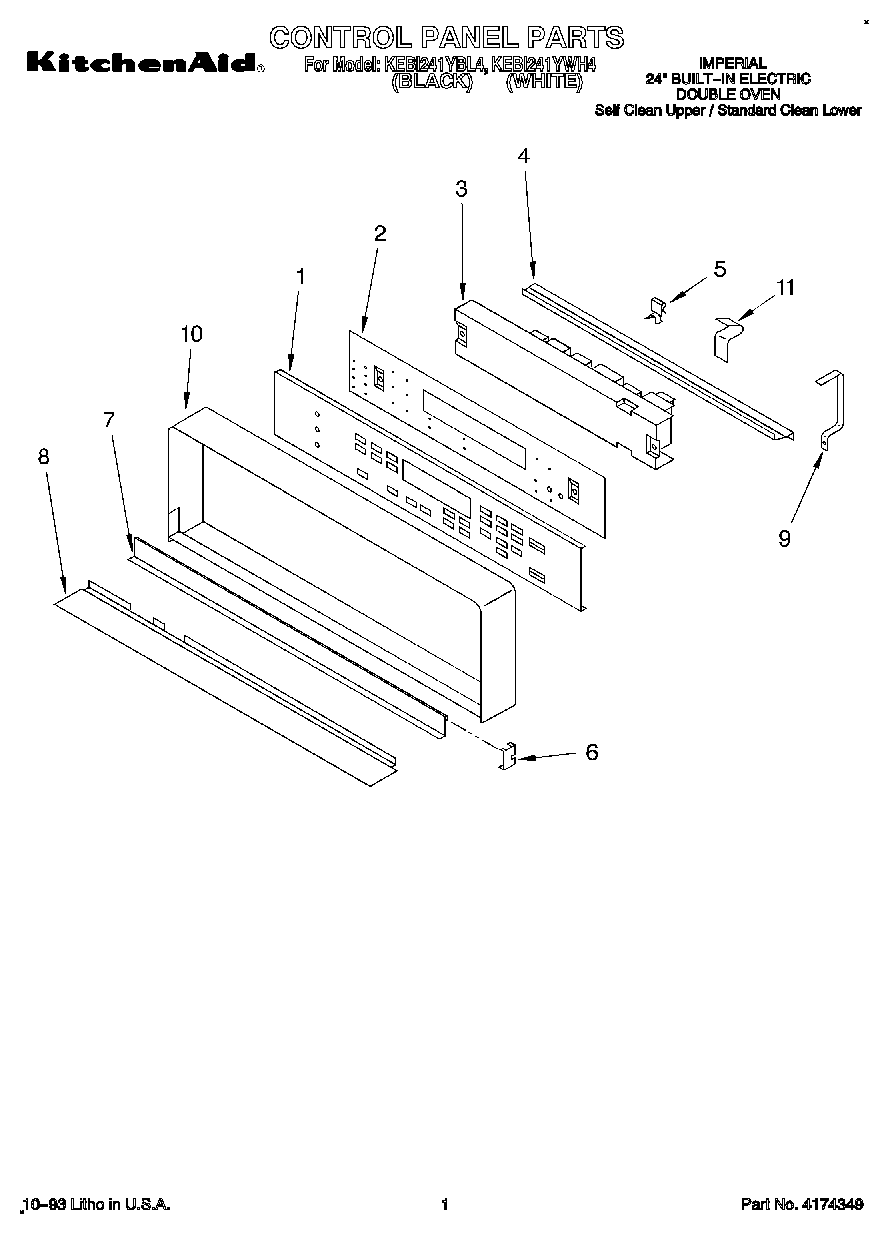

KEBI241YBL4 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
Use & Care Guide
Tech Sheet
1Membrane, Switch (White Model)
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (2)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
7Door, Latch Handle (Screw (2))
8Screw
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
