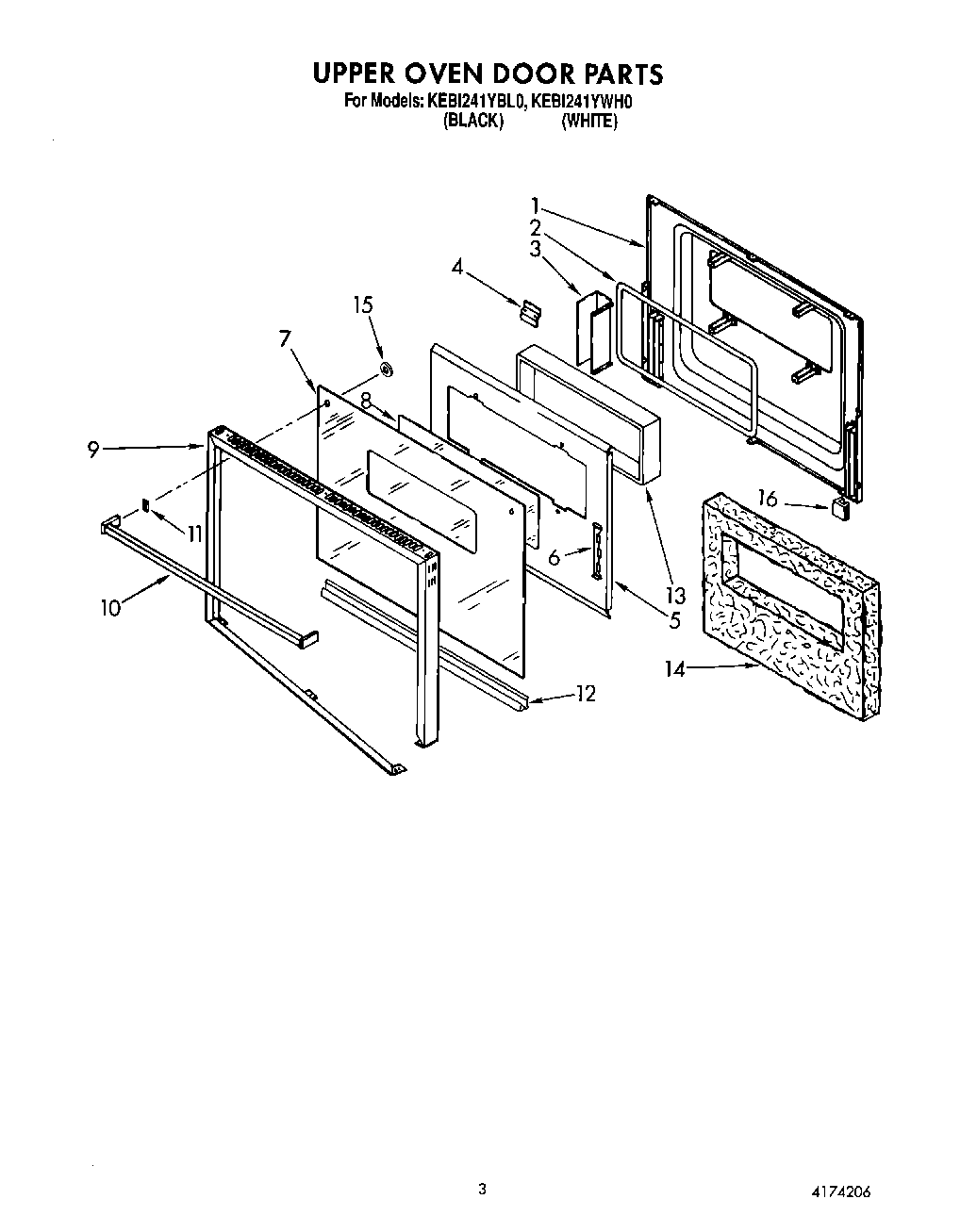

KEBI241YWH0 02 – UPPER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Retainer, Insulation
6Bracket, Glass Mtg.
6Screw
7Glass, Door
7Glass, Door (White)
8Glass, Reflective
9Frame, Door
10Handle, Door (White Model)
10Handle, Door (Black Model)
10Screw
11Spacer, Door Handle
12Clip, Channel Glass (Sides)
12Clip, Channel Glass (Bottom)
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
