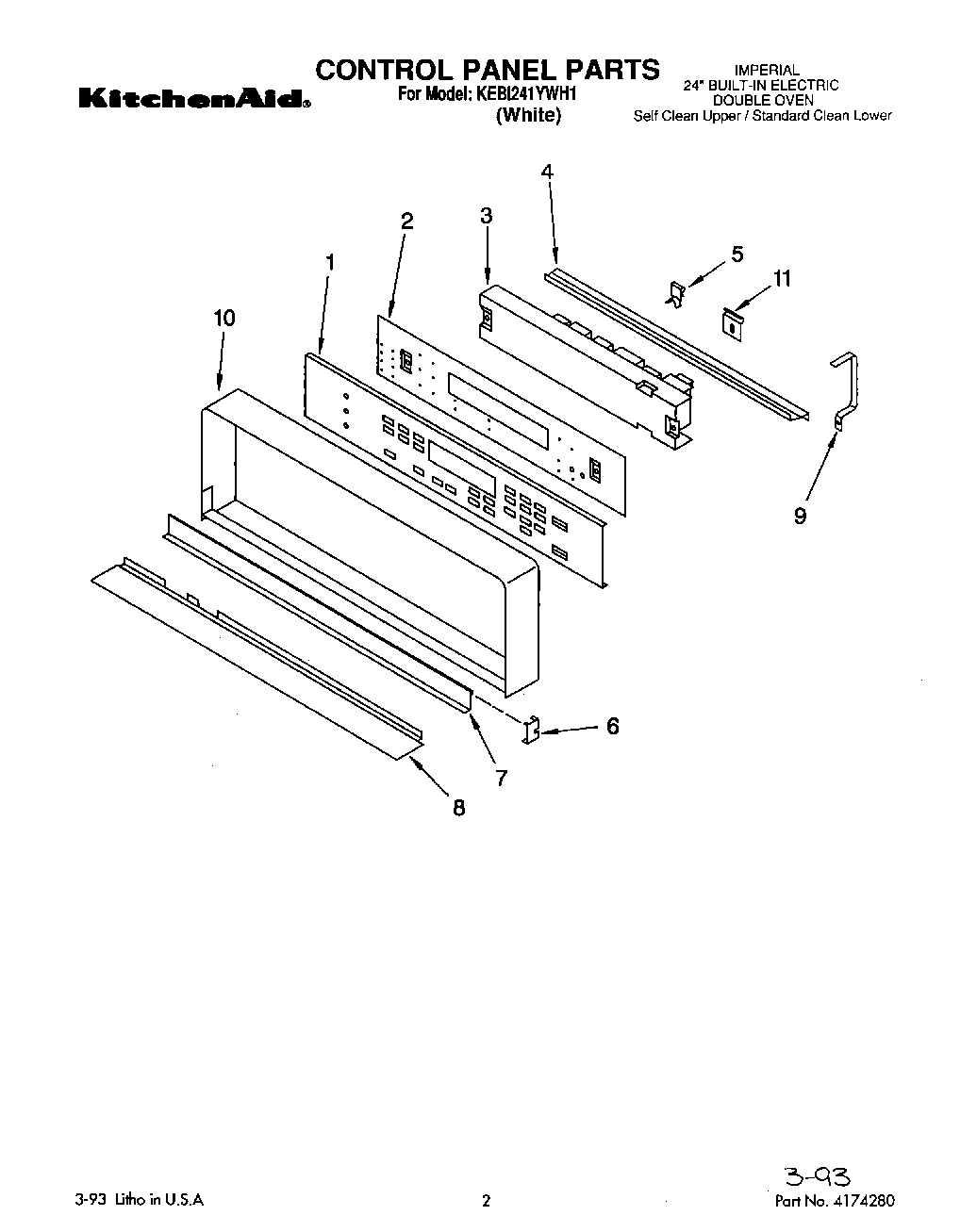

KEBI241YWH1 01 – CONTROL PANEL, LIT/OPTIONAL

KEBI241YWH1 01 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBI241YWH1 01 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Tech Sheet
WPL LIT3182134
Repair Parts List
Installation Instructions
1Membrane, Switch (White Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (3)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (White)
7Door, Latch Handle (Screw (2))
8Trim, Panel
8Screw
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
