KEBI241YWH1 02 – UPPER OVEN DOOR

KEBI241YWH1 02 – UPPER OVEN DOOR

Written by

in

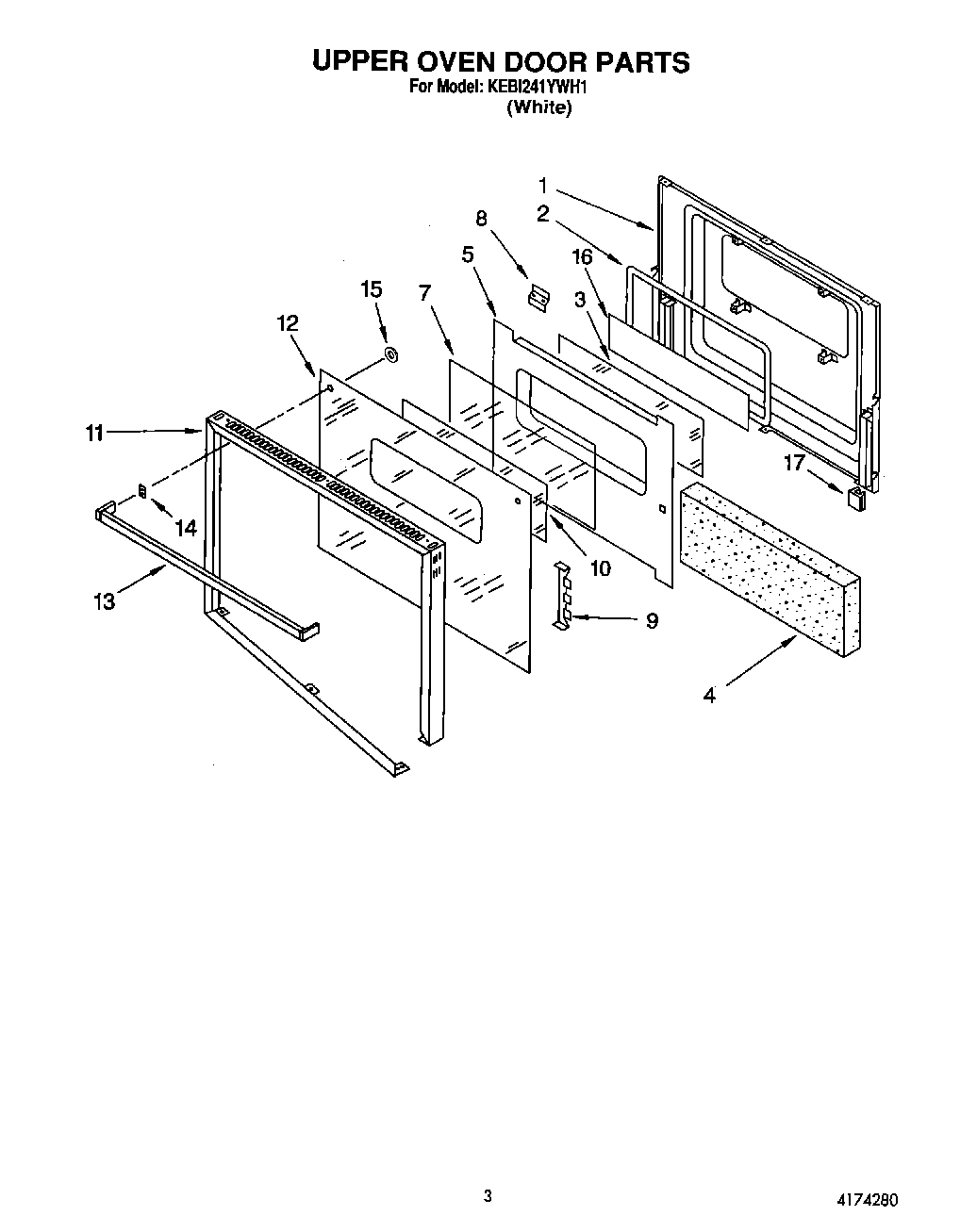

KEBI241YWH1 02 – UPPER OVEN DOOR

Products

Position	Product
1	Vent, Lower Trim (Screw (2))
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door
12	Glass, Door (White Model)
13	Handle, Door (White Model)
14	Spacer, Door Handle
15	Bushing, Door Handle
16	Foil-Adhesive Backed
17	Bumper, Door Glass
