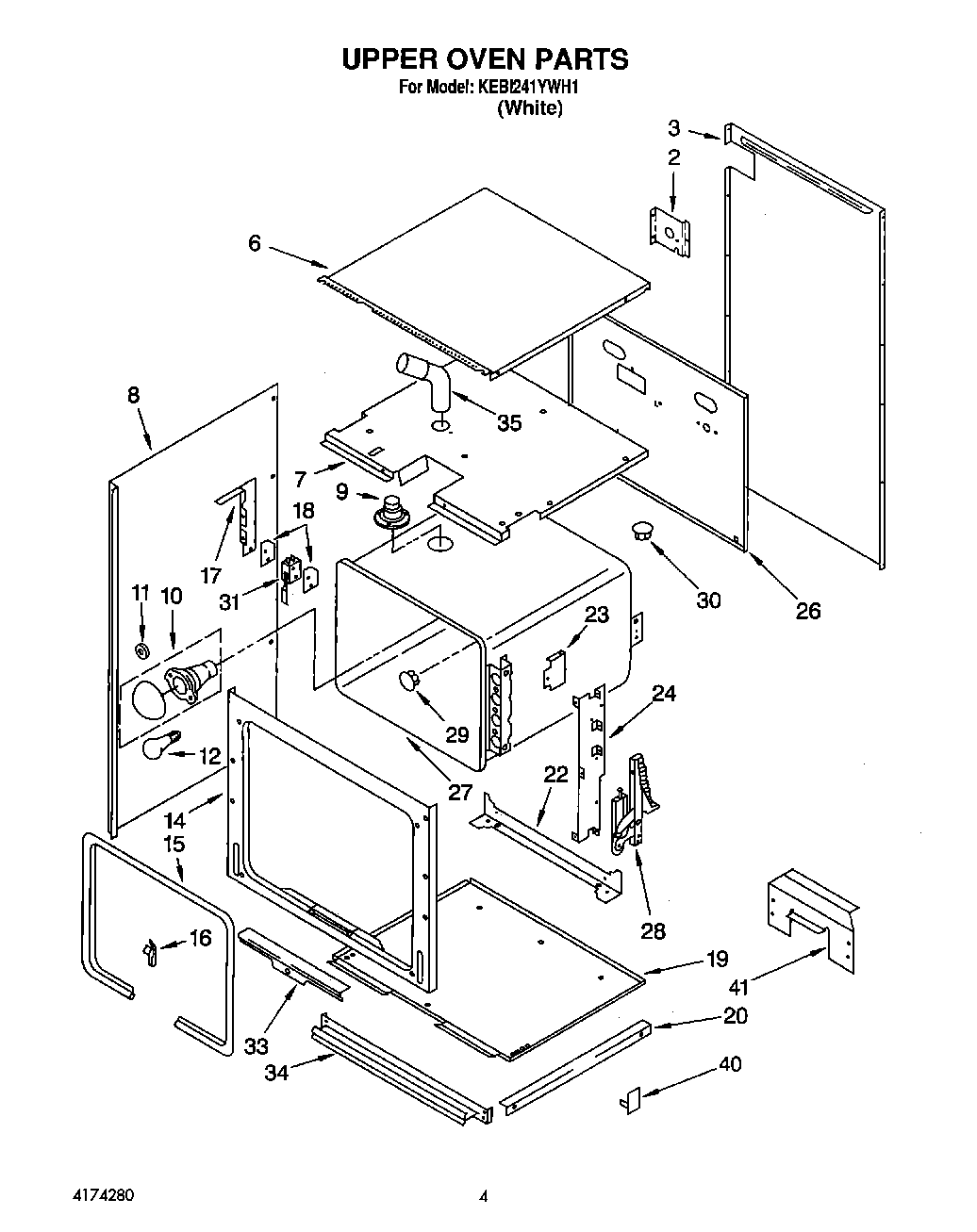

KEBI241YWH1 03 – UPPER OVEN, OPTIONAL

KEBI241YWH1 03 – UPPER OVEN, OPTIONAL

Written by

in

KEBI241YWH1 03 – UPPER OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
10	Screw
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
26	Screw
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Retainer, Seal
33	Screw (4)
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (White)
34	Vent, Lower Trim (Screw (4))
35	Tube, Vent
40	Insert, Middle Vent Trim
41	WPL 3177870
41	Wire (14 Ga. 200 c Brown)
41	18 Ga. 80~c Rating (Red)
41	Wire (12 Ga. 150 c Black)
41	Wire (14 Ga. 150 c Yellow)
41	Wire (14 Ga. 150 c Orange)
41	Wire (14 Ga. 150 c Green)
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Blue)
41	1
41	Golden Harvest (Uncut)
41	WPL 3182584
41	WPL 3171507
41	350930 Whirlpool White Spray Paint
41	350956 Whirlpool Spray Assembly
41	72017 Whirlpool Appliance Touch-Up Paint White
41	WPL 832985
41	WPL 591014
41	WPL 350806
41	WPL 3185550
41	799344 Whirlpool Refrigerator Paint
41	WP261869 Whirlpool Microwave Paint
41	WPL 72112
41	350942 Whirlpool Spray Paint
41	WPL 799832
41	Wire, 25` Roll (Black 14 Ga.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25“ Roll (White 14 GA.)
41	285006 Whirlpool Spray
41	72032 Whirlpool Touch Up Paint Black
41	Platinum (Uncut)
41	Enamal, Toast (1 Qt. Uncut)
41	Paint, Spray (13 Oz.) (Platinum)
41	242831 Whirlpool Oven Wire
41	WP72107 Whirlpool Touchup
41	Leveler (Thinner)
41	Almond (Uncut)
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	72113 Whirlpool Touch-Up Paint
41	Golden Harvest
41	Toast
41	WP482338 Whirlpool Refrigerator Adhesive
