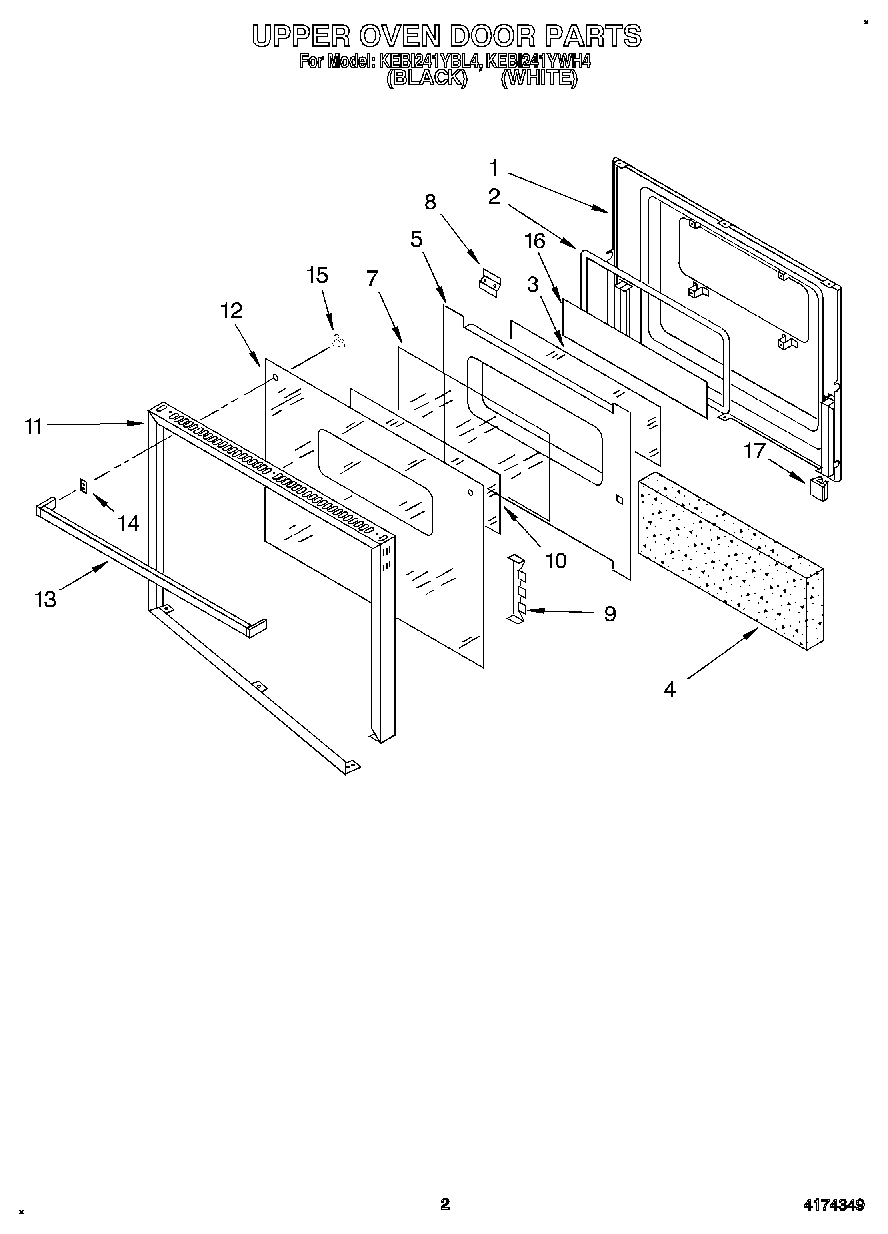

KEBI241YWH4 02 – UPPER OVEN DOOR

KEBI241YWH4 02 – UPPER OVEN DOOR

Written by

in

KEBI241YWH4 02 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Retainer, Insulation
5	Screw
7	Glass, Reflective
8	Latch, Strike
9	Screw
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door
12	Glass, Door (White Model)
12	Glass, Door (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Spacer, Door Handle
15	Bushing, Door Handle
15	Screw
15	Screw
16	Foil-Adhesive Backed
17	Bumper, Door Glass
