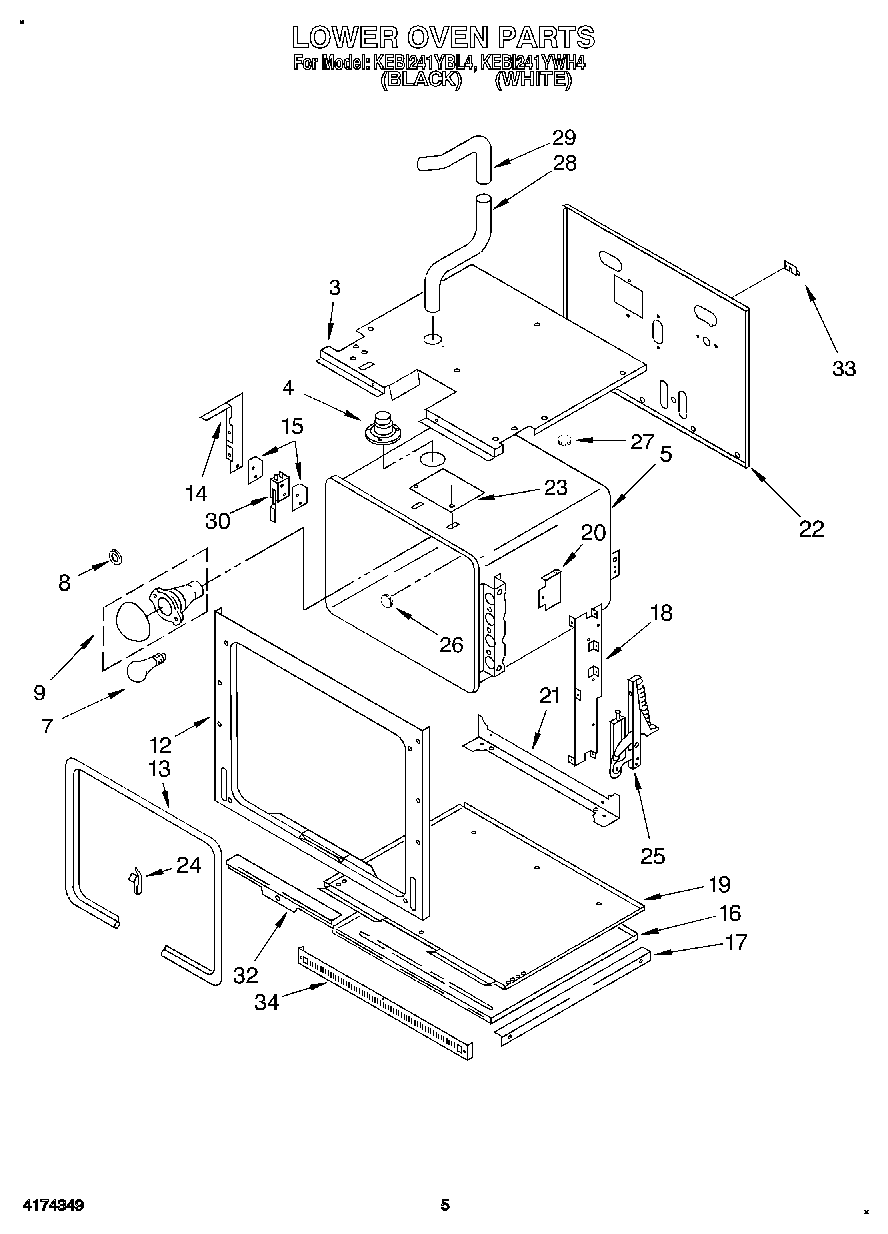

KEBI241YWH4 04 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Screw (3)
4	Tube, Vent
5	Liner, Oven
7	RANGE ONLY 40W 120V APPL BULB
8	WP3184533 Whirlpool Range Light Lens Gasket
9	W11594027 Whirlpool Range Oven Light Socket
12	Frame, Door
13	Seal, Door
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
20	Screw (6)
21	Support, Oven
22	Back, Module
23	Screw (2)
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	WP3177991 Whirlpool Screw
29	Tube, Vent Female
30	Switch, Door
30	Screw (2)
30	Nut (2)
32	Vent, Lower Trim (Screw (2))
32	Retainer, Seal
33	Cover, Cap Tube
33	Screw
33	Screw
34	WPL 3185550
34	WPL 3177870
34	Vent, Lower Trim (Black Model)
34	Vent, Lower Trim (White Model)
