KEBI241YWH4 06 – LOWER OVEN DOOR

KEBI241YWH4 06 – LOWER OVEN DOOR

Written by

in

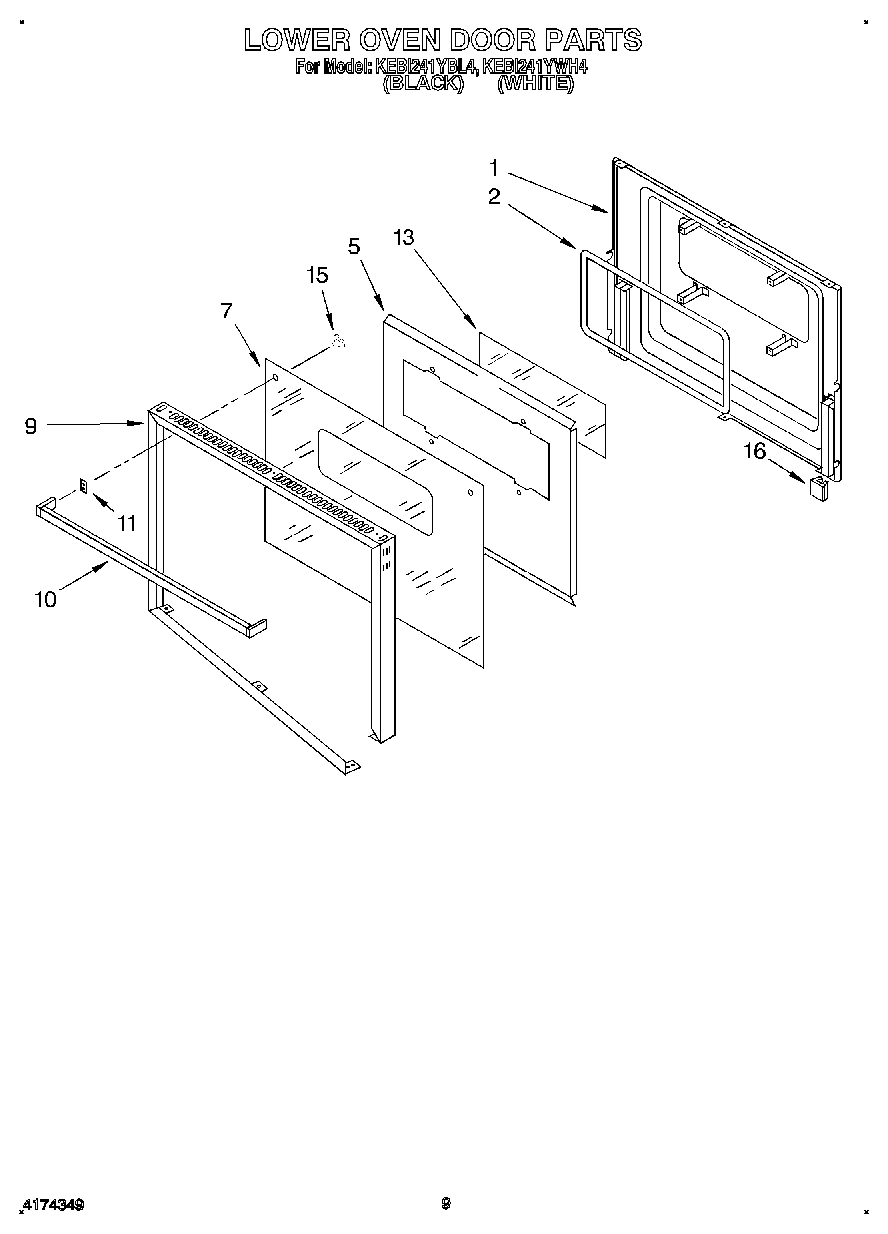

KEBI241YWH4 06 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
5	Retainer, Insulation
5	Screw
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
9	Frame, Door
10	Screw
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
11	Spacer, Door Handle
13	Glass, Clear
15	Bushing, Door Handle
15	Screw, 10-32 x 1/2
16	Bumper, Door Glass
