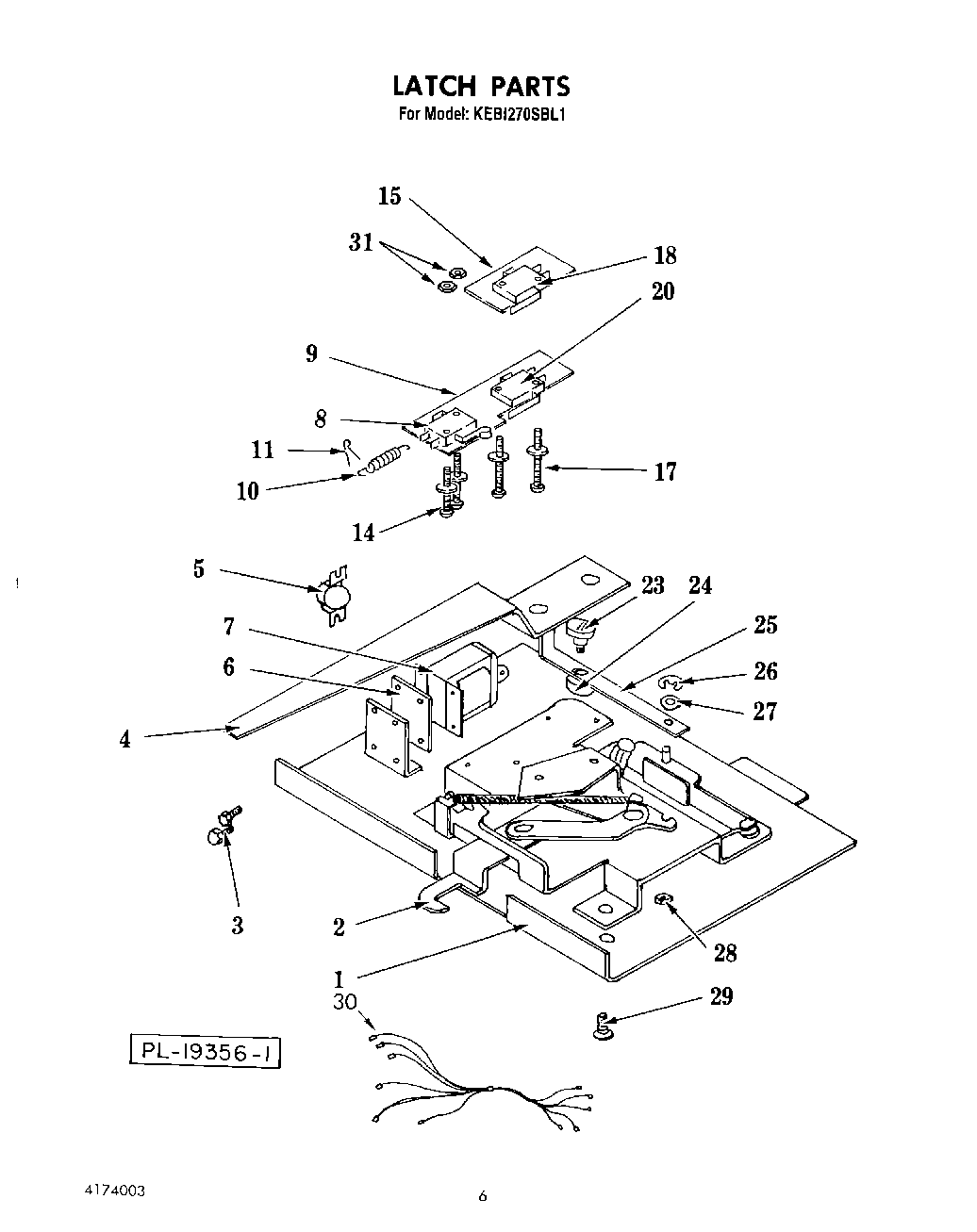

KEBI270SBL1 05 – LATCH

KEBI270SBL1 05 – LATCH

Written by

in

KEBI270SBL1 05 – LATCH

Products

PositionProduct
1Latch Mounting Plate
2Mechanism, Latch
3Screw, No.10-24 X 3/8“ Hex TCS
4Latch Lever
5Thermal Switch
6Solenoid Spacer
7Solenoid
8Latch Switch With Roller
9Insulator (2)
10Solenoid Spring
11Cotter Pin
14Screw, 4-40 X 5/8 Hex
20Latch Switch (2)
23Shoulder Screw, Actuator Arm
24Spacer, Actuator Arm
25Actuator Arm
26Retaining Ring
27Washer, Flat
28Nut, No.10-24 Hex Kep
29Screw, No.10-24 X 3/8“ PTHMS
30Wiring Harness, Latch Switch
31Nut (2)
