KEBI270SBL1 06 – OVEN LINER

KEBI270SBL1 06 – OVEN LINER

Written by

in

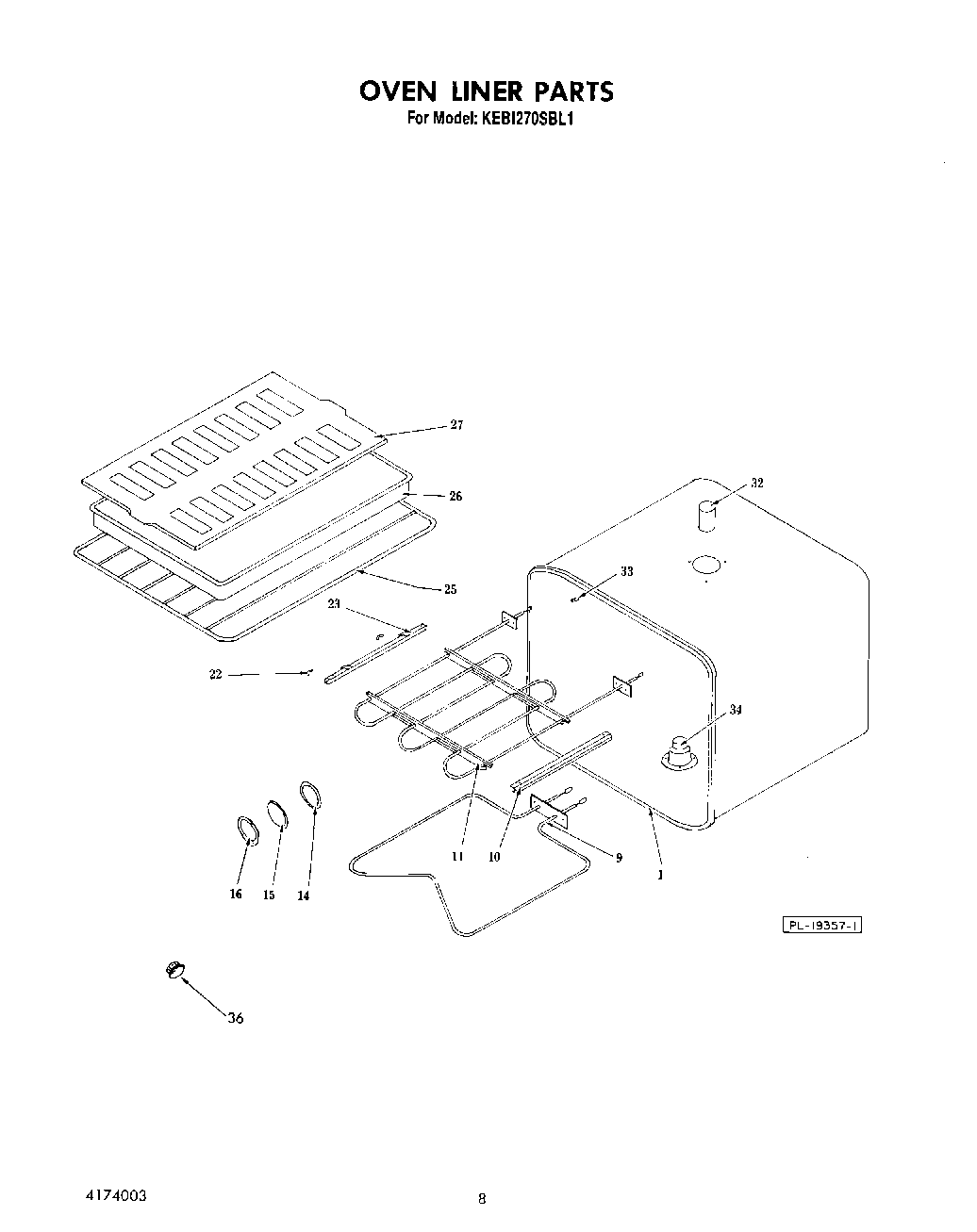

KEBI270SBL1 06 – OVEN LINER

Products

PositionProduct
1Liner, Oven
9WP3177420 Whirlpool Bake Element
10Broiler Element Support-Right
11Element, Broil
14Light Lens Gasket
15Light Lens
16Light Lens Retainer
22Thermostat Bulb Clip
23Broiler Element Support-Left
25Oven Rack
264396923 Whirlpool Broil Pan Set Gray Porcelain
32Vent Tube Extension
33Cover, Cap Tube
34Smoke Eliminator (Vent Tube Lower Oven)
34Smoke Eliminator (Upper Oven)
36Plug Button (3/8“ Hole)
36Plug Button (5/8“ Hole)
36Plug Button (3/4“ Hole)
