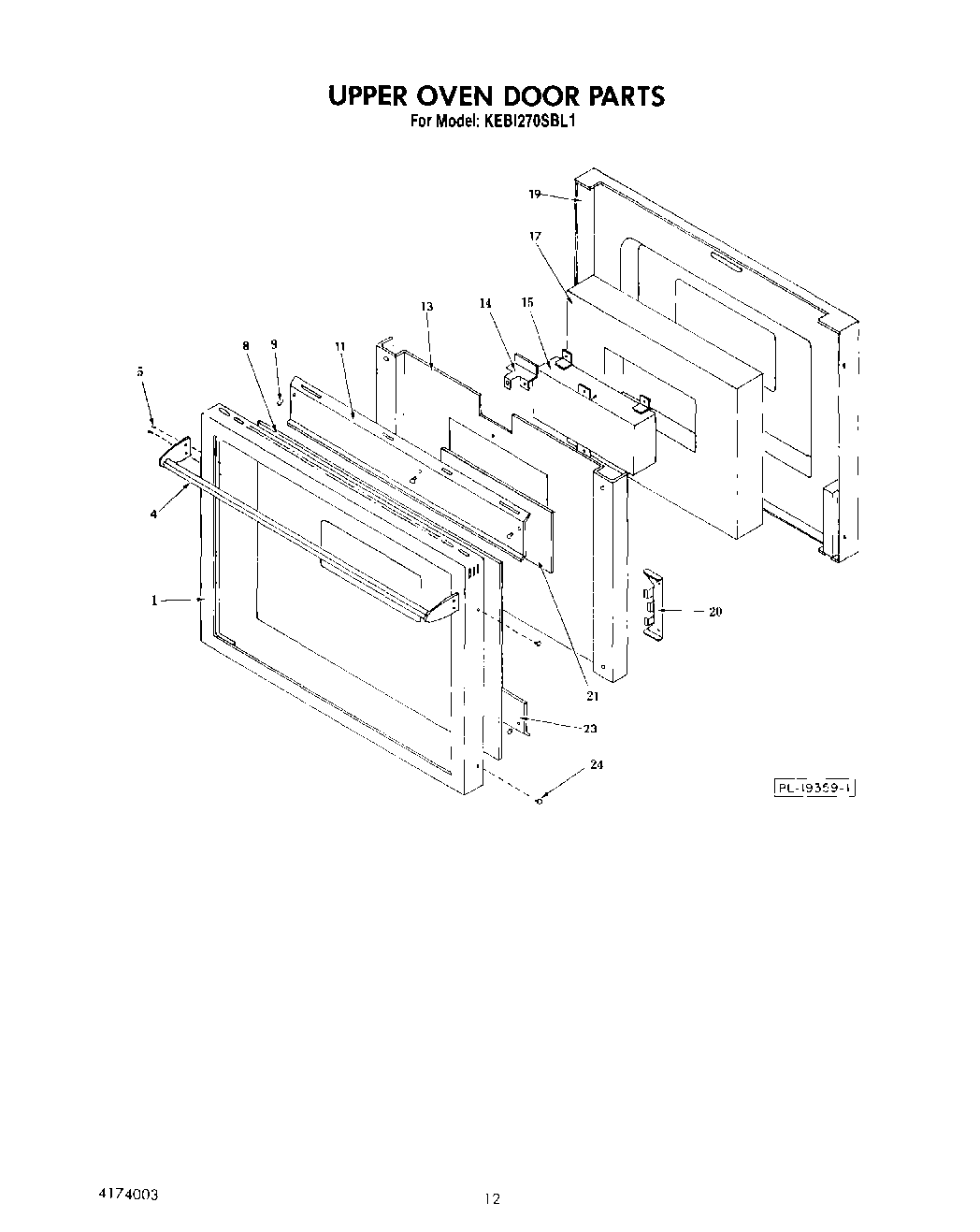

KEBI270SBL1 08 – UPPER OVEN DOOR, LIT/OPTIONAL

KEBI270SBL1 08 – UPPER OVEN DOOR, LIT/OPTIONAL

Written by

in

KEBI270SBL1 08 – UPPER OVEN DOOR, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Use and Care Guide
Installation Instructions
1Door Frame
4Door Handle
5Screw, 8-32 X 3/8“ PFHMS
8Door Glass
9Rubber Bumper
11Air Baffle
13Retainer, Insulation
14Bracket, Lock
15Window Package
17Insulation
19Door Liner
20Bracket, Glass Mtg.
21Glass, Reflective
23Air Baffle, Bottom
24Vent, Lower Trim (Screw (2))
