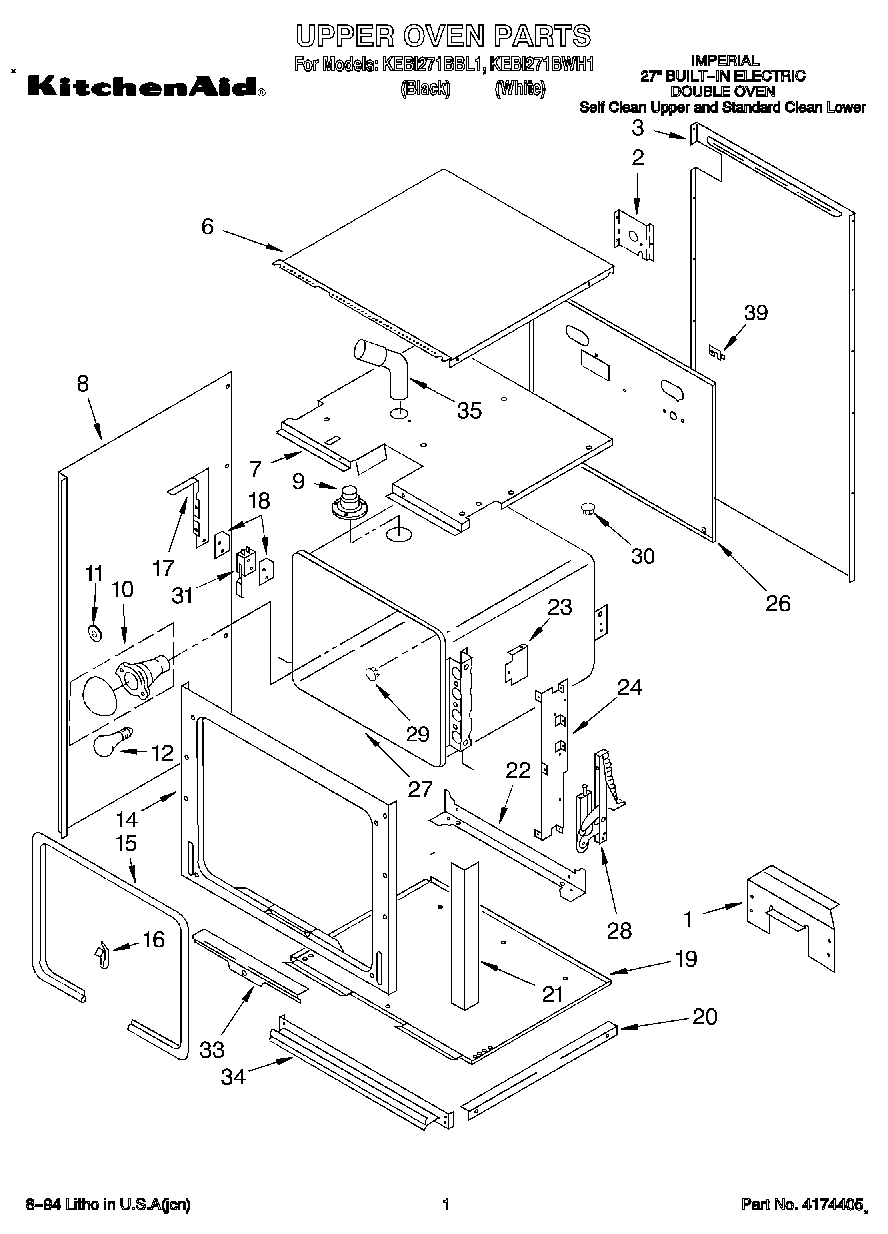

KEBI271BBL1 01 – UPPER OVEN, OPTIONAL

KEBI271BBL1 01 – UPPER OVEN, OPTIONAL

Written by

in

KEBI271BBL1 01 – UPPER OVEN, OPTIONAL

Products

Position	Product
1	WPL 3183752
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Trim, Door Side (2) (Black Model)
21	Side Trim, Door (2) (White Model)
22	Support, Oven
23	Screw (6)
23	Shield, Radiation
24	Bracket, Hinge
26	Screw
26	Back, Module
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Vent, Lower Trim (Screw (2))
33	Retainer, Seal
34	Vent, Middle Trim (White Model)
34	Vent, Middle Trim (Screw (2))
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
35	Tube, Vent
39	WPL 3171507
39	Wire (14 Ga. 150 c Blue)
39	WPL 832985
39	WPL 591014
39	WPL 350806
39	1
39	Wire (14 Ga. 200 c Brown)
39	242831 Whirlpool Oven Wire
39	WP261869 Whirlpool Microwave Paint
39	Wire (14 Ga. 150 c Brown)
39	Wire (14 Ga. 150 c Green)
39	Wire (14 Ga. 150 c Orange)
39	Wire (14 Ga. 150 c Yellow)
39	Screw
39	Wire (12 Ga. 150 c Black)
39	18 Ga. 80~c Rating (Red)
39	Cover, Cap Tube
39	Insulation, Back
39	Paint, Spray (13 Oz.) (Platinum)
39	Toast
39	Golden Harvest
39	72113 Whirlpool Touch-Up Paint
39	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
39	Almond (Uncut)
39	Leveler (Thinner)
39	WP72107 Whirlpool Touchup
39	799344 Whirlpool Refrigerator Paint
39	72017 Whirlpool Appliance Touch-Up Paint White
39	350956 Whirlpool Spray Assembly
39	Enamal, Toast (1 Qt. Uncut)
39	Platinum (Uncut)
39	Golden Harvest (Uncut)
39	Insulation, Oven
39	WP482338 Whirlpool Refrigerator Adhesive
39	72032 Whirlpool Touch Up Paint Black
39	285006 Whirlpool Spray
39	Wire, 25“ Roll (White 14 GA.)
39	Wire, 25` Roll (Red 14 Ga.)
39	Wire, 25` Roll (Black 14 Ga.)
39	WPL 799832
39	350942 Whirlpool Spray Paint
39	WPL 72112
39	350930 Whirlpool White Spray Paint
