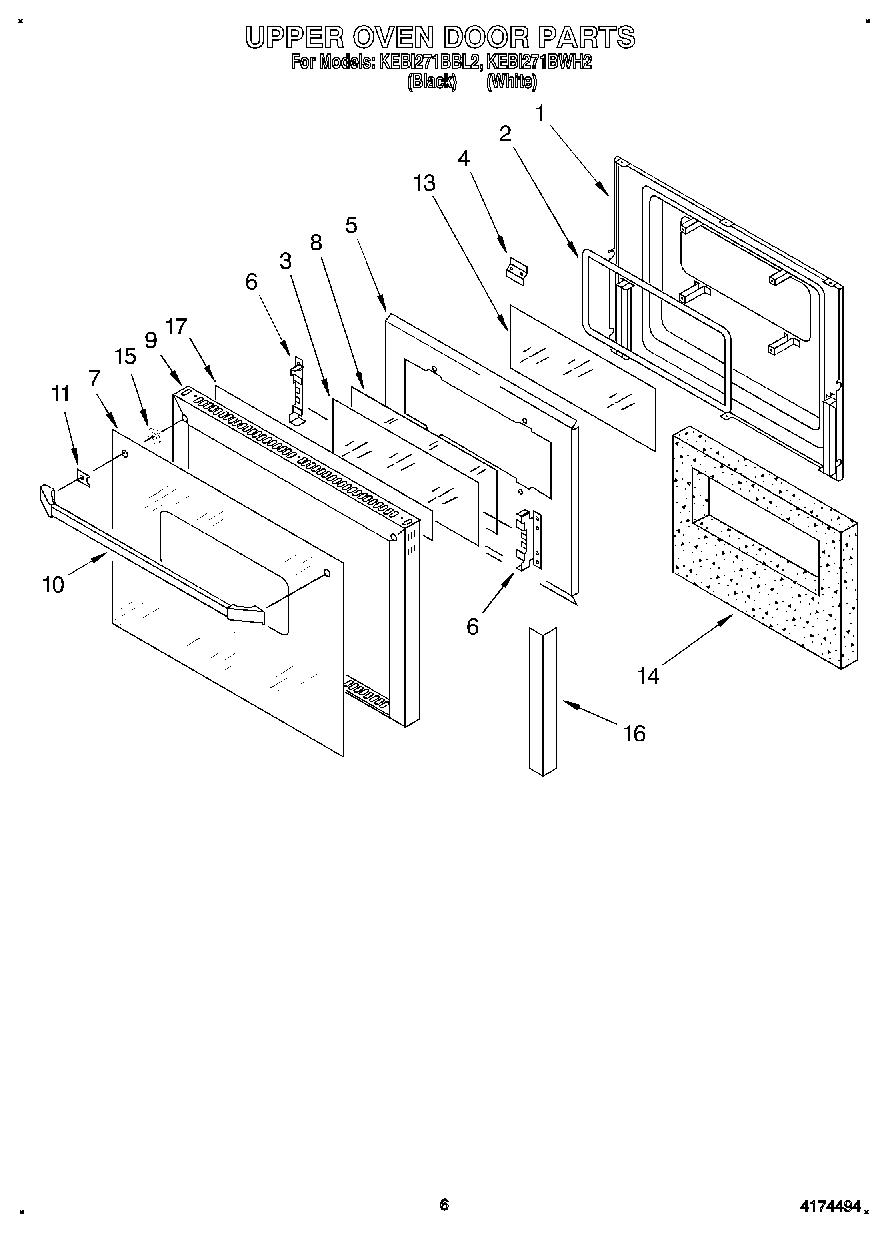

KEBI271BBL2 04 – UPPER OVEN DOOR

KEBI271BBL2 04 – UPPER OVEN DOOR

Written by

in

KEBI271BBL2 04 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
6	Retainer, Glass
6	Screw
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door (White Model)
9	Frame, Door (Black Model)
10	Handle, Door (White Model)
10	Screw
10	Handle, Door (Black Model)
11	Spacer, Door Handle
13	Glass, Clear
14	Insulation, Door
15	Bushing, Door Handle
16	Foil-Adhesive
17	Screw
17	Foil, Adhesive
