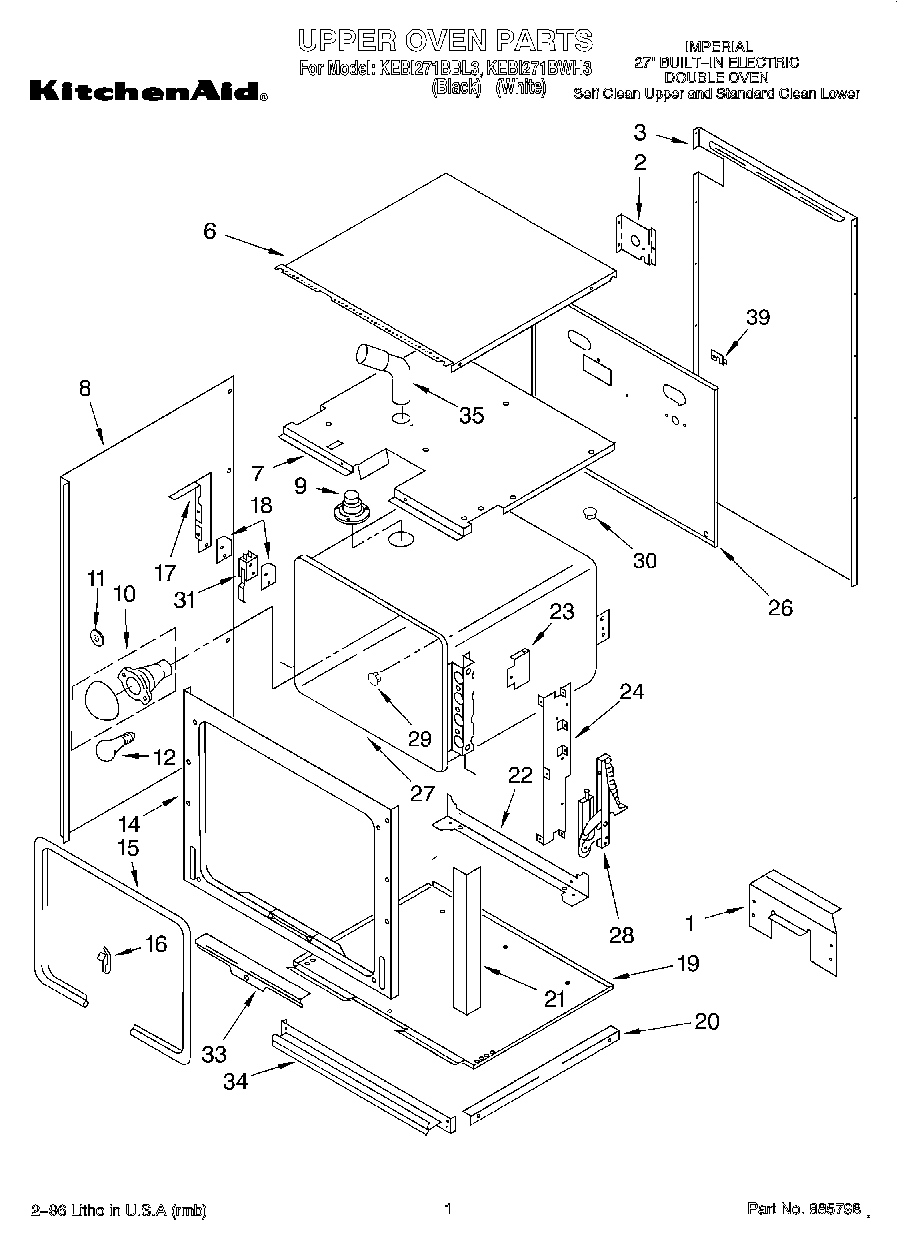

KEBI271BBL3 01 – UPPER OVEN, OPTIONAL

Products

Position	Product
1	WPL 3183752
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Side Trim, Door (2) (White Model)
21	Trim, Door Side (2) (Black Model)
22	Support, Oven
23	Screw (6)
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
26	Screw
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Screw Black (4))
34	Screw
34	Vent, Middle Trim (Screw (2))
34	Vent, Middle Trim (White Model)
34	Vent, Middle Trim (Black Model)
35	Tube, Vent
39	Wire (14 Ga. 150 c Yellow)
39	Golden Harvest (Uncut)
39	WPL 832985
39	WPL 591014
39	WPL 350806
39	1
39	Wire (14 Ga. 200 c Brown)
39	18 Ga. 80~c Rating (Red)
39	Wire (12 Ga. 150 c Black)
39	Golden Harvest
39	Toast
39	350930 Whirlpool White Spray Paint
39	350956 Whirlpool Spray Assembly
39	WPL 3171507
39	72017 Whirlpool Appliance Touch-Up Paint White
39	799344 Whirlpool Refrigerator Paint
39	WP72107 Whirlpool Touchup
39	Almond (Uncut)
39	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
39	72113 Whirlpool Touch-Up Paint
39	Paint, Spray (13 Oz.) (Platinum)
39	Wire (14 Ga. 150 c Orange)
39	350942 Whirlpool Spray Paint
39	WPL 799832
39	Wire, 25` Roll (Black 14 Ga.)
39	Wire, 25` Roll (Red 14 Ga.)
39	Wire, 25“ Roll (White 14 GA.)
39	285006 Whirlpool Spray
39	72032 Whirlpool Touch Up Paint Black
39	WP482338 Whirlpool Refrigerator Adhesive
39	WPL 72112
39	Platinum (Uncut)
39	Insulation, Back
39	Wire (14 Ga. 150 c Green)
39	Wire (14 Ga. 150 c Brown)
39	Wire (14 Ga. 150 c Blue)
39	WP261869 Whirlpool Microwave Paint
39	242831 Whirlpool Oven Wire
39	Cover, Cap Tube
39	Screw
39	Enamal, Toast (1 Qt. Uncut)
39	Insulation, Oven
