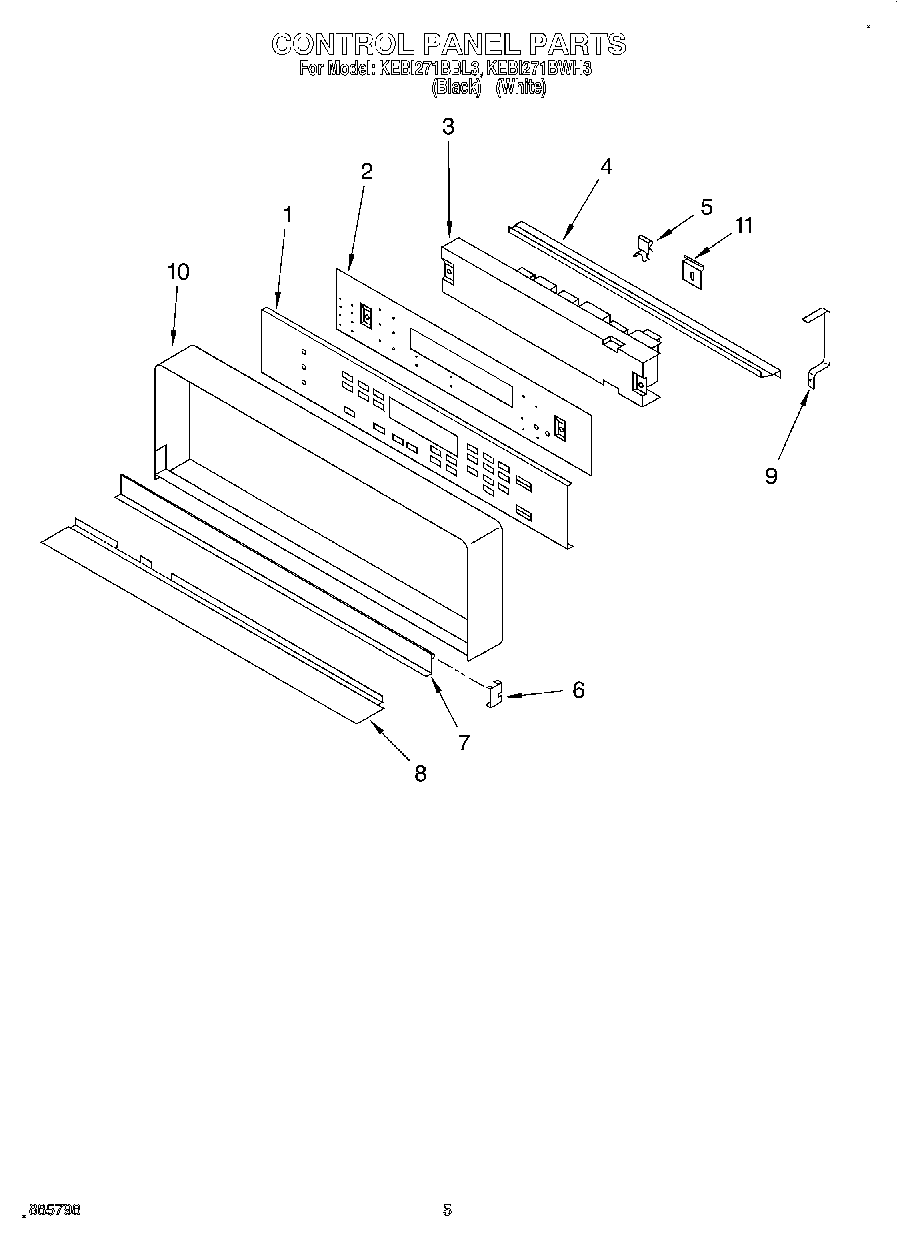

KEBI271BBL3 03 – CONTROL PANEL, LITERATURE

KEBI271BBL3 03 – CONTROL PANEL, LITERATURE

Written by

in

KEBI271BBL3 03 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
Tech Sheet
Use & Care Guide
1Membrane, Switch (Black)
1Membrane, Switch (White)
2Bracket, Mounting Switch Membrane
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
8Trim, Panel
9Screw (2)
9Bracket (2)
10Frame, Control Panel (White Model)
10Frame, Control Panel (Black Model)
11Clip, Control Frame
