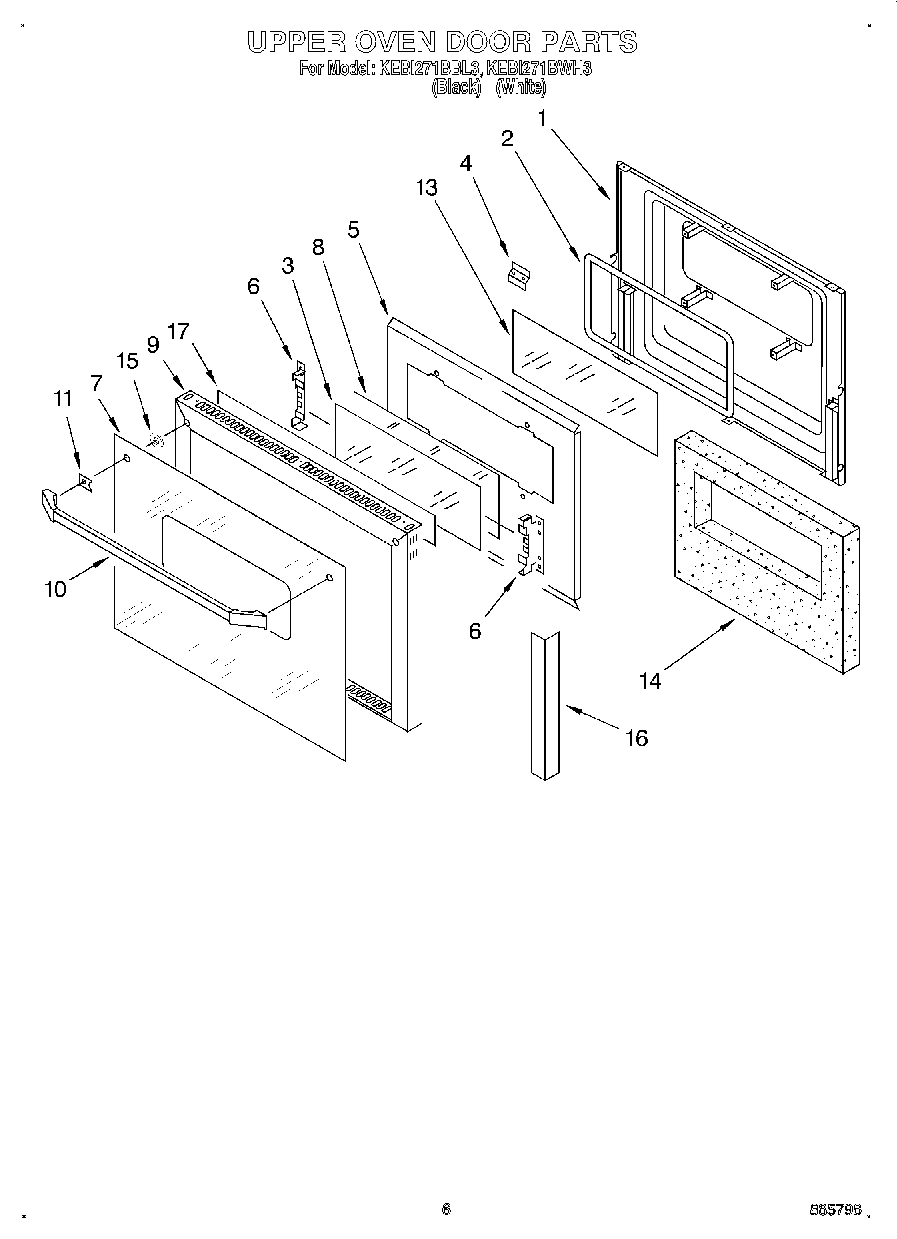

KEBI271BBL3 04 – UPPER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Latch, Strike
5Retainer, Insulation
5Screw, (2)
6Retainer, Glass
6Screw
7Glass, Door (Black Model)
7Glass, Door (White Model)
8Glass, Reflective
9Frame, Door (White Model)
9Frame, Door (Black Model)
10Screw (2)
10Handle, Door (Black Model)
10Handle, Door (White Model)
11Spacer, Door Handle
13Glass, Clear
14Insulation, Door
15Bushing, Door Handle
16Foil-Adhesive
17Screw
17Foil, Adhesive
