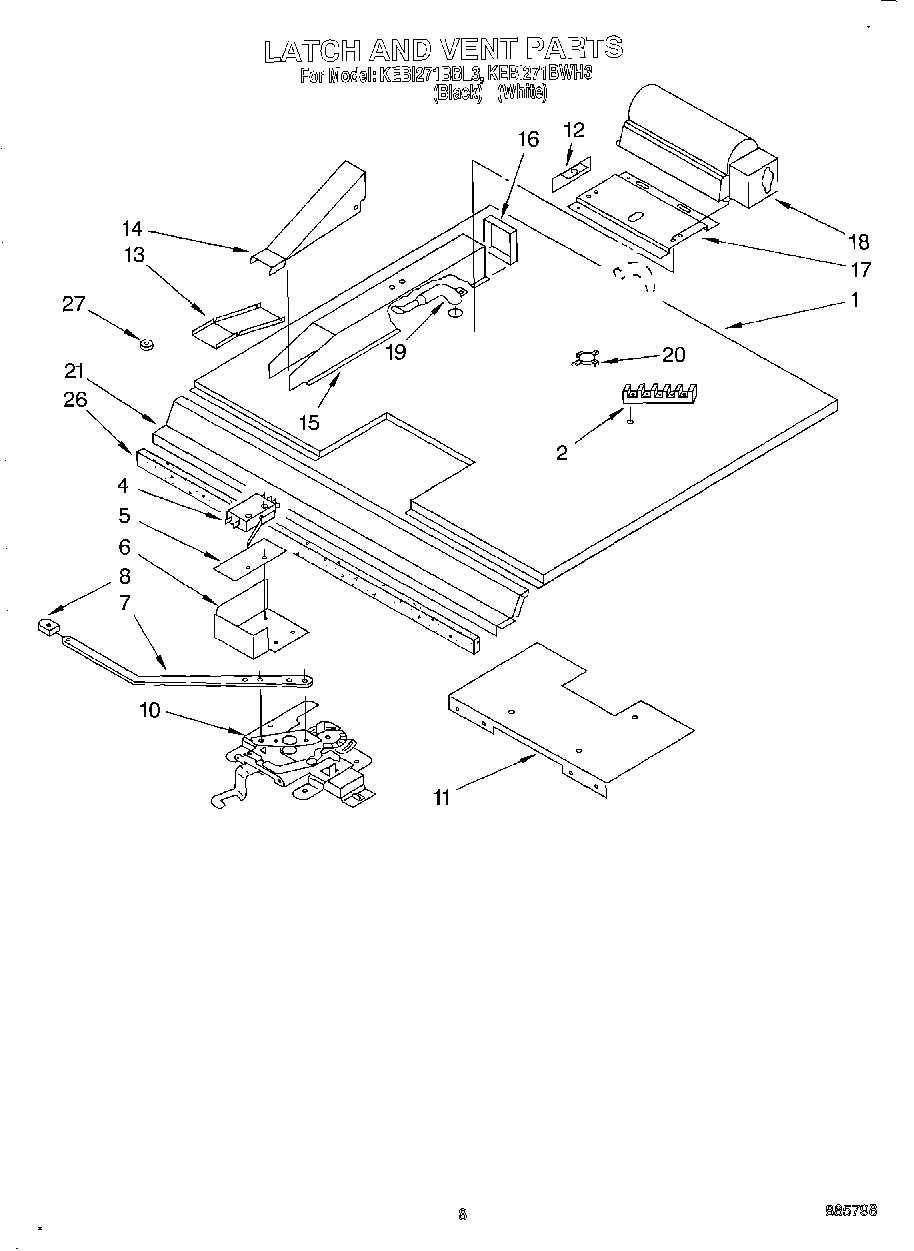

KEBI271BBL3 06 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2WP8203546 Whirlpool Terminal Block
2Screw (10-12 x .875)
4Screw
4Screw,
4Switch, Latch
5Insulator, Switch
6Guard, Latch
7Screw
7Handle, Latch
8Screw
8Knob, Latch Handle
8Screw, 8-18 X 3/4 (4)
8Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Screw
12Baffle-Blower
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Screw
19Tube, Vent
20Screw
20SPST Thermostat
21Shield, Heat
21WP3177991 Whirlpool Screw
26Seal, foam
27Bushing
