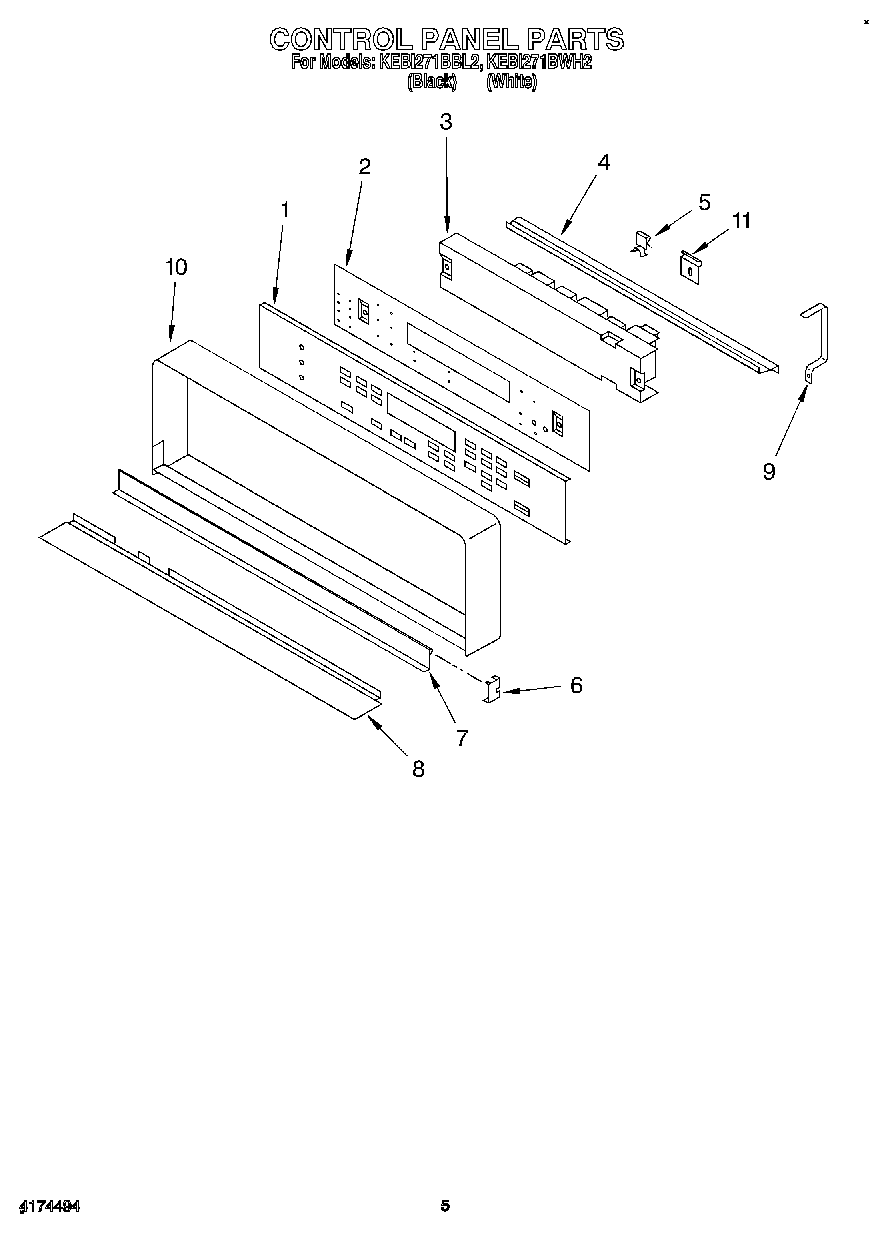

KEBI271BWH2 03 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
Tech Sheet
Use & Care Guide
1Membrane, Switch (Black)
1Membrane, Switch (White)
2Bracket, Mounting Switch Membrane
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel (White Model)
10Frame, Control Panel (Black Model)
11Clip, Control Frame
