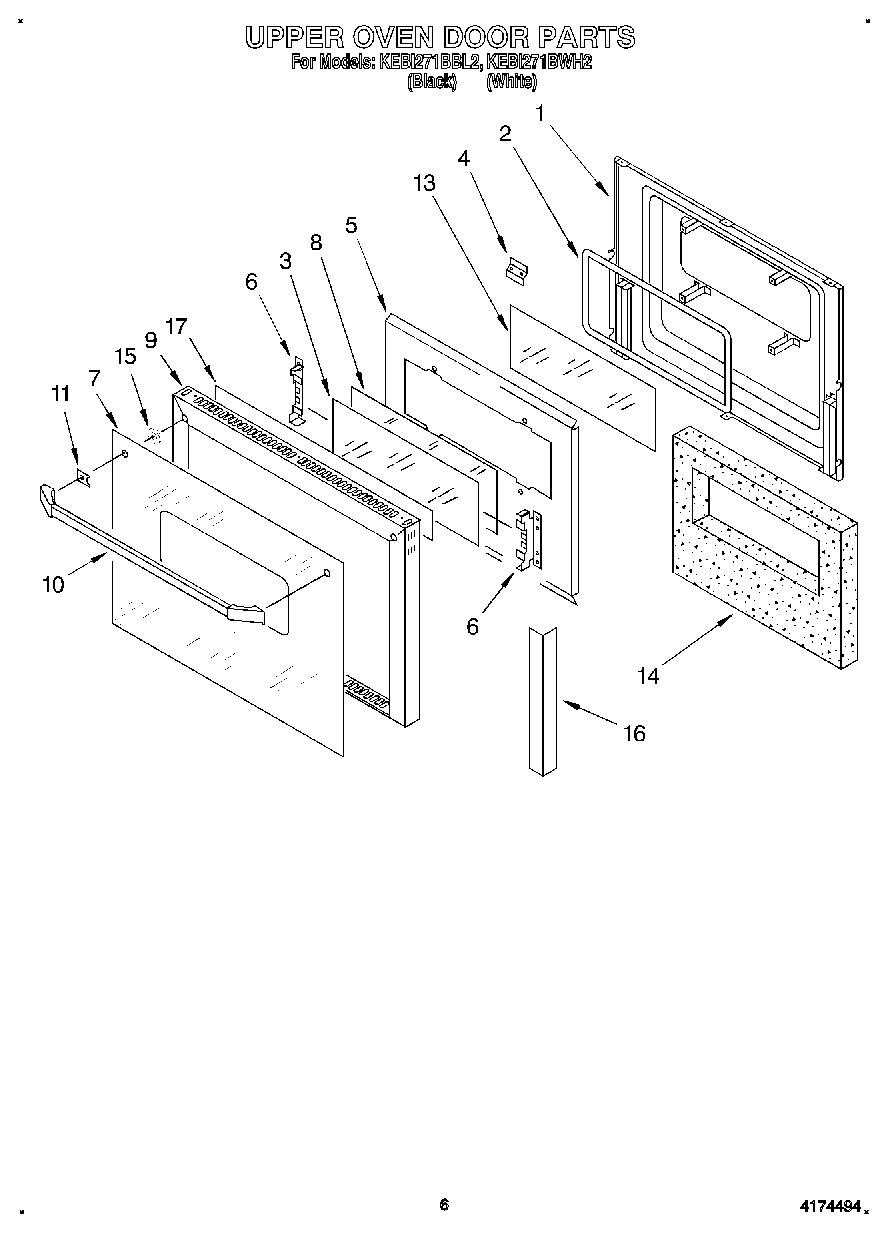

KEBI271BWH2 04 – UPPER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Latch, Strike
5Retainer, Insulation
6Retainer, Glass
6Screw
7Glass, Door (Black Model)
7Glass, Door (White Model)
8Glass, Reflective
9Frame, Door (White Model)
9Frame, Door (Black Model)
10Handle, Door (White Model)
10Screw
10Handle, Door (Black Model)
11Spacer, Door Handle
13Glass, Clear
14Insulation, Door
15Bushing, Door Handle
16Foil-Adhesive
17Screw
17Foil, Adhesive
