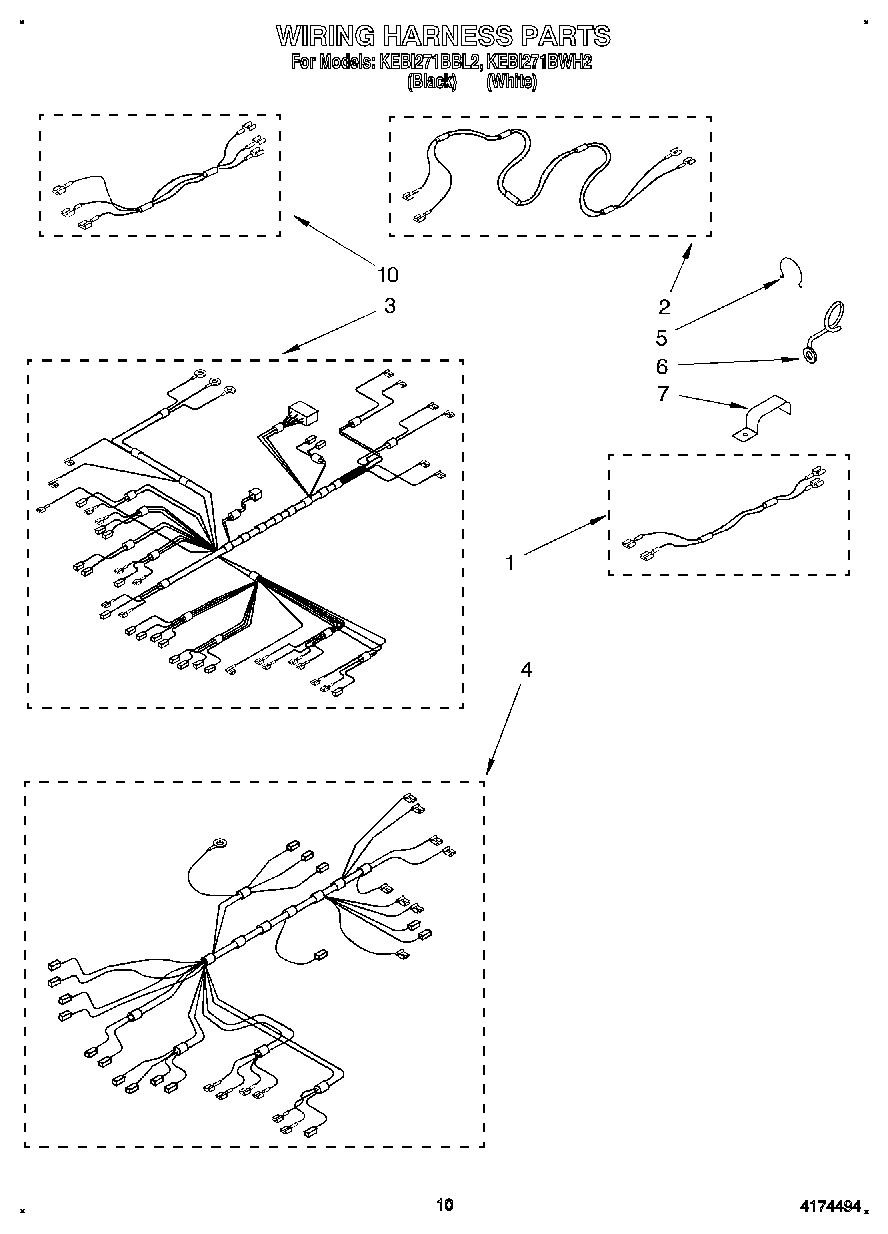

KEBI271BWH2 08 – WIRING HARNESS

Written by

Products

Position	Product
1	Wiring Harness (Door Switch) (Upper)
2	Wiring Harness (Door Switch) Lower)
3	Wiring Harness (Main)
4	Wiring Harness (Upper Oven)
5	16515 Whirlpool Clip
5	WP112432 Whirlpool Nut Assembly
6	Standoff, Wire
6	Screw
7	7111P002-60 Whirlpool Clamp
10	Harness, Wire (Latch Assy.)
