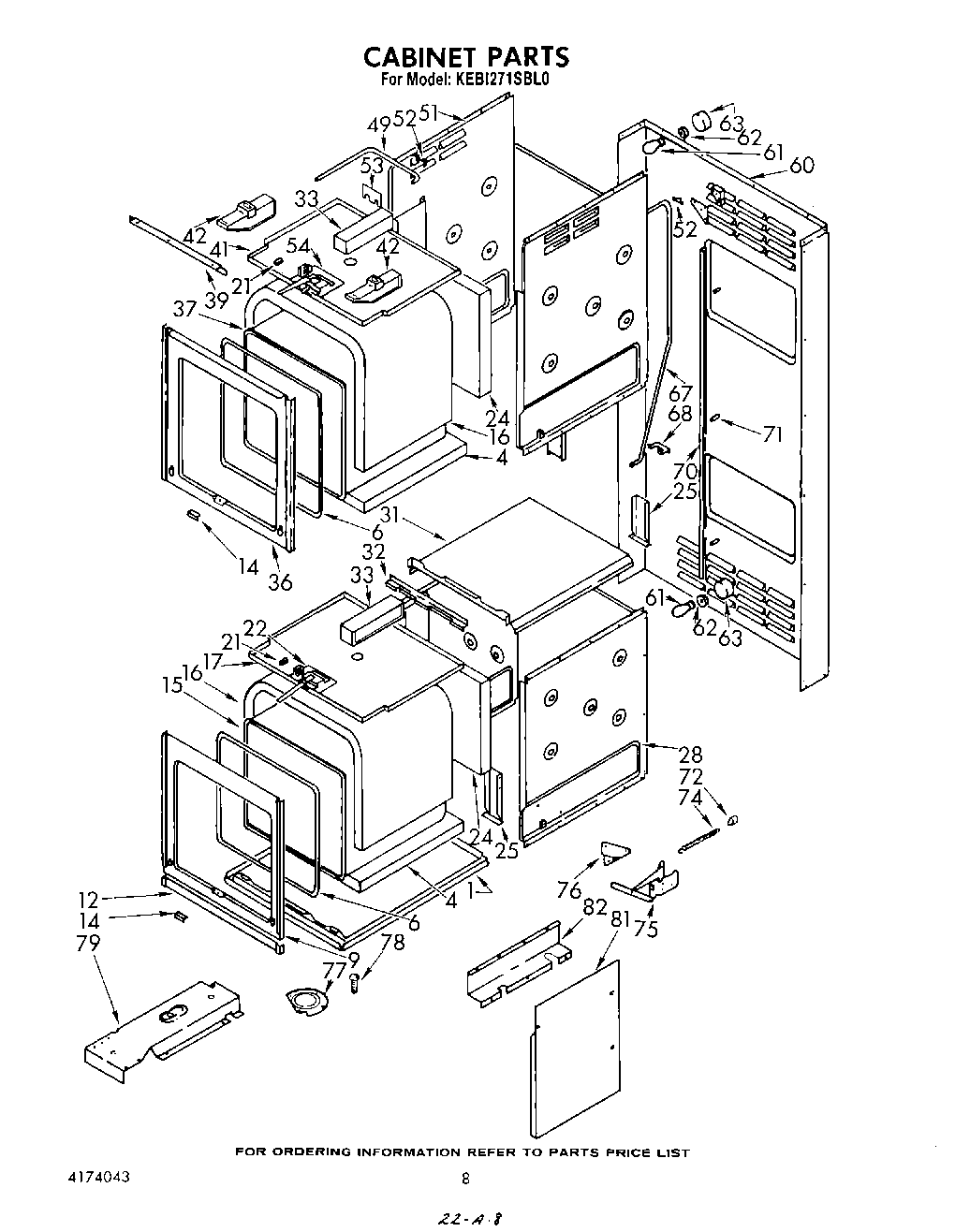

KEBI271SBL0 07 – CABINET

KEBI271SBL0 07 – CABINET

Written by

in

KEBI271SBL0 07 – CABINET

Products

PositionProduct
1Main Bottom
4Insulation, Bottom
6Door Gasket
9Front Frame (Lower Oven)
12Bottom Trim
14Cover, Seal End
15Oven Liner (Lower Oven) (See Page 3 For Further Breakdown)
16Insulation, Top and Sides
21Knob, Latch Lever
22Latch Assembly (Lower Oven) (See Latch Parts On Pages 6 & 7 For Further Breakdown)
24Insulation, Rear
25Rear Anchor
28Cabinet Side (Lower Oven)
31Upper Oven Support (KEBS276SBL1)
32Front Frame Support
33Collector Box
36Front Frame (Upper Oven) (KEBS276SBL1)
37Oven Liners (Upper Oven) (See Pages 8 & 9 For Further Breakdown)
39Control Frame Support
41Compartment Top
42Vent Box
49Vent Tube (Upper Oven)
51Cabinet Side
51Cabinet Side Lower
52Clamp, Conduit
53Vent Tube Mounting Bracket
54Latch Parts (Upper Oven) (See Pages 6 & 7 For Further Breakdown)
60Cabinet Back
61RANGE ONLY 40W 120V APPL BULB
62Socket, Lamp
63Light Shield
67Vent Tube, Lower Oven
68Vent Tube, Retainer
70Cabinet Support (Left)
70Cabinet Support (Right)
71Spacer
72Spring, Anchor
74Door Spring (Easy Clean Oven)
74Door Spring (Self Cleaning Oven)
75Hinge Assembly
76Cam Plate (Right)
76Cam Plate (Left Left)
77Probe Cover
78Vent, Lower Trim (Screw (2))
79Air Duct (Upper Oven) (Left)
79Air Du
79Air Duct (Upper Oven) (Right)
79Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
81WPL 4173016
81WPL 4173017
82Air Baffle Channel
