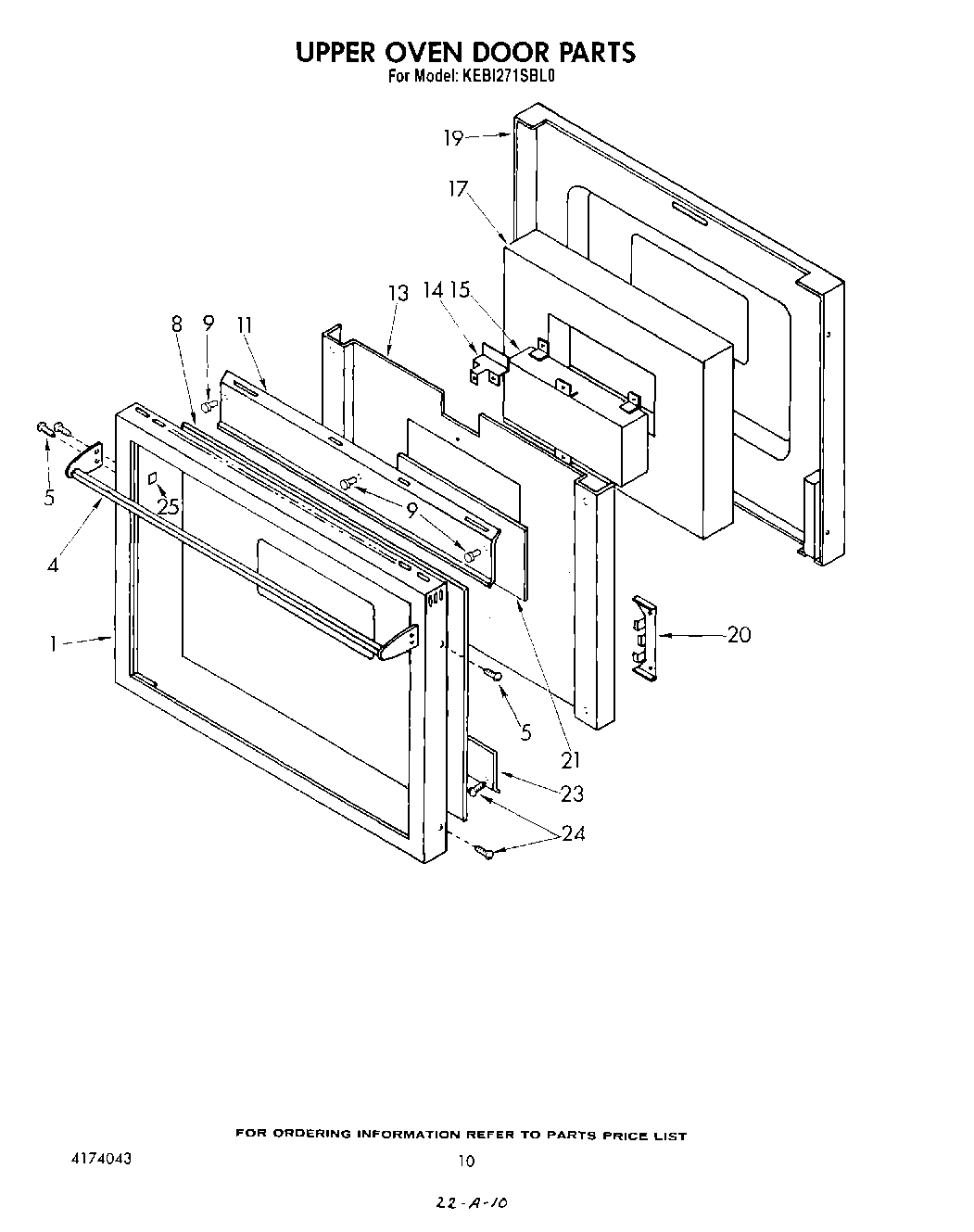

KEBI271SBL0 08 – UPPER OVEN DOOR , LIT/OPTIONAL

KEBI271SBL0 08 – UPPER OVEN DOOR , LIT/OPTIONAL

Written by

in

KEBI271SBL0 08 – UPPER OVEN DOOR , LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Use and Care Guide
Installation Instructions
1Door Frame
4Door Handle
5Screw, 8-32 X 3/8“ PFHMS
8Door Glass
9Rubber Bumper
11Air Baffle
13Retainer, Insulation
14Bracket, Lock
15Window Pack
17Insulation
19Door Liner
20Bracket, Glass Mtg.
21Glass, Reflective
23Air Baffle, Bottom
24Vent, Lower Trim (Screw (2))
25Insert (4)
