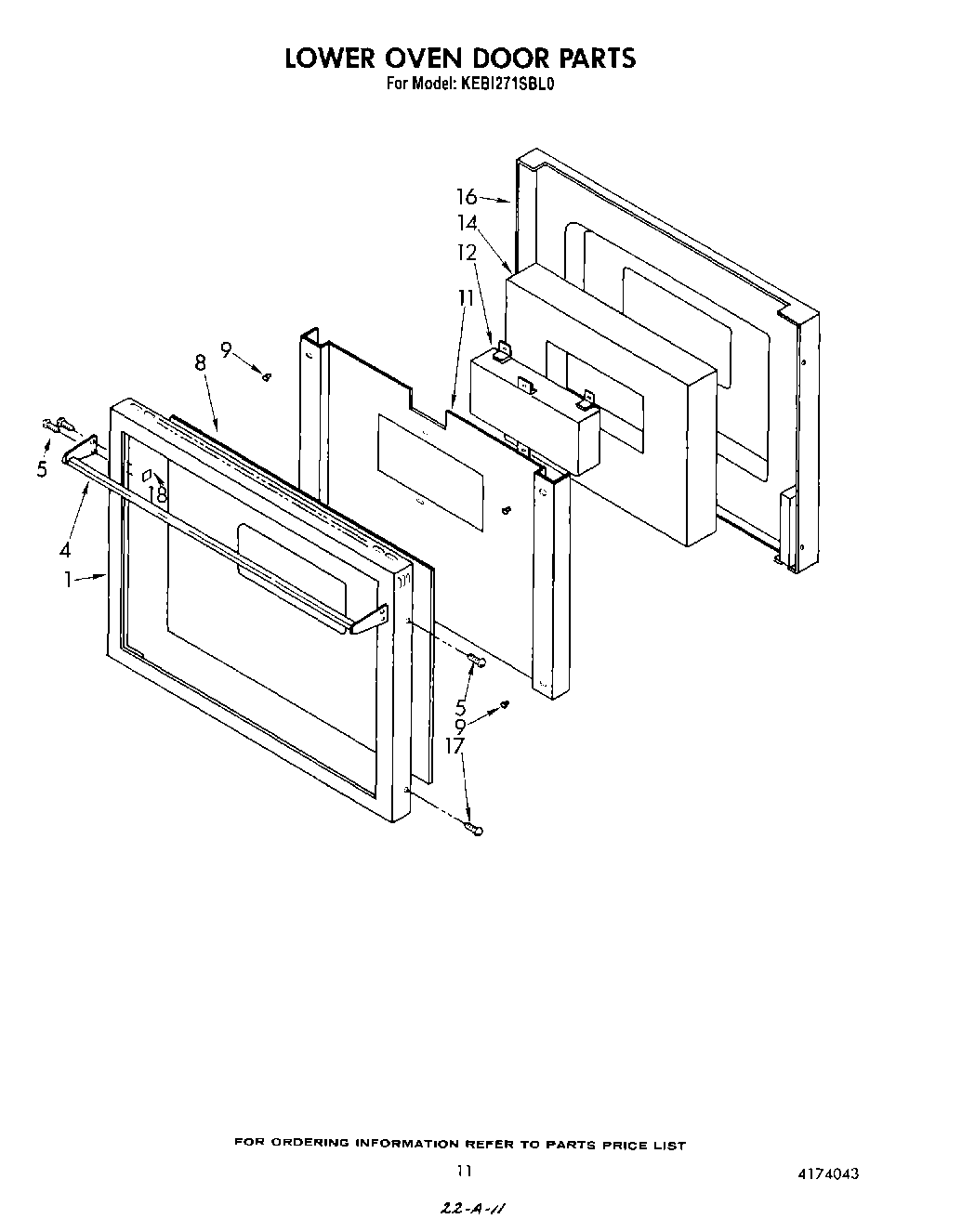

KEBI271SBL0 09 – LOWER OVEN DOOR
Products
| Position | Product |
|---|---|
| 1 | Door Frame |
| 4 | Door Handle |
| 5 | Screw, 8-32 X 3/8`` PFHMS |
| 8 | Door Glass |
| 9 | Rubber Bumper |
| 11 | Retainer, Insulation |
| 12 | Window Pack |
| 14 | Insulation |
| 16 | Door Liner |
| 17 | Vent, Lower Trim (Screw (2)) |
| 18 | Insert (4) |
