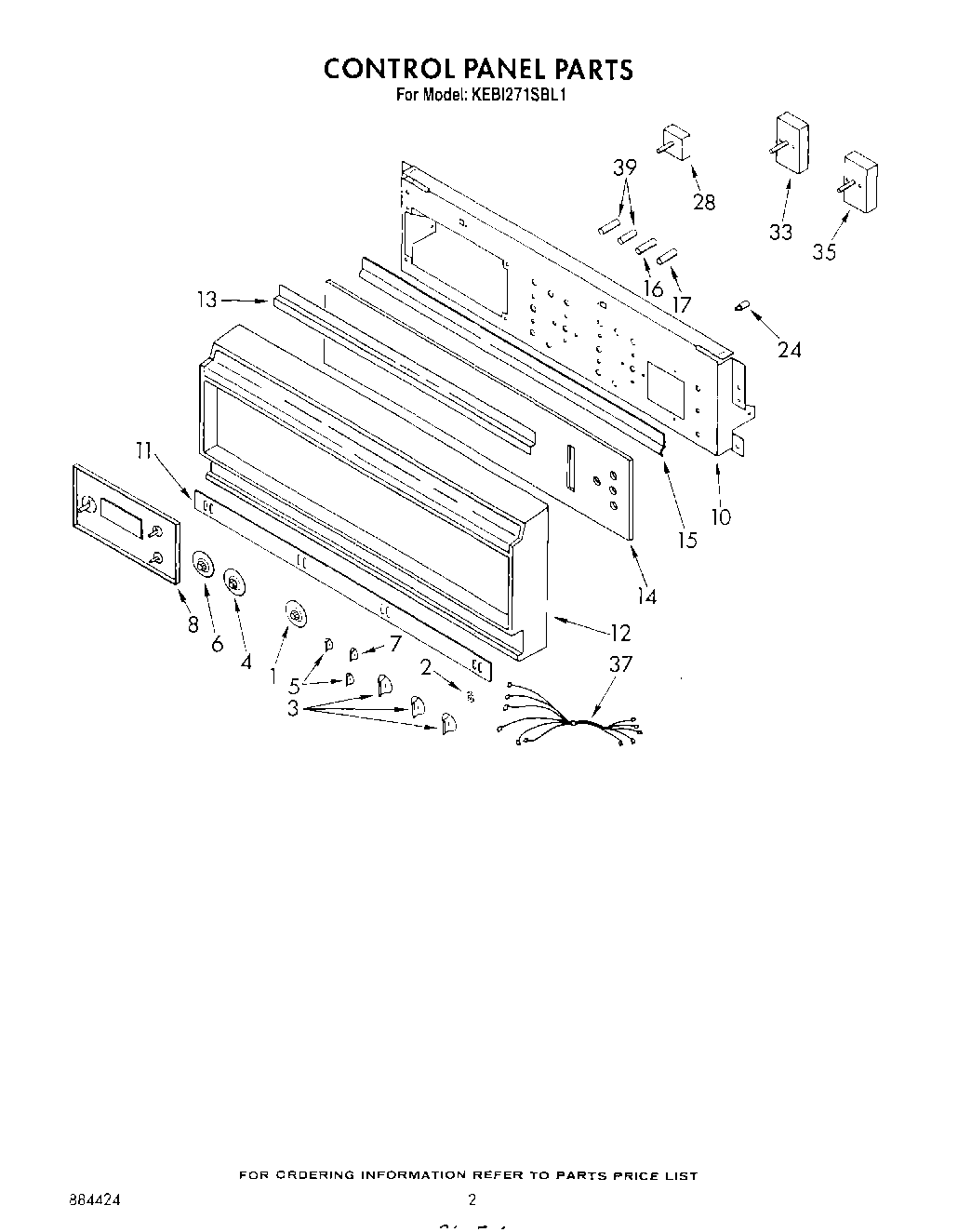

KEBI271SBL1 02 – CONTROL PANEL

Products

PositionProduct
1Disc, Thermostat
2Bezel, Oven Light Switch
3WP4168403 Whirlpool Knob
4Disc, Thermostat (2)
5Knob, Clock (2)
6Selector Disc
7Knob, Clock
8Clock
10Control Mounting Panel
11Vent Insert
12Control Frame
13Insert, Top (Black)
14Control Panel Glass
15Retainer
16Indicator Light,
17Indicator Light, Oven (Lower Oven)
24Oven Light Switch
28Selector Switch
33Thermostat, Upper Oven
35Thermostat, Lower Oven
37Wiring Harness, Element (Upper Oven)
39Indicator Light (2)
