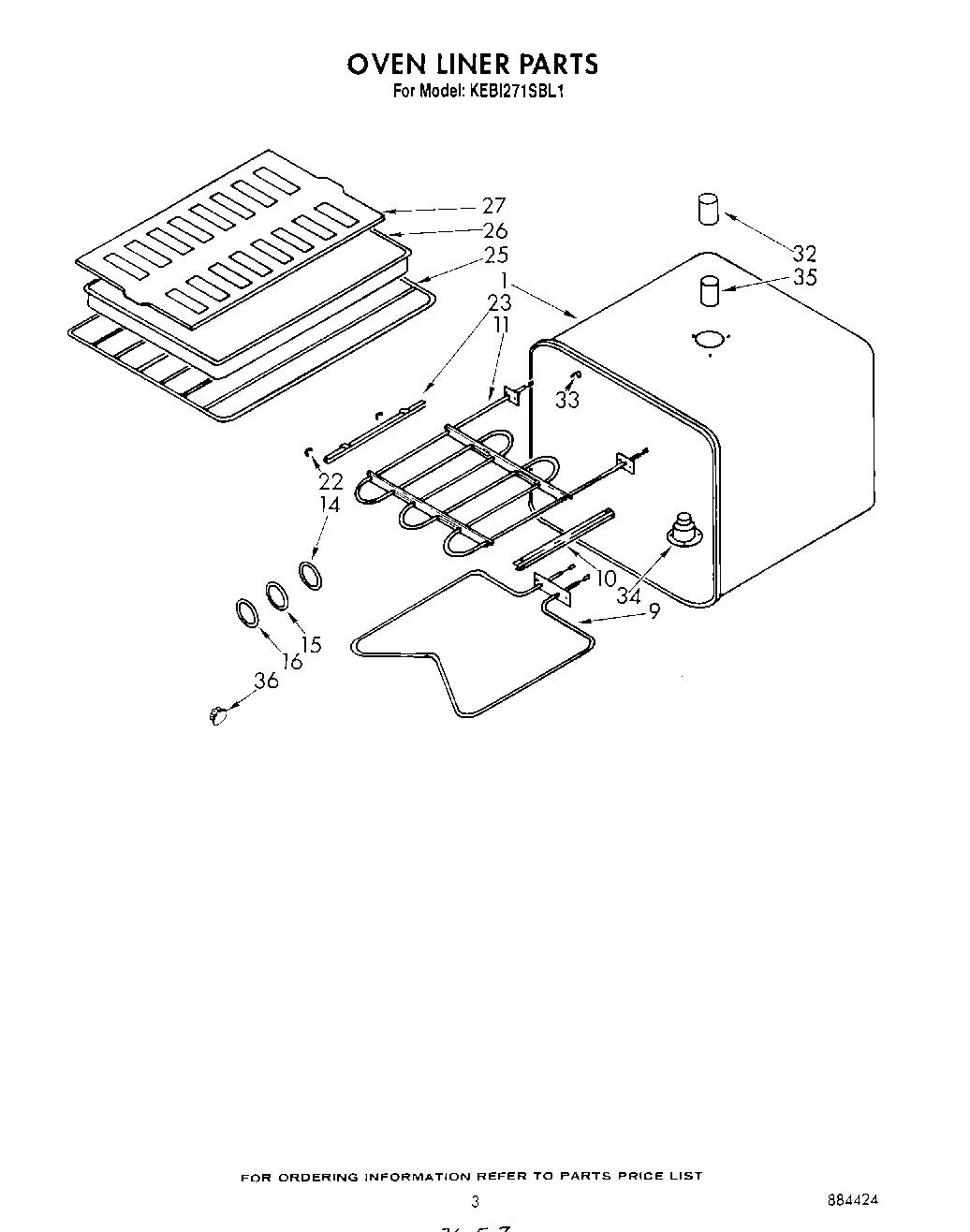

KEBI271SBL1 03 – OVEN LINER

Products

Position	Product
1	Liner, Oven
9	WP3177420 Whirlpool Bake Element
10	Broiler Element Support-Right
11	Element, Broil
14	Light Lens Gasket
15	Light Lens
16	Light Lens Retainer
22	Clip, Thermostat Bulb
23	Broiler Element Support-Left
25	Oven Rack
26	4396923 Whirlpool Broil Pan Set Gray Porcelain
32	Vent Tube Extension
33	Cover, Cap Tube
34	Smoke Eliminator (Upper Oven)
35	Smoke Eliminator (Vent Tube Lower Oven)
36	Plug Button (3/8`` Hole)
36	Plug Button (5/8`` Hole)
36	Plug Button (3/4`` Hole)
