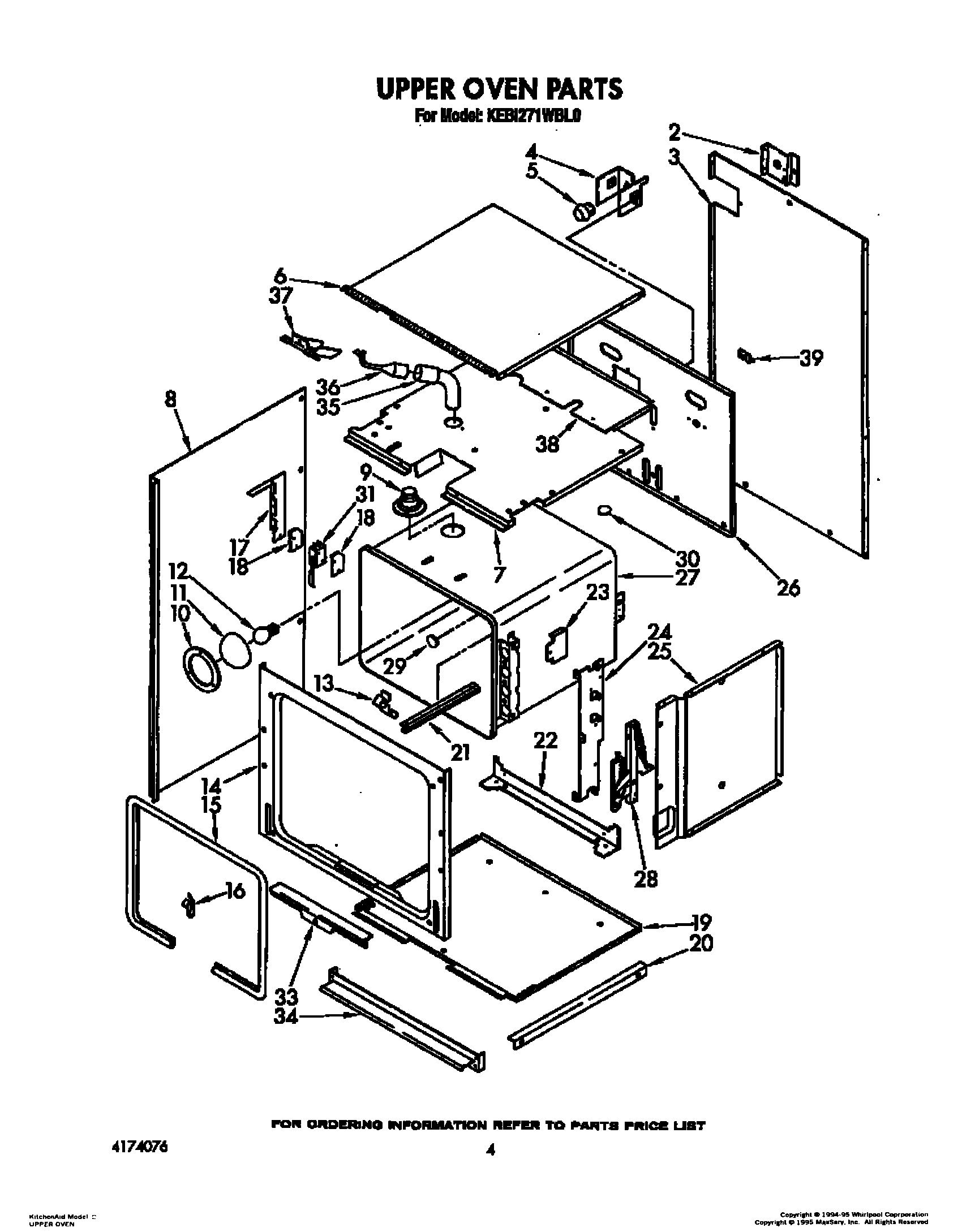

KEBI271WBL0 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Housing, Light
5	Socket, Light
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Smoke Eliminator (Upper Oven)
10	Retainer, Glass
11	Light Lens
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Broiler Element Support-Right
21	Screw (3)
22	Support, Oven
23	Shield, Radiation
24	Screw, Black (2)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Screw (2)
31	Nut (2)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Black Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Insulation, Back
39	Insulation, Oven
39	Screw
39	Cover, Cap Tube
