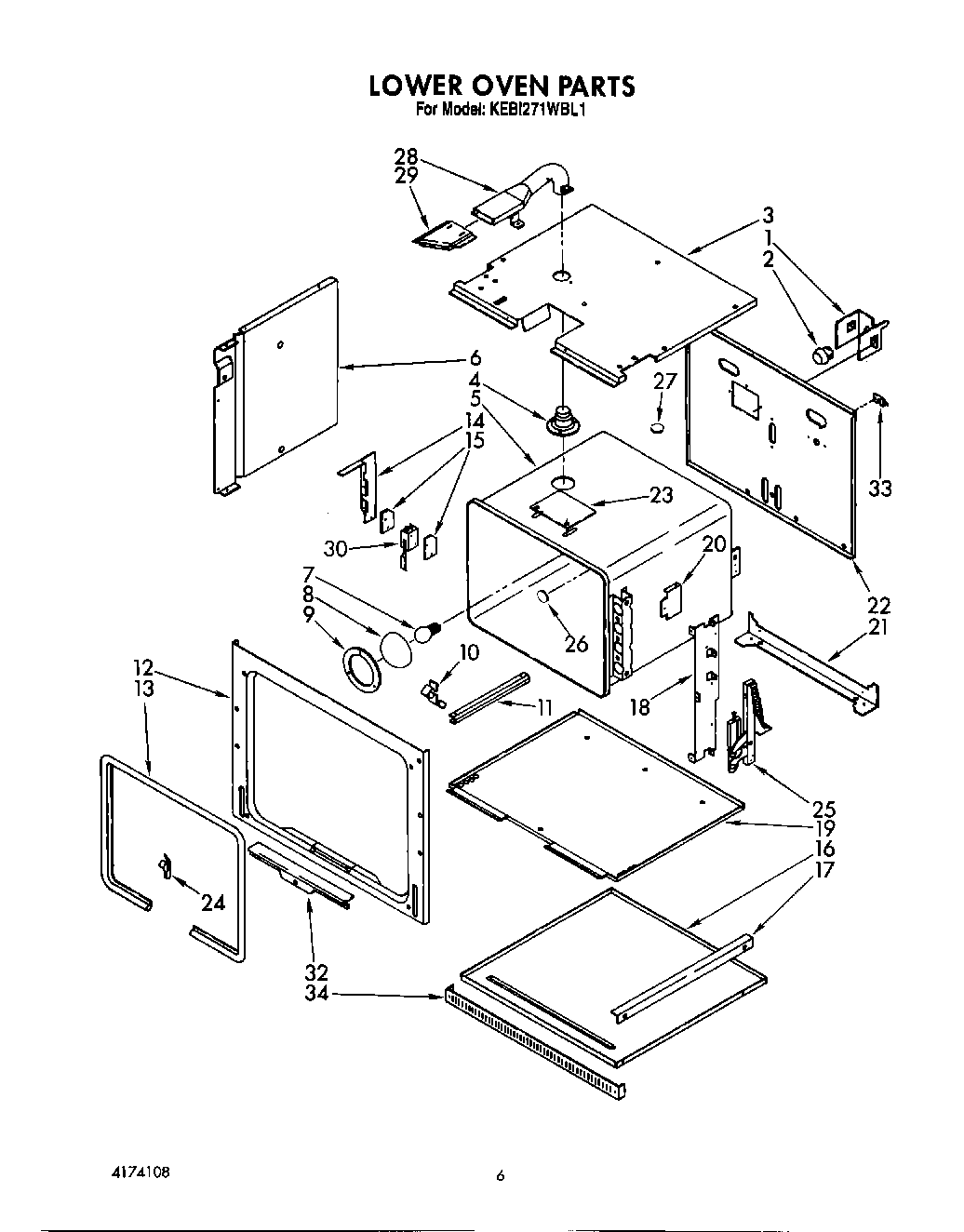

KEBI271WBL1 04 – LOWER OVEN

Products

Position	Product
1	Housing, Light
2	Socket, Light
3	Top, Module
4	Smoke Eliminator (Vent Tube Lower Oven)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
8	Light Lens
9	Retainer, Glass
10	98005642 Whirlpool Clip
11	Broiler Element Support-Right
12	Frame, Front (White Model)
12	Screw (4)
13	Seal, Door
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Cover, Latch Mtg.
23	Screw (3)
24	Clip, Oven Seal
25	Hinge, Door
25	Screw (6)
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	WP90767 Whirlpool Screw
29	Tube, Vent
30	Switch, Door
30	Screw (2)
30	Nut (2)
32	Retainer, Seal
32	SCREW
33	Cover, Cap Tube
33	Screw
34	Insulation, Oven
34	Vent, Lower Trim (Black)
34	Insulation, Back
