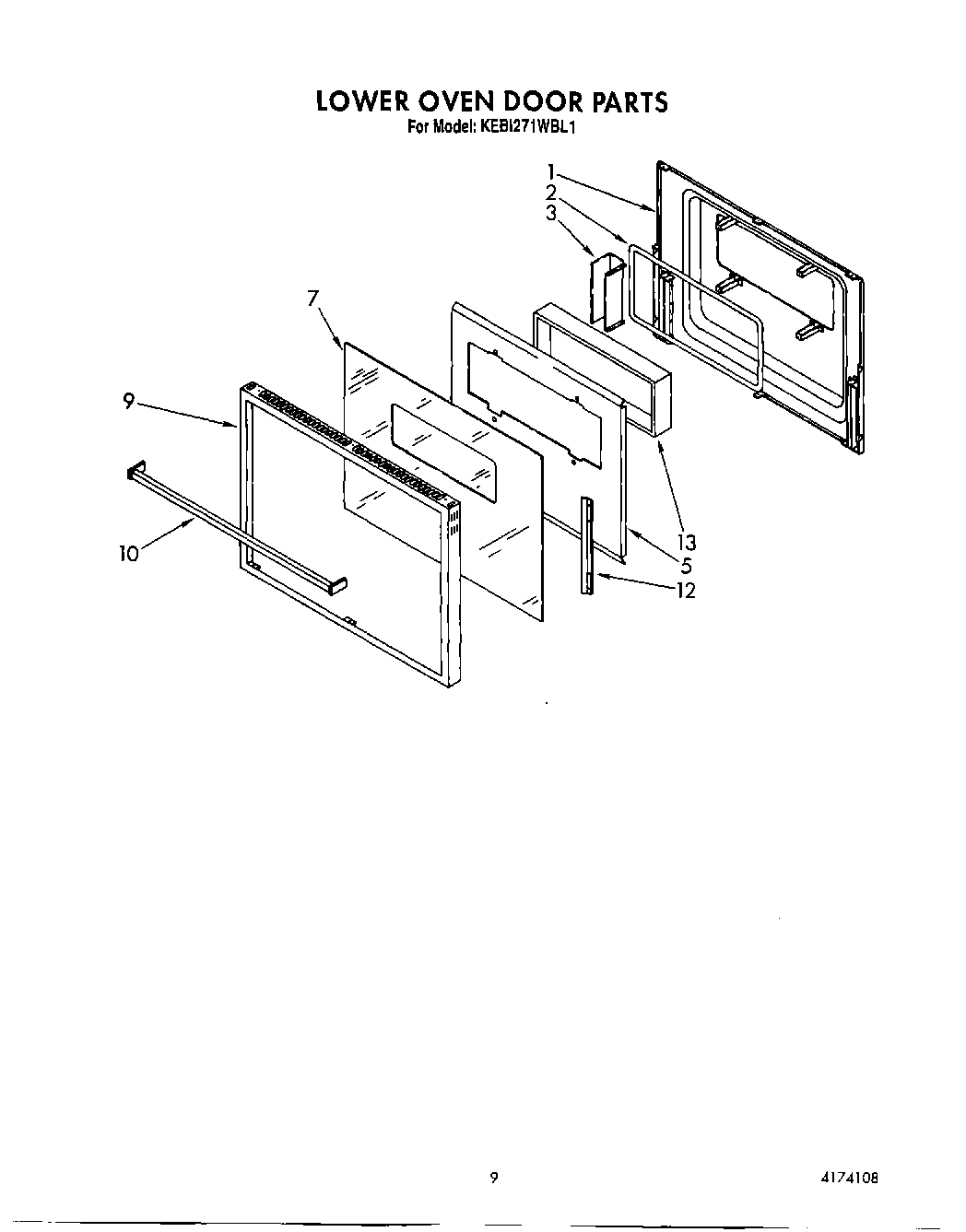

KEBI271WBL1 06 – LOWER OVEN DOOR

KEBI271WBL1 06 – LOWER OVEN DOOR

Written by

in

KEBI271WBL1 06 – LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
5WP90767 Whirlpool Screw
5Insulation, Retainer
7Glass, Door
9Frame, Door
10Handle, Door
10Handle, Door (Screw)
12Screw (6)
12Retainer, Glass
13Window Package
