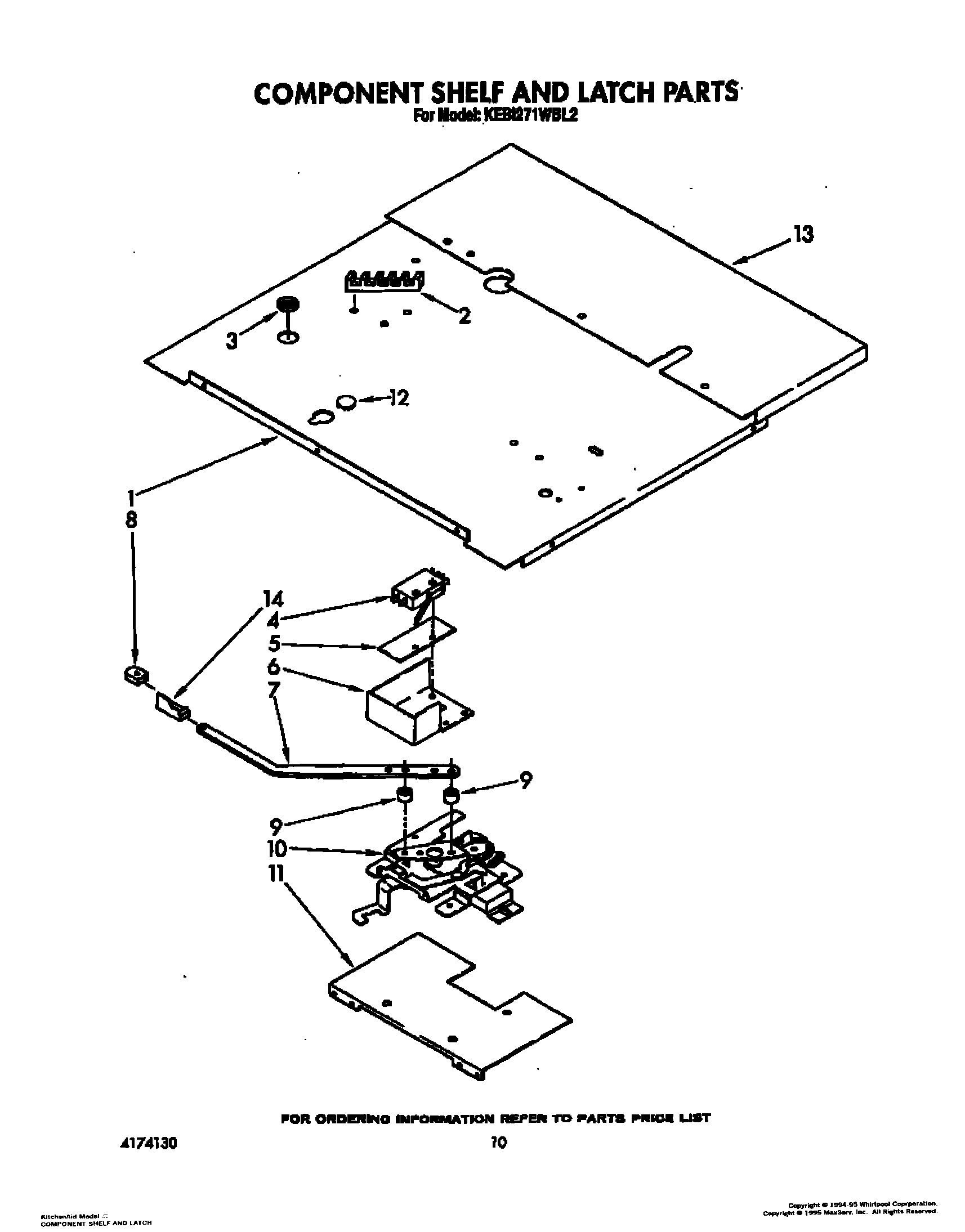

KEBI271WBL2 07 – COMPONENT SHELF AND LATCH

KEBI271WBL2 07 – COMPONENT SHELF AND LATCH

Written by

in

KEBI271WBL2 07 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
1WP90767 Whirlpool Screw
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Switch, Latch
4Screw
5Insulator, Switch
6Screw,
6Guard, Latch
7Screw (2)
7Handle, Latch
7Handle (Black)
7Handle, Latch (Screw (2))
8Knob, Latch Handle
9Spacer, Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13WP3177991 Whirlpool Screw
14Support, Latch
14WP488234 Whirlpool Air Conditioner Screw
