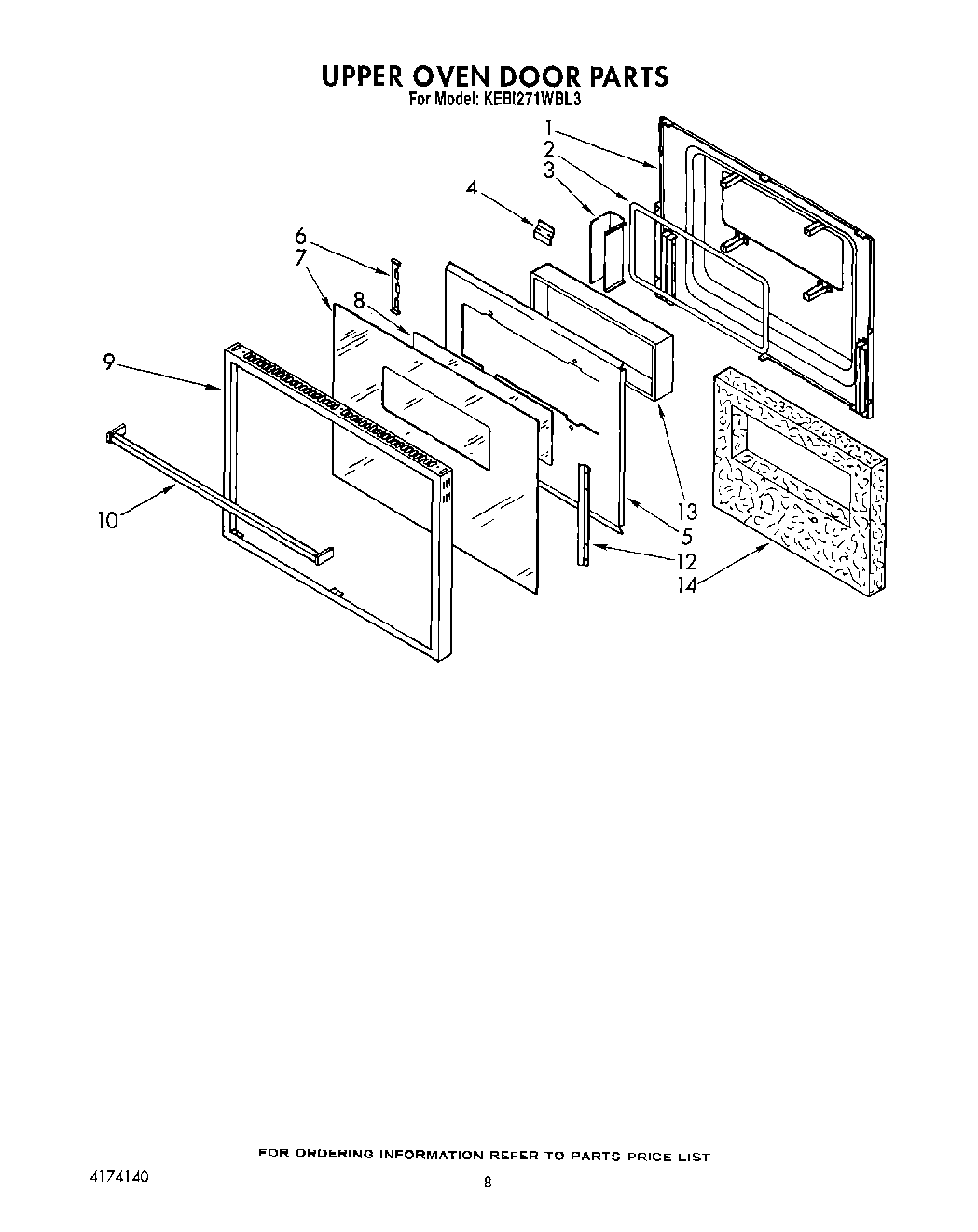

KEBI271WBL3 05 – UPPER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door (Screw)
10Handle, Door
12Screw (6)
12Retainer, Glass
13Window Package
14Insulation, Door
