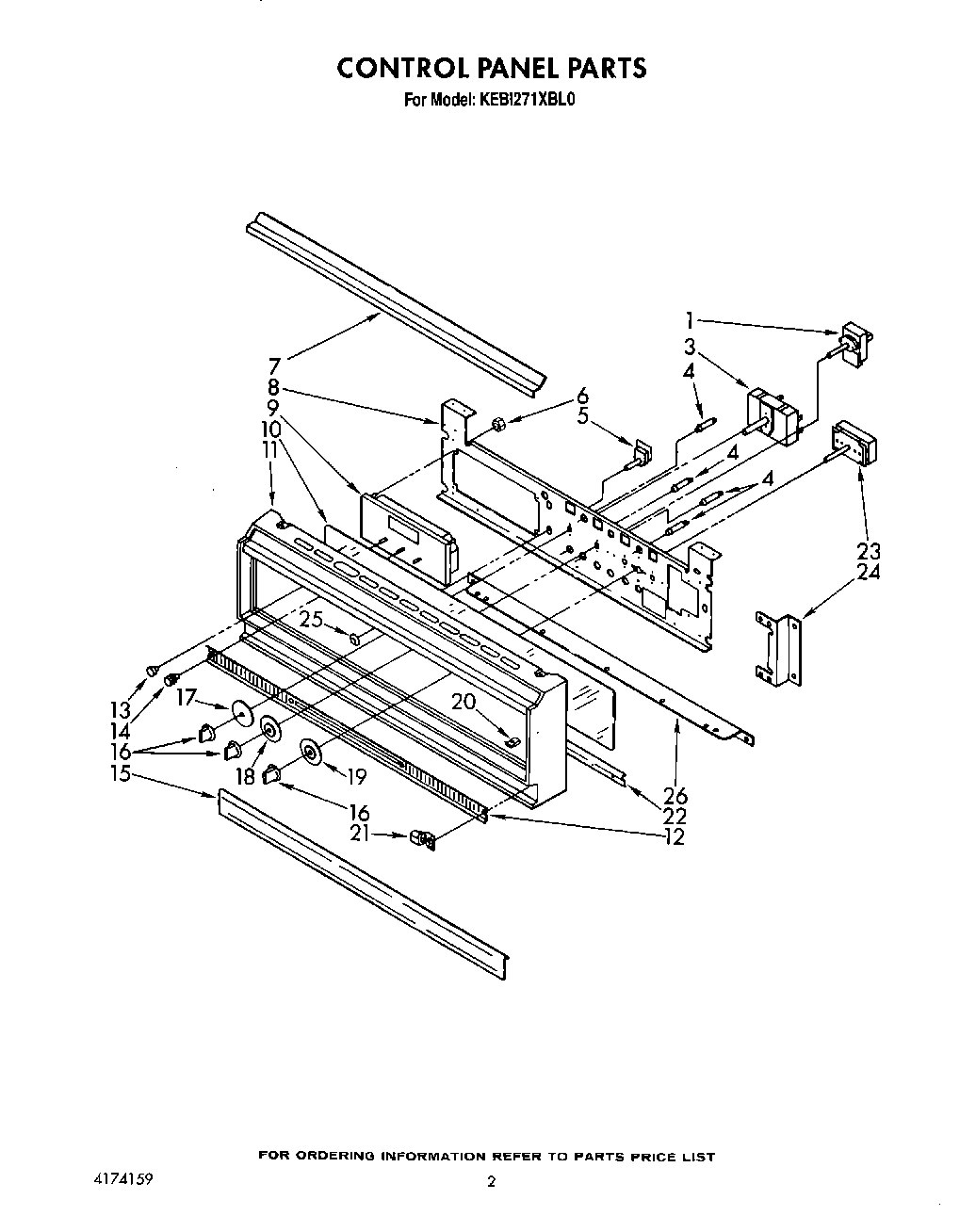

KEBI271XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3178195
	Repair Parts List
	WPL LIT3178202
	WPL LIT3181350
1	Thermostat, upper
3	Switch, Selector
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top (Black)
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel
11	Frame, Control Panel (Black)
12	Insert, Vent
13	Knob, Timer (2)
14	Knob, Timer
15	Handle (Black)
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
19	Disc, Thermostat (Standard Clean)
20	nut (3)
21	Screw (5)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Screw (6)
22	Retainer
23	Screw (2)
23	Thermostat, Lower
23	WP486579 Whirlpool Air Conditioner Screw
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
