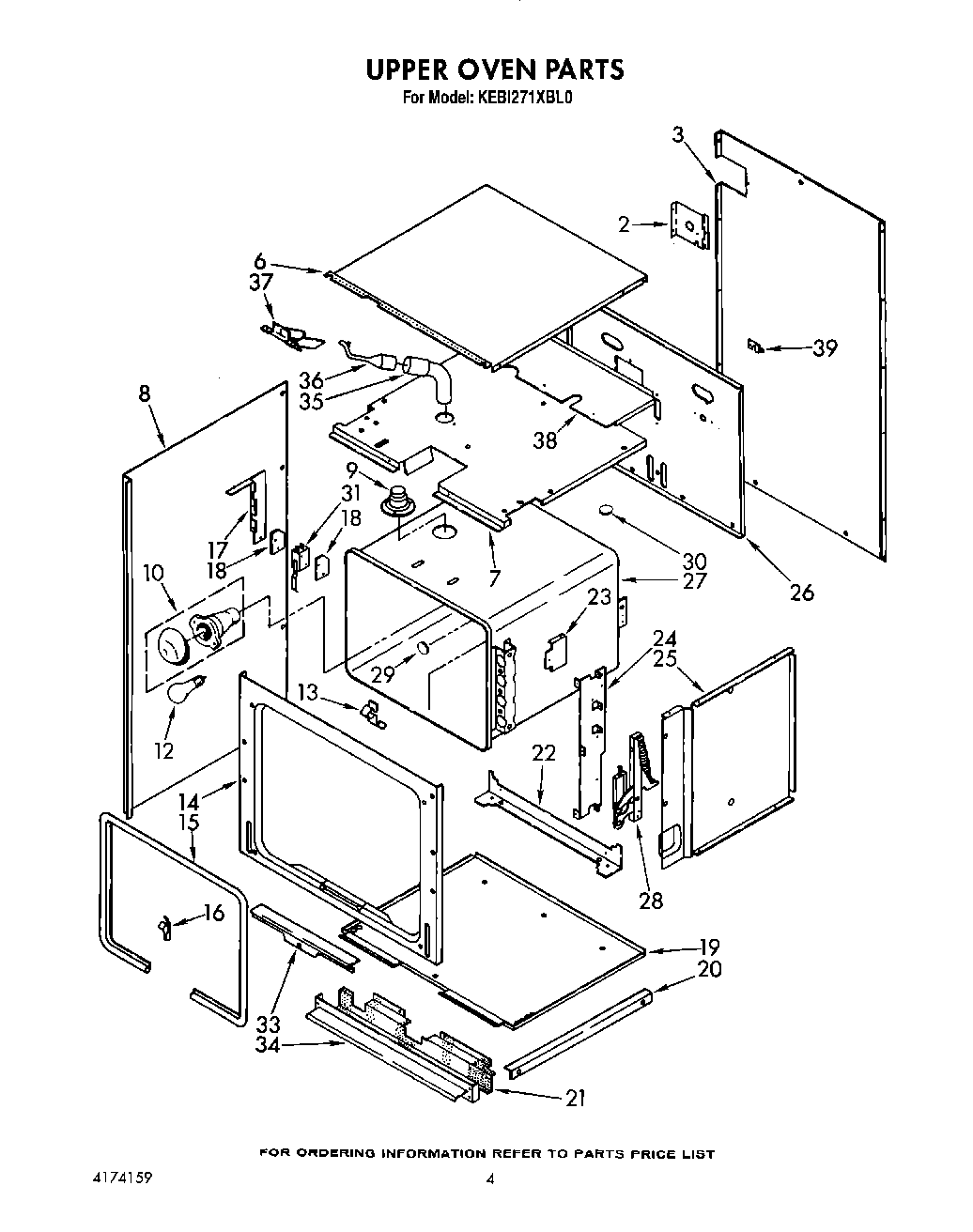

KEBI271XBL0 03 – UPPER OVEN, OPTIONAL

KEBI271XBL0 03 – UPPER OVEN, OPTIONAL

Written by

in

KEBI271XBL0 03 – UPPER OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screen, Wire Mesh
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Switch, Door
31	Nut (2)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Wire (14 Ga. 150 c Green)
39	Wire (14 Ga. 150 c Brown)
39	242831 Whirlpool Oven Wire
39	Wire (14 Ga. 150 c Blue)
39	Cover, Cap Tube
39	Wire (14 Ga. 150 c Orange)
39	WPL 3171507
39	Wire (14 Ga. 150 c Yellow)
39	Wire (14 Ga. 200 c Brown)
39	1
39	WPL 350806
39	WPL 591014
39	WP261869 Whirlpool Microwave Paint
39	WPL 832985
39	18 Ga. 80~c Rating (Red)
39	Wire (12 Ga. 150 c Black)
39	Rotisserie Kit
39	Screw
39	Insulation, Back
39	Paint, Spray (13 Oz.) (Platinum)
39	Toast
39	Golden Harvest (Uncut)
39	Golden Harvest
39	72113 Whirlpool Touch-Up Paint
39	Almond (Uncut)
39	Leveler (Thinner)
39	WP72107 Whirlpool Touchup
39	799344 Whirlpool Refrigerator Paint
39	72017 Whirlpool Appliance Touch-Up Paint White
39	350956 Whirlpool Spray Assembly
39	Enamal, Toast (1 Qt. Uncut)
39	Platinum (Uncut)
39	Insulation, Oven
39	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
39	WP482338 Whirlpool Refrigerator Adhesive
39	72032 Whirlpool Touch Up Paint Black
39	285006 Whirlpool Spray
39	Wire, 25“ Roll (White 14 GA.)
39	Wire, 25` Roll (Red 14 Ga.)
39	Wire, 25` Roll (Black 14 Ga.)
39	WPL 799832
39	350942 Whirlpool Spray Paint
39	WPL 72112
39	350930 Whirlpool White Spray Paint
