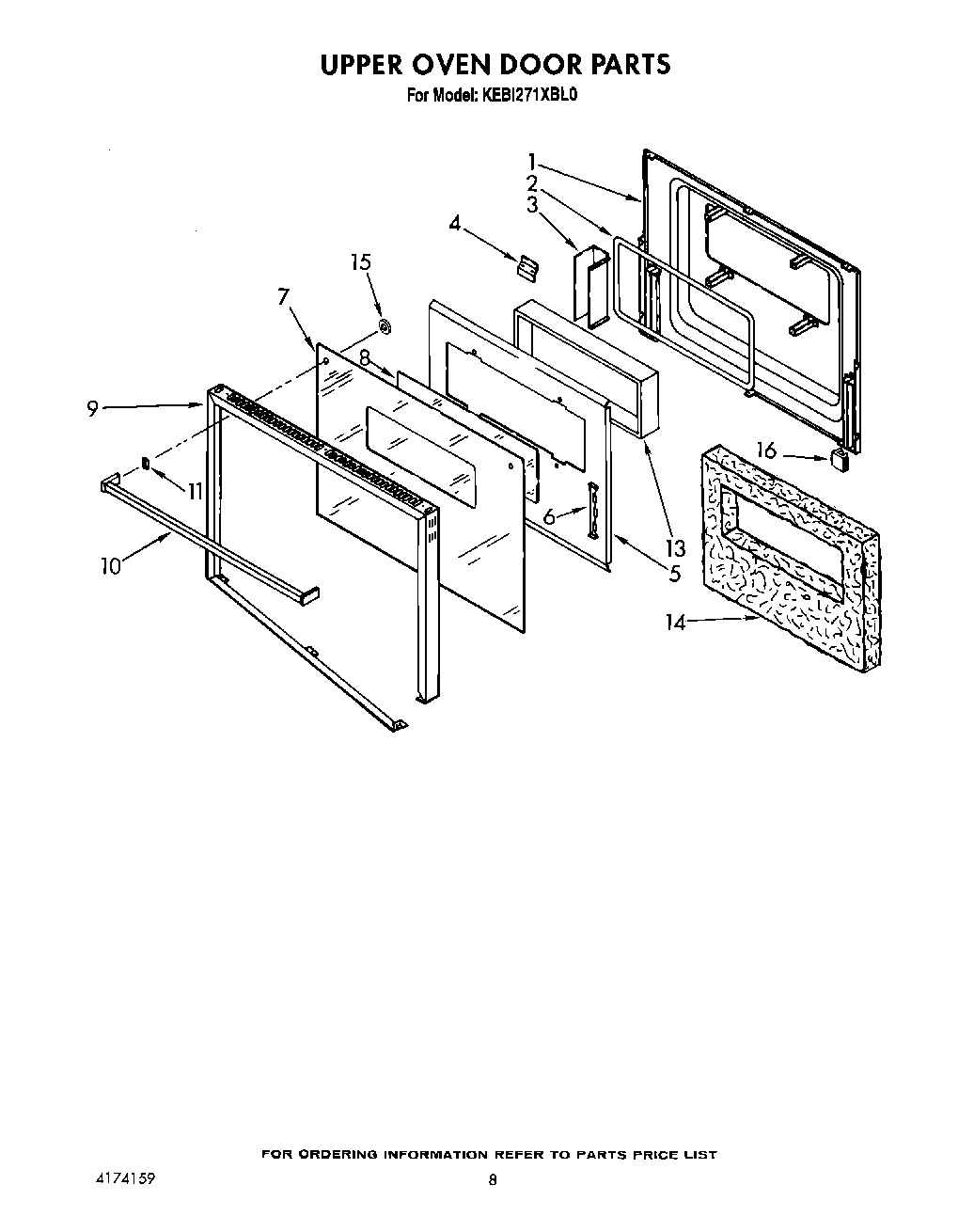

KEBI271XBL0 05 – UPPER OVEN DOOR

KEBI271XBL0 05 – UPPER OVEN DOOR

Written by

in

KEBI271XBL0 05 – UPPER OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door (Black)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Black)
10	Screw
11	Spacer (2)
12	Retainer, Glass
13	Window Package
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
