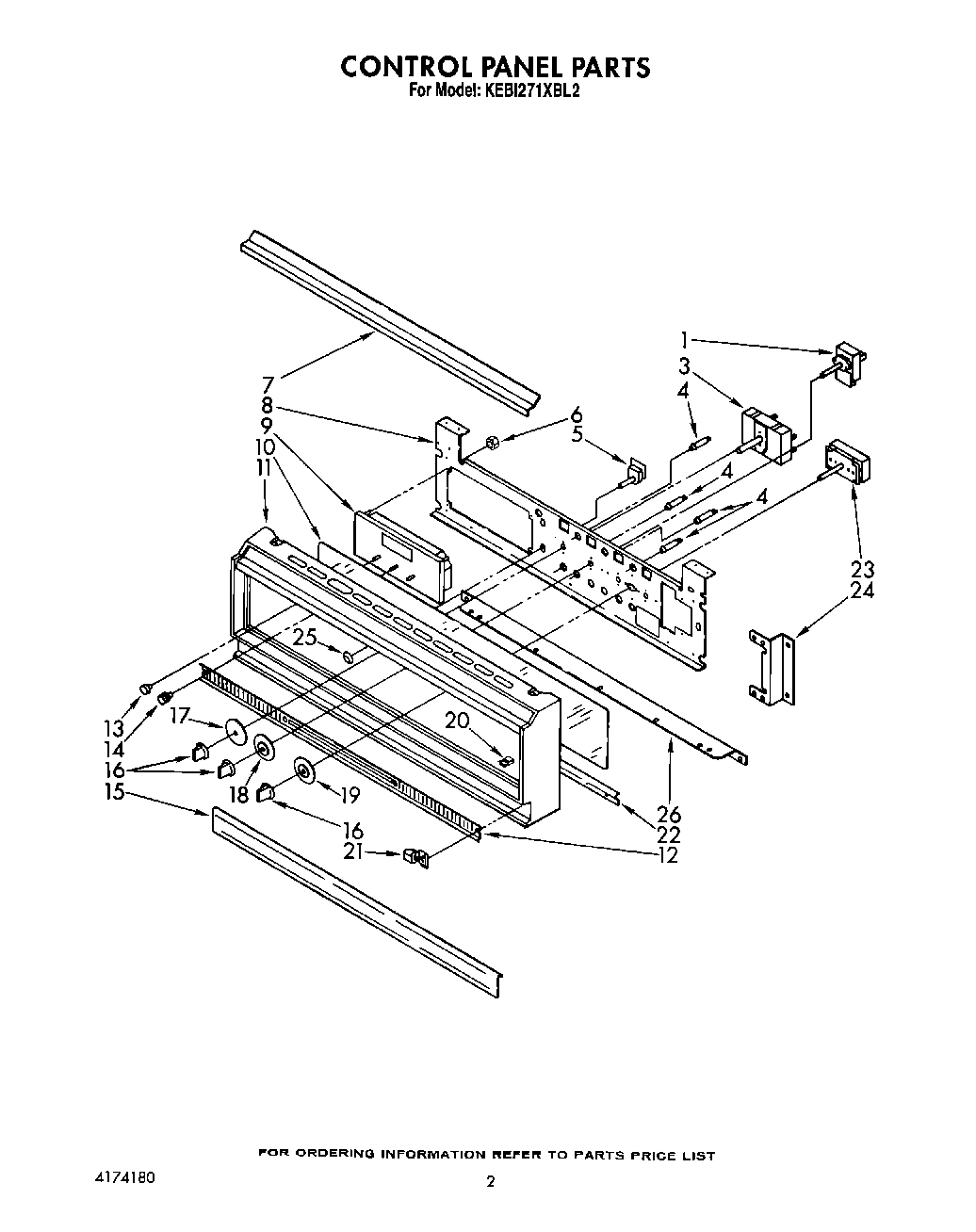

KEBI271XBL2 02 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T12:34:41+00:00KEBI271XBL2 02 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| WPL LIT3185203 |
| WPL LIT3181350 |
| WPL LIT3178195 |
| 1 | Thermostat, upper |
| 3 | Switch, Selector |
| 4 | Indicator Light, Oven (Lower Oven) |
| 5 | Switch, Oven Light |
| 6 | Nut, Timer (4) |
| 7 | Insert, Top (Black) |
| 8 | Bracket, Control |
| 9 | Timer, Electronic |
| 10 | Glass, Control Panel |
| 11 | Frame, Control Panel (Black) |
| 12 | Insert, Vent |
| 13 | Knob, Timer (2) |
| 14 | Knob, Timer |
| 15 | Handle (Black) |
| 16 | Knob, Control |
| 17 | Disc, Selector |
| 18 | Disc, Thermostat (Self Clean) |
| 19 | Disc, Thermostat (Standard Clean) |
| 20 | nut (3) |
| 21 | Door, Latch Handle (Screw (2)) |
| 21 | Hinge, Door (2) |
| 22 | Retainer |
| 22 | Screw (6) |
| 23 | Thermostat, Lower |
| 23 | Screw (2) |
| 23 | WP486579 Whirlpool Air Conditioner Screw |
| 24 | Bracket, Control Panel |
| 25 | Bezel, Oven Light Switch |
| 26 | Support, Frame |
| 26 | WP3177991 Whirlpool Screw |
