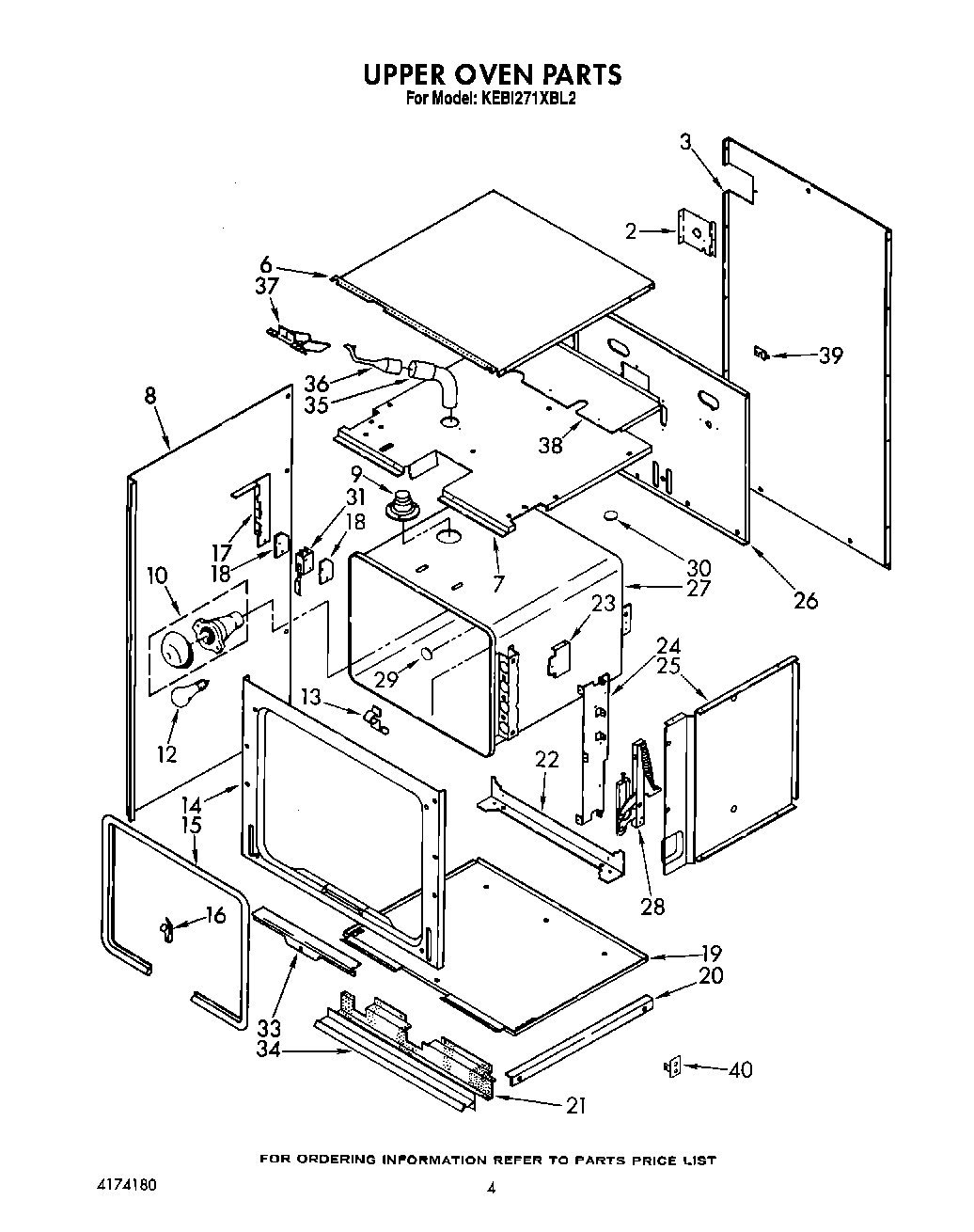

KEBI271XBL2 03 – UPPER OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screen, Wire Mesh
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (Black Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
39	Screw
40	18 Ga. 80~c Rating (Red)
40	Insert, Middle Vent Trim
40	Wire (12 Ga. 150 c Black)
40	Wire (14 Ga. 150 c Orange)
40	WP261869 Whirlpool Microwave Paint
40	Wire (14 Ga. 150 c Green)
40	WPL 3171507
40	Wire (14 Ga. 200 c Brown)
40	WPL 832985
40	Wire (14 Ga. 150 c Blue)
40	Rotisserie Kit
40	Wire (14 Ga. 150 c Brown)
40	WPL 350806
40	1
40	Wire (14 Ga. 150 c Yellow)
40	Screw
40	WPL 591014
40	242831 Whirlpool Oven Wire
40	Insulation, Back
40	Paint, Spray (13 Oz.) (Platinum)
40	Toast
40	Golden Harvest (Uncut)
40	Golden Harvest
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	Almond (Uncut)
40	Leveler (Thinner)
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350956 Whirlpool Spray Assembly
40	Enamal, Toast (1 Qt. Uncut)
40	Platinum (Uncut)
40	Insulation, Oven
40	72113 Whirlpool Touch-Up Paint
40	WP482338 Whirlpool Refrigerator Adhesive
40	72032 Whirlpool Touch Up Paint Black
40	285006 Whirlpool Spray
40	Wire, 25“ Roll (White 14 GA.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25` Roll (Black 14 Ga.)
40	WPL 799832
40	350942 Whirlpool Spray Paint
40	WPL 72112
40	350930 Whirlpool White Spray Paint
