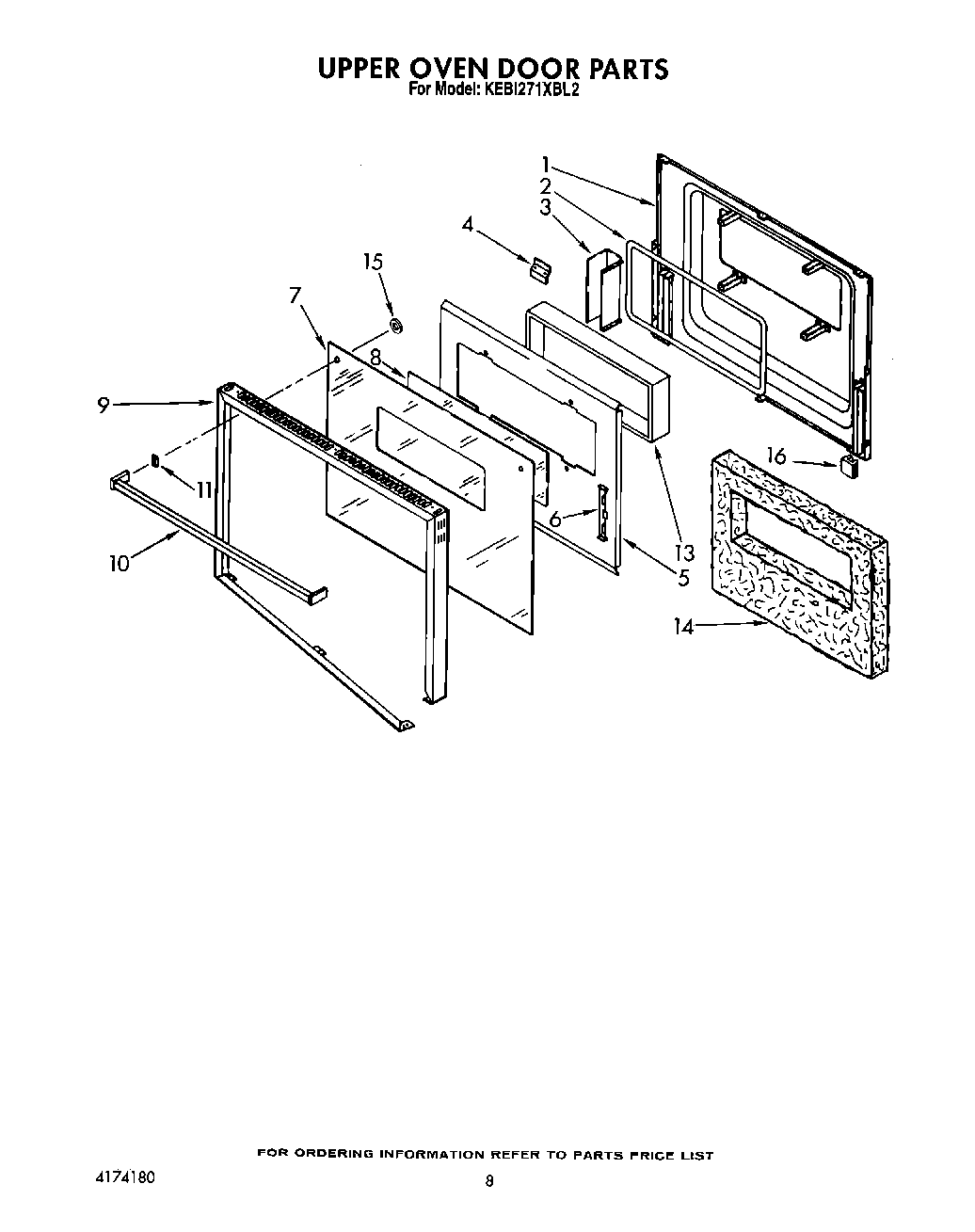

KEBI271XBL2 05 – UPPER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door (Black)
8Glass, Reflective
9Frame, Door
10Handle, Door (Black)
10Screw
11Spacer (2)
12Retainer, Glass
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
