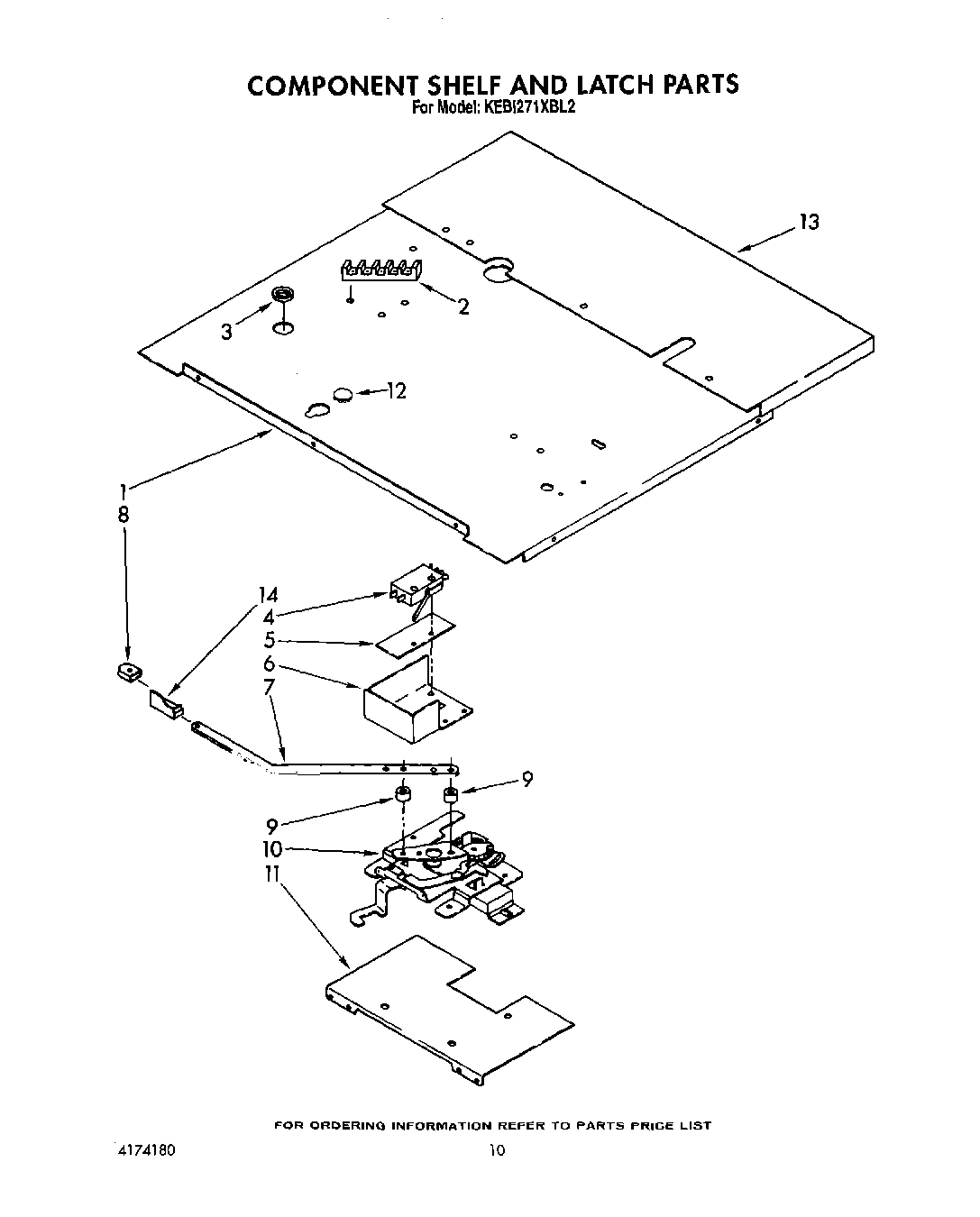

KEBI271XBL2 07 – COMPONENT SHELF AND LATCH

KEBI271XBL2 07 – COMPONENT SHELF AND LATCH

Written by

in

KEBI271XBL2 07 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1WP90767 Whirlpool Screw
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Switch, Latch
4Screw
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
7Handle, Latch (Screw (2))
7Handle (Black)
7Screw (2)
8Knob, Latch Handle
8Screw
9Spacer, Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13WP3177991 Whirlpool Screw
13Extension, Shelf
14WP488234 Whirlpool Air Conditioner Screw
14Support, Latch
