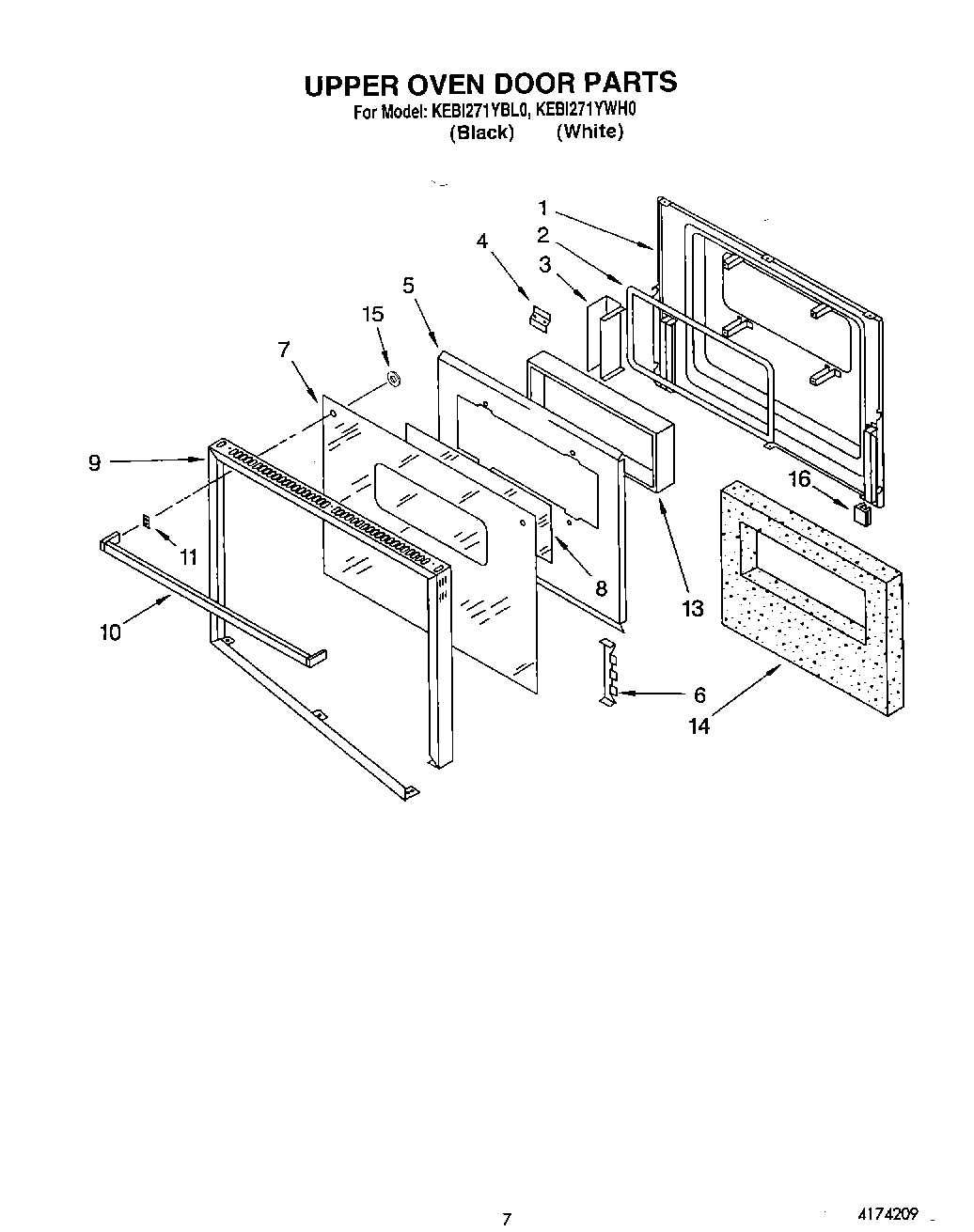

KEBI271YBL0 05 – UPPER OVEN DOOR

Products

Position	Product
1	Vent, Lower Trim (Screw (2))
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	Screw
6	Bracket, Glass Mtg.
7	Glass, Door (Black)
7	Glass, Door (White)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
10	Screw
11	Spacer, Door Handle
13	Window Package
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
